Back-Up Light Bulb: Removal: Sedan

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk side trim of rear portion.
  2. Turn the socket and remove the bulb.

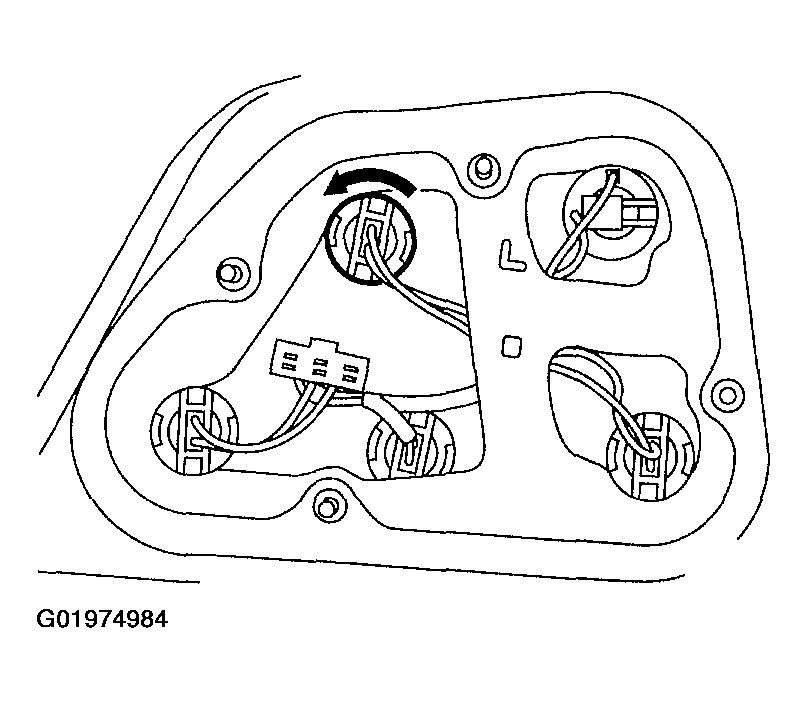

    Fig 1: Turning Socket & Removing Bulb
    G01974984Courtesy of SUBARU OF AMERICA, INC.
