Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower cover. See REMOVAL , Instrument Panel Assembly.
  2. Remove the screws which secure upper column cover to lower column cover.
    Fig 1: Identifying Screws Securing Upper Column Cover To Lower Column Cover
    G01974955Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from combination switch.
  4. Remove the screws which secure switch and remove the switch.

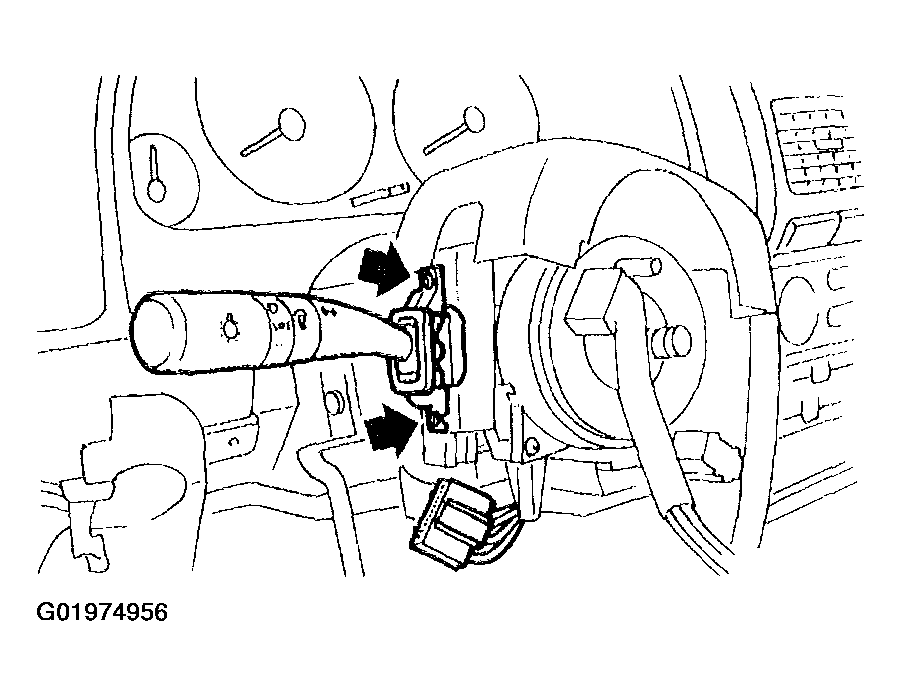

    Fig 2: Removing Screws Securing Combination Switch
    G01974956Courtesy of SUBARU OF AMERICA, INC.
