Front Fog Light Bulb: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fog light assembly. See REMOVAL  , Front Fog Light Assembly.
  2. Remove the back cover.

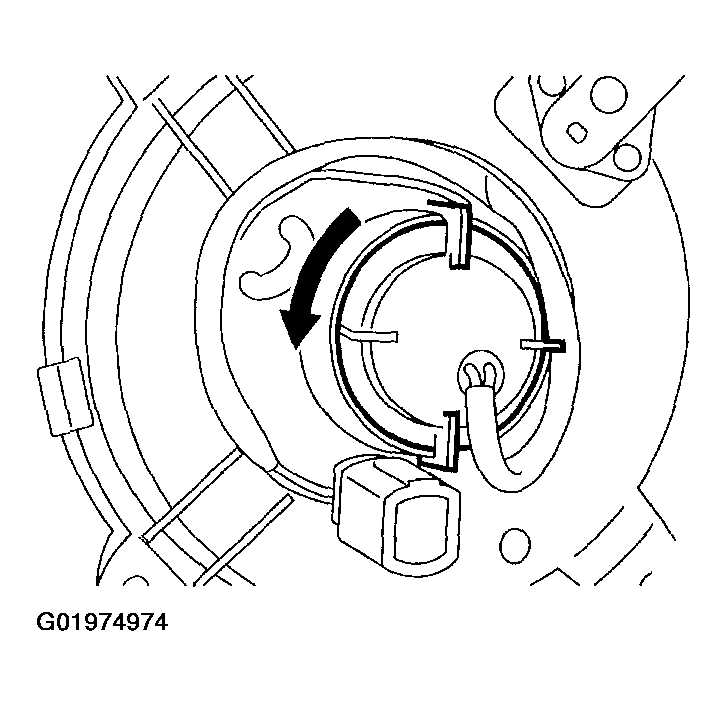

    Fig 1: Removing Back Cover
    G01974974Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the spring retainer then detach the fog light bulb.
