2-4 Brake: Inspection
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Drive plate facing for wear and damage
- Snap ring for wear and spring retainer for deformation
- Lip seal and lathe cut seal ring for damage
- Measure the total end play and adjust to within specifications. < Ref. to ADJUSTMENT , Oil Pump.>

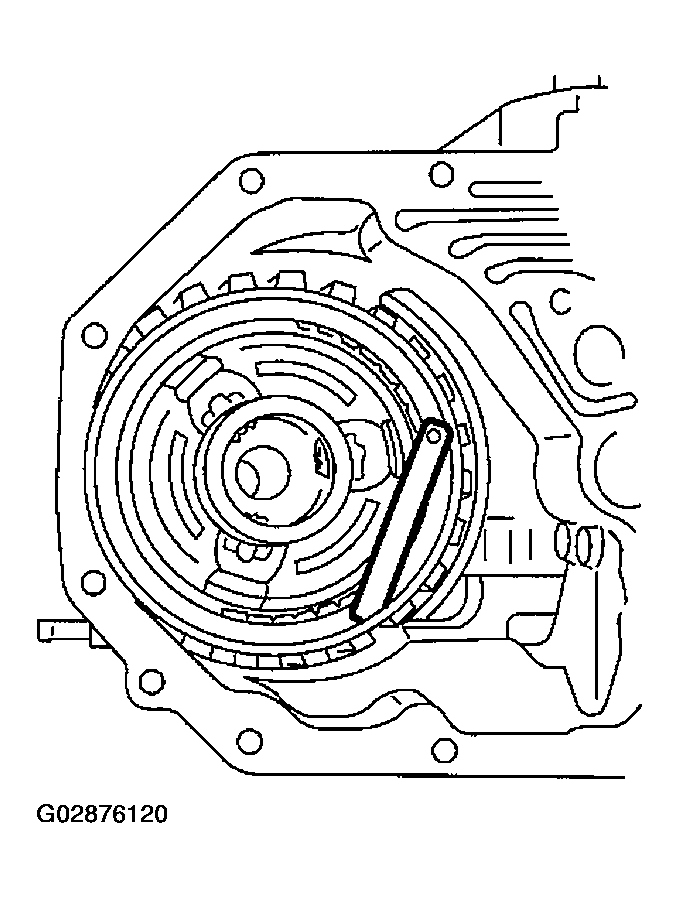

- Inspect the clearance between the retaining plate and the snap ring.
NOTE:
Select a retaining plate with a suitable value from the following table, so that the clearance becomes the standard value.
- Standard value: 0.8 - 1.2 mm (0.031 - 0.047 in)
- Allowable limit: 1.5 mm (0.059 in)
AVAILABLE RETAINING PLATES
| Part No. | Thickness mm (in) |
|---|---|
| 31567AA612 | 5.6 (0.220) |
| 31567AA622 | 5.8 (0.228) |
| 31567AA632 | 6.0 (0.236) |
| 31567AA642 | 6.2 (0.244) |
| 31567AA652 | 6.4 (0.252) |
| 31567AA662 | 6.6 (0.260) |
