Control Valve Body: Assembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new seal ring to piston.

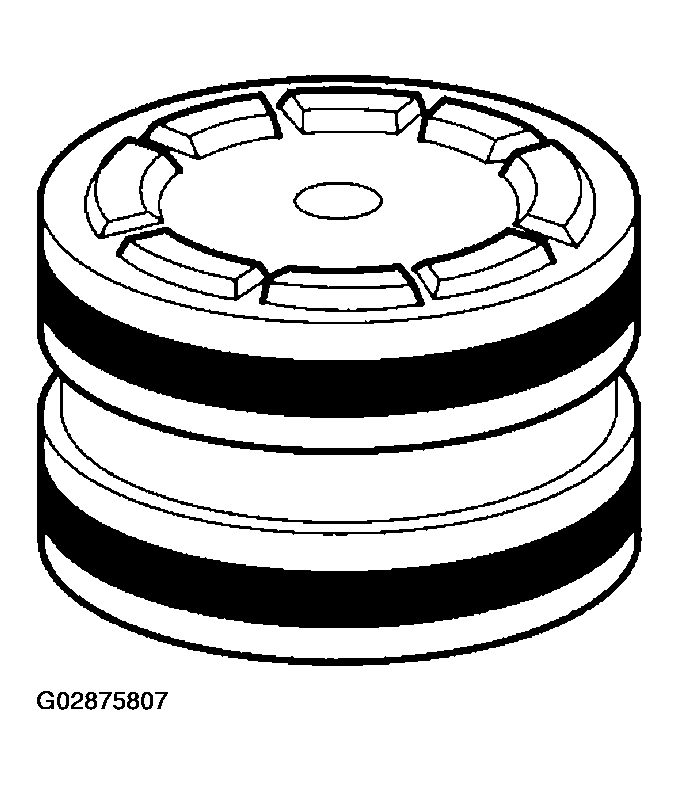

    Fig 1: Installing New Seal Ring To Piston
    G02875807Courtesy of SUBARU OF AMERICA, INC.
  2. Apply ATF to the seal ring.
  3. Insert the piston fully into upper valve body.

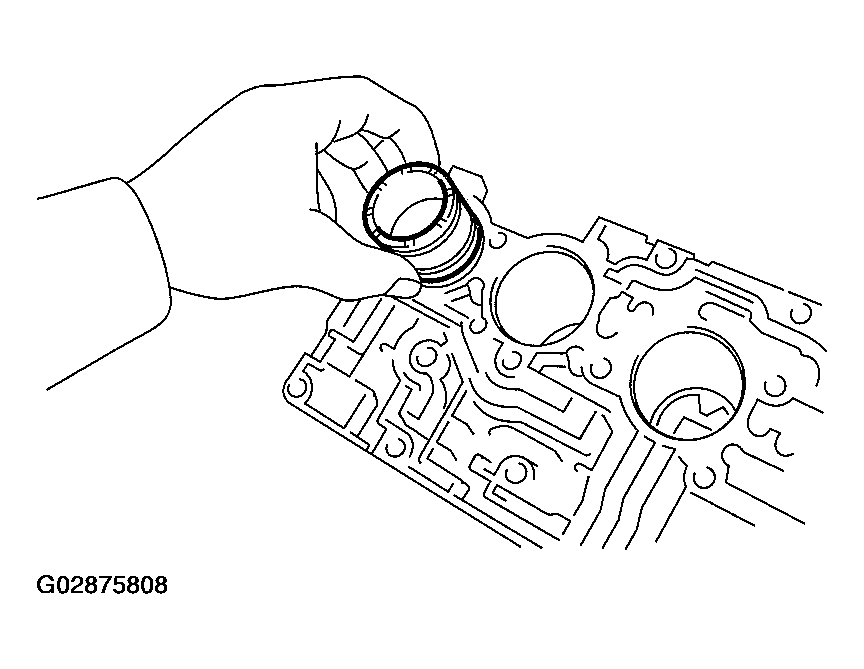

    Fig 2: Inserting Piston Fully Into Upper Valve Body
    G02875808Courtesy of SUBARU OF AMERICA, INC.
  4. Install the spring and four steel balls to specified positions of upper valve body.

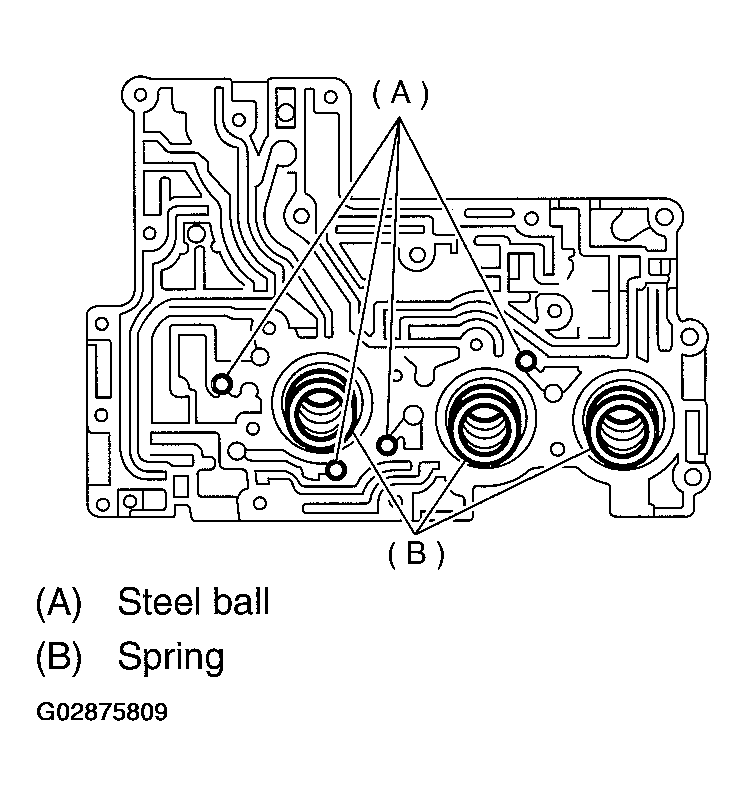

    Fig 3: Installing Spring & Four Steel Balls To Specified Positions Of Upper Valve Body
    G02875809Courtesy of SUBARU OF AMERICA, INC.
  5. Align the hole in side plate with the hole in separator plate, and then install support plate and upper separator plate to middle valve body.
    1. Tightening torque:  8 N.m (0.8 kgf-m, 5.8 ft-lb)

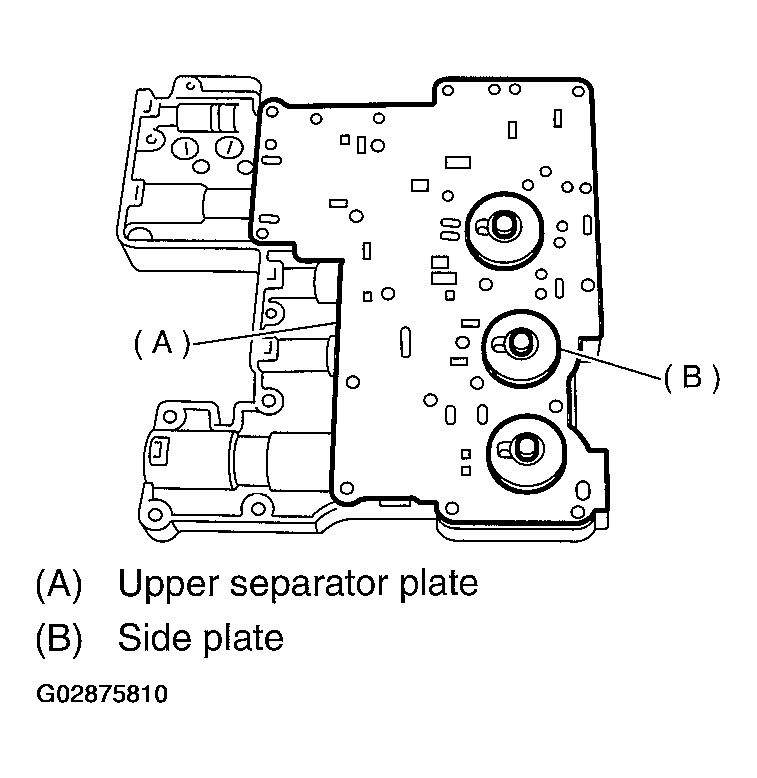

    Fig 4: Installing Support Plate & Upper Separator Plate To Middle Valve Body
    G02875810Courtesy of SUBARU OF AMERICA, INC.
  6. Insert six steel balls in their proper positions to middle valve body.

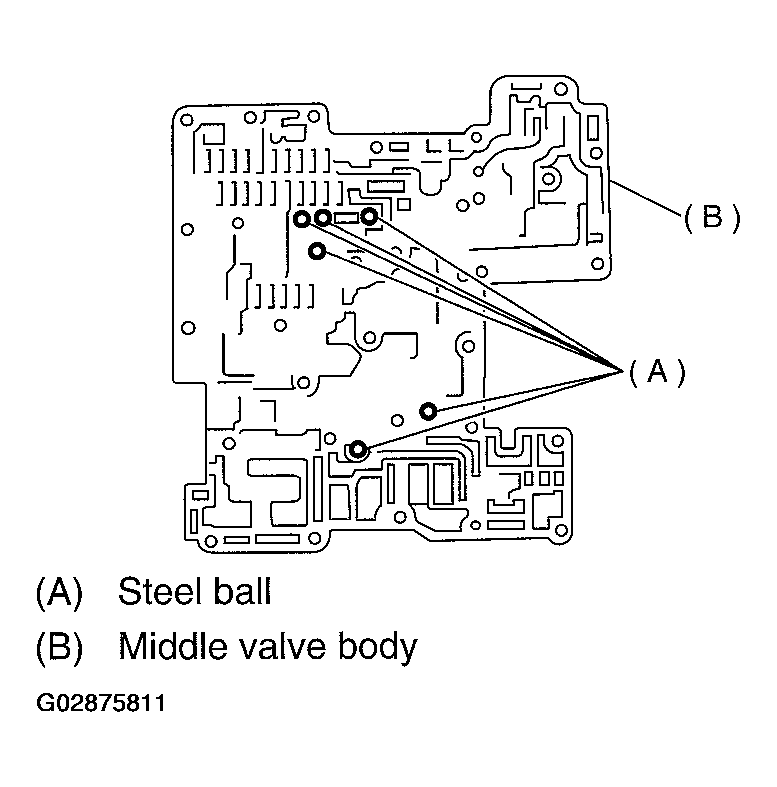

    Fig 5: Inserting Six Steel Balls To Proper Positions To Middle Valve Body
    G02875811Courtesy of SUBARU OF AMERICA, INC.
  7. Install three filters to lower valve body.
    NOTE: Pay attention to the location of filters.

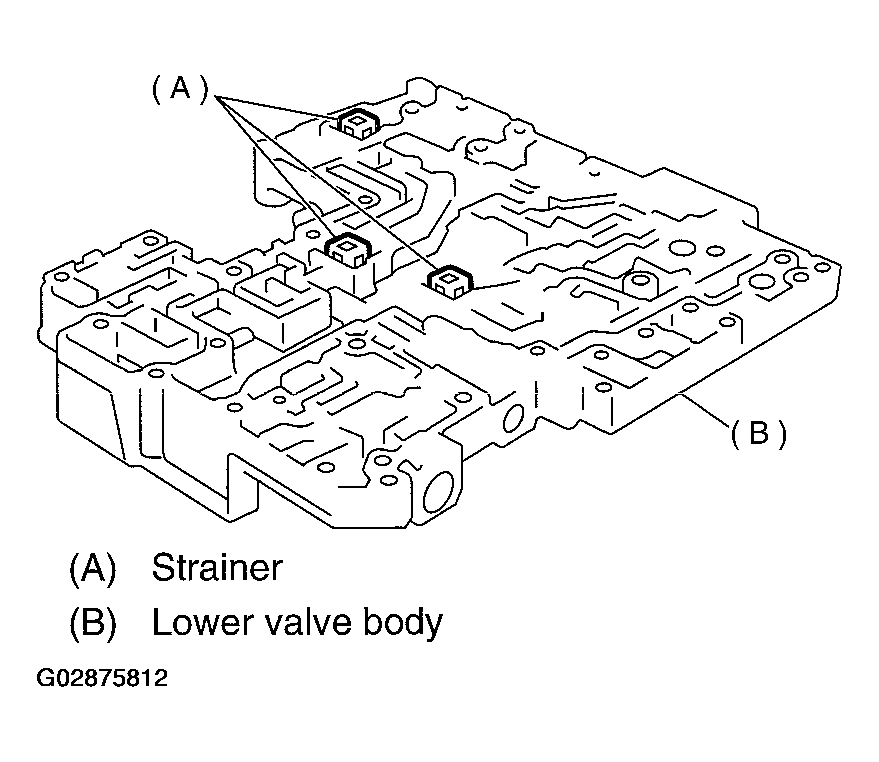

    Fig 6: Installing Filters To Lower Valve Body
    G02875812Courtesy of SUBARU OF AMERICA, INC.
  8. Install lower separate plate to lower valve body.

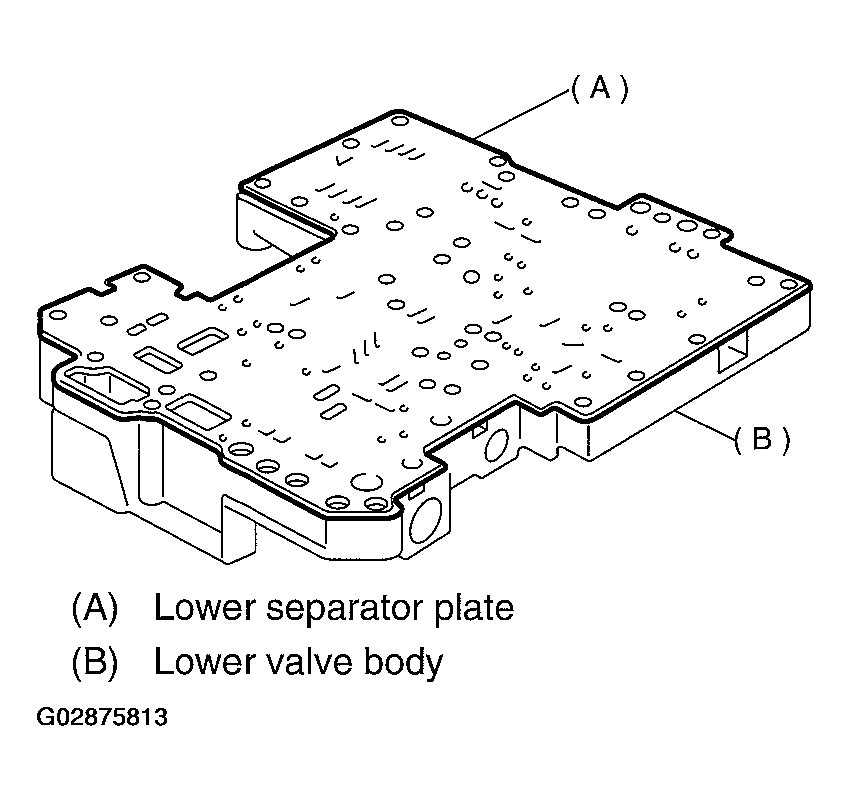

    Fig 7: Installing Lower Separate Plate To Lower Valve Body
    G02875813Courtesy of SUBARU OF AMERICA, INC.
  9. Temporarily assemble valve body.
    NOTE: Be careful not to drop the middle valve body and upper body interior steel ball, or the lower body filter.

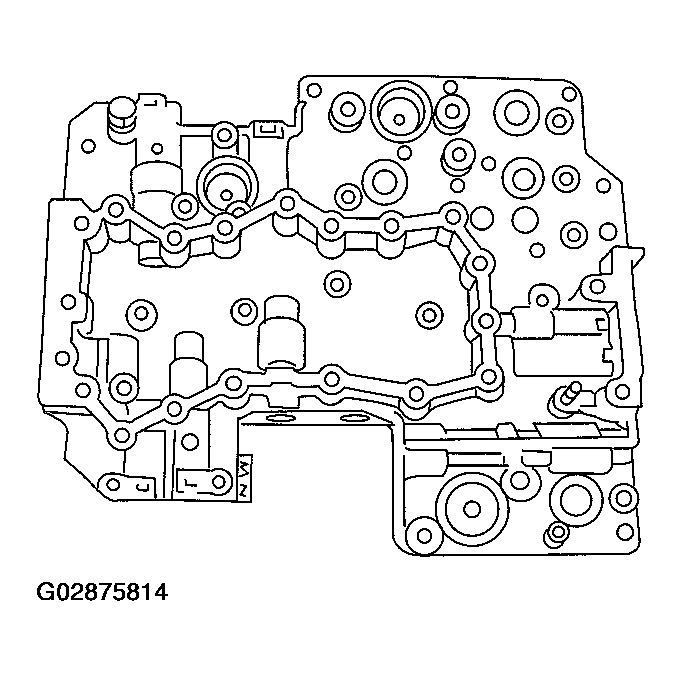

    Fig 8: Temporarily Assemble Valve Body
    G02875814Courtesy of SUBARU OF AMERICA, INC.
  10. Tighten bolts.
    NOTE: Install the bolts (D) from upper valve body side.
    1. Tightening torque:  8 N.m (08 kgf-m, 5.8 ft-lb)

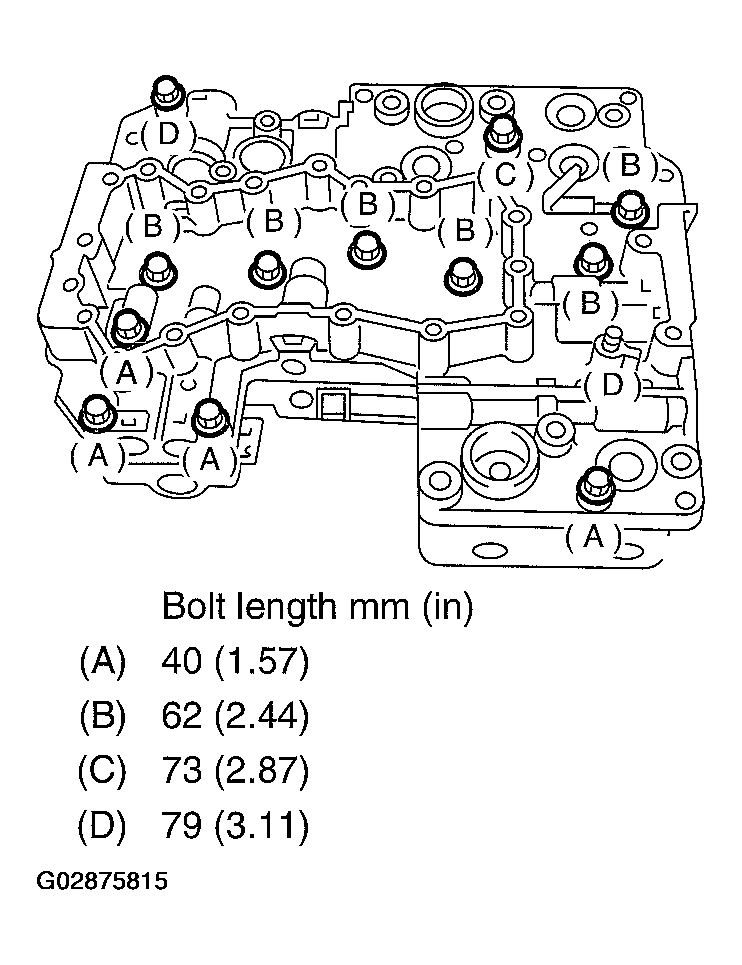

      Fig 9: Tightening Bolts
      G02875815Courtesy of SUBARU OF AMERICA, INC.
  11. Install the sensor, solenoids and duty solenoids to specified positions.

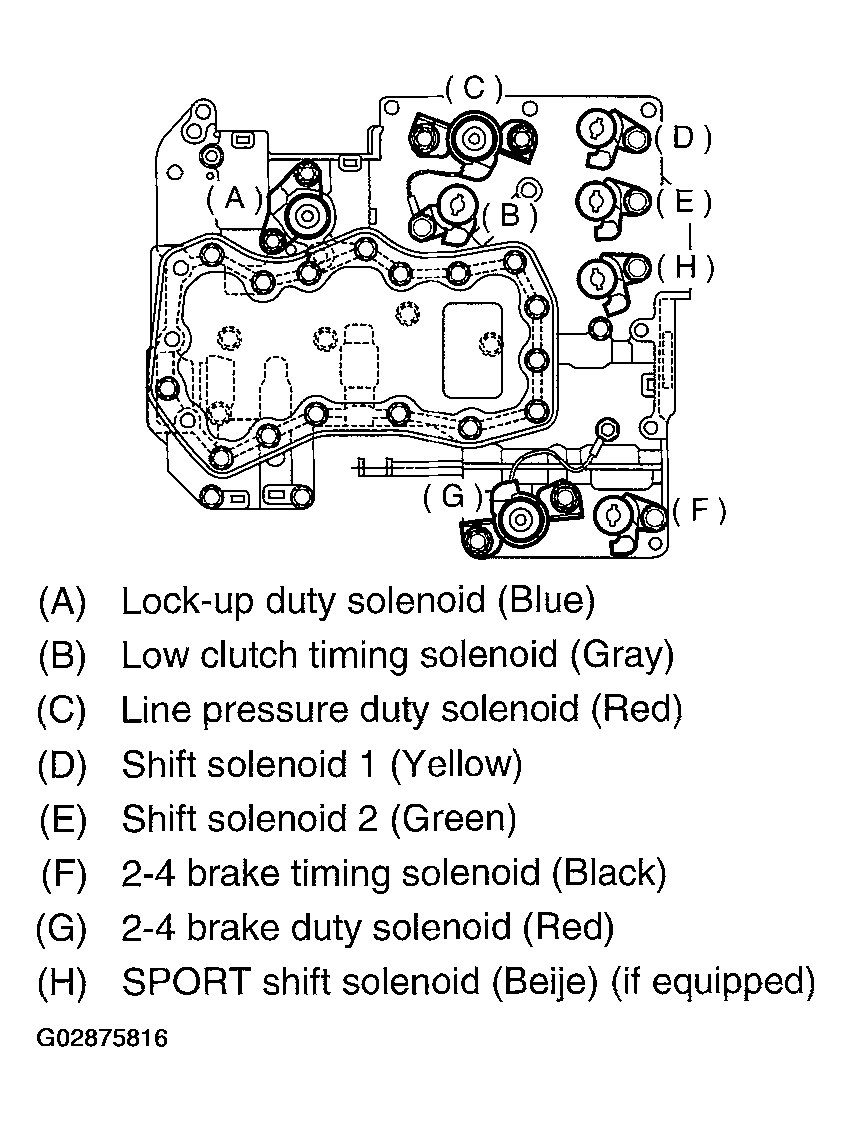

    Fig 10: Installing Sensor, Solenoids & Duty Solenoids
    G02875816Courtesy of SUBARU OF AMERICA, INC.
  12. Tighten the bolts and nuts.
    1. Tightening torque:  8 N.m (0.8 kgf-m, 5.8 ft-lb)

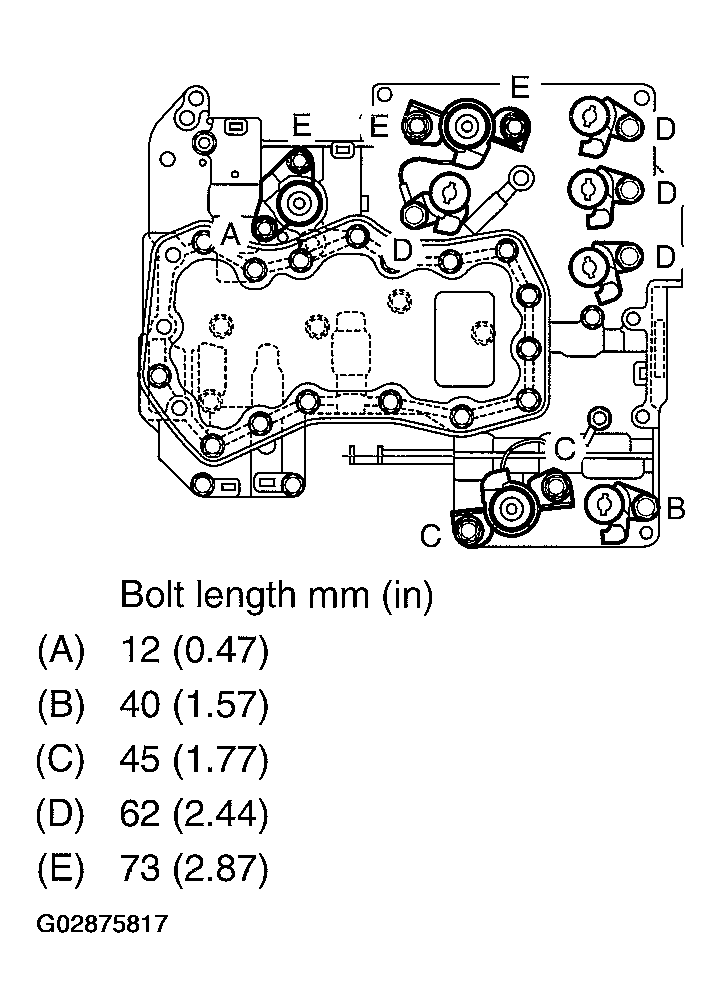

      Fig 11: Tightening Bolts & Nuts
      G02875817Courtesy of SUBARU OF AMERICA, INC.
  13. Install oil strainer to lower valve body.
    1. Tightening torque:  8 N.m (0.8 kgf-m 5.8 ft-lb)

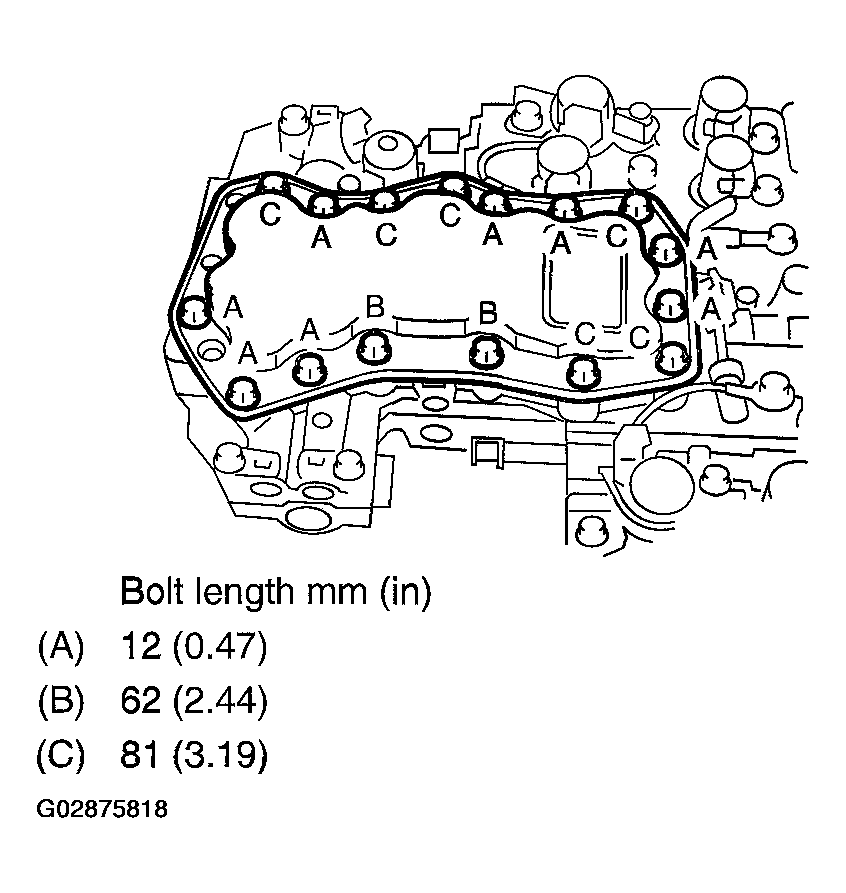

    Fig 12: Installing Oil Strainer To Lower Valve Body
    G02875818Courtesy of SUBARU OF AMERICA, INC.
