Using the ST and a press, press in a new oil seal.
1. ST 498057300 INSTALLER
Press in the dust cover.
Install the transfer clutch pipe to extension case without bending pipe.

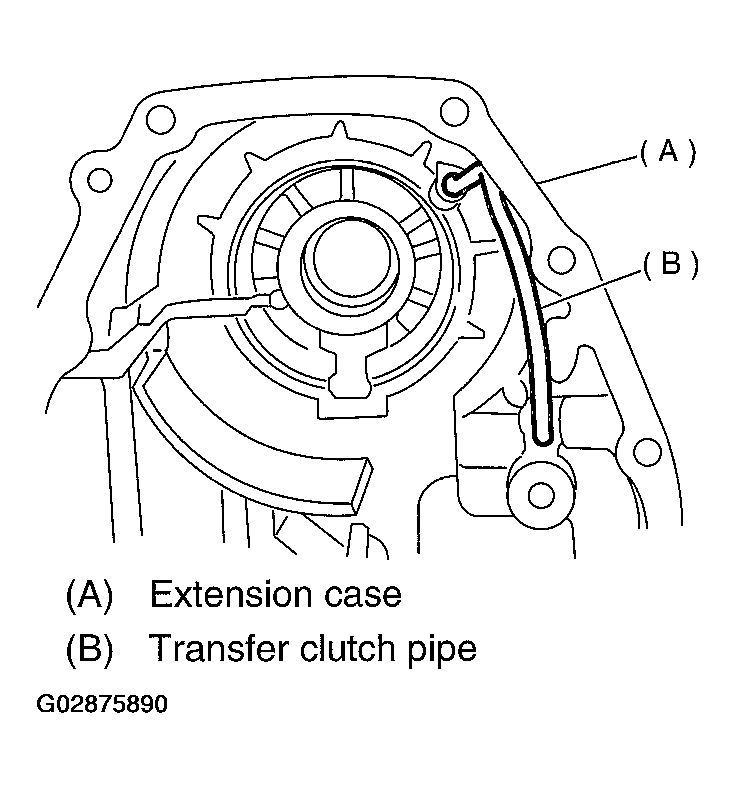

Fig 1: Installing Transfer Clutch Pipe To Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly to the case.
NOTE:
- Be careful not to damage the seal rings.
- Insert the clutch assembly fully into position until the bearing shoulder bottoms.

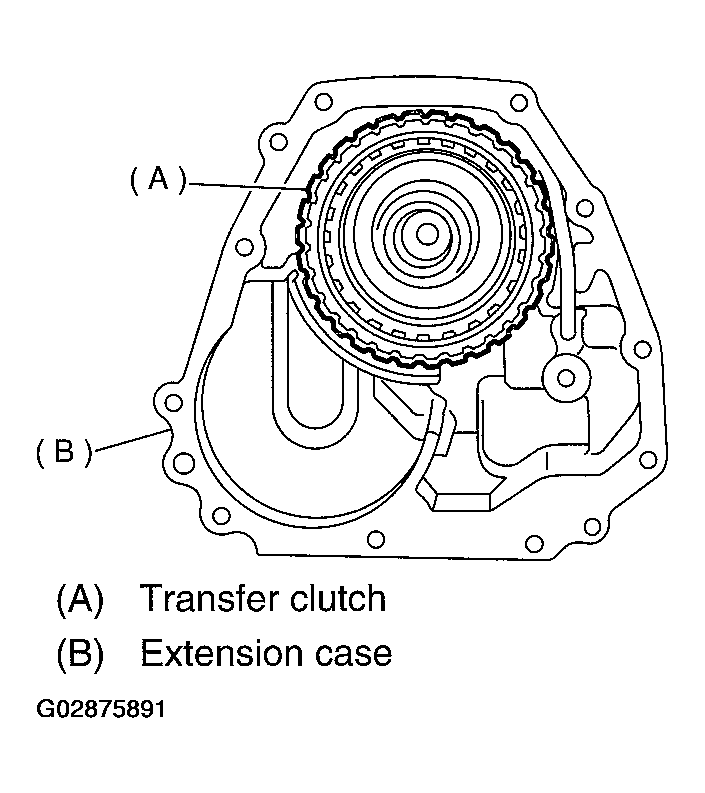

Fig 2: Installing Transfer Clutch Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
