Press new oil seal using ST and a press.
1. ST 498057300 INSTALLER
Press dust cover.
Install the transfer clutch pipe onto the extension case, taking care not to bend the pipe.

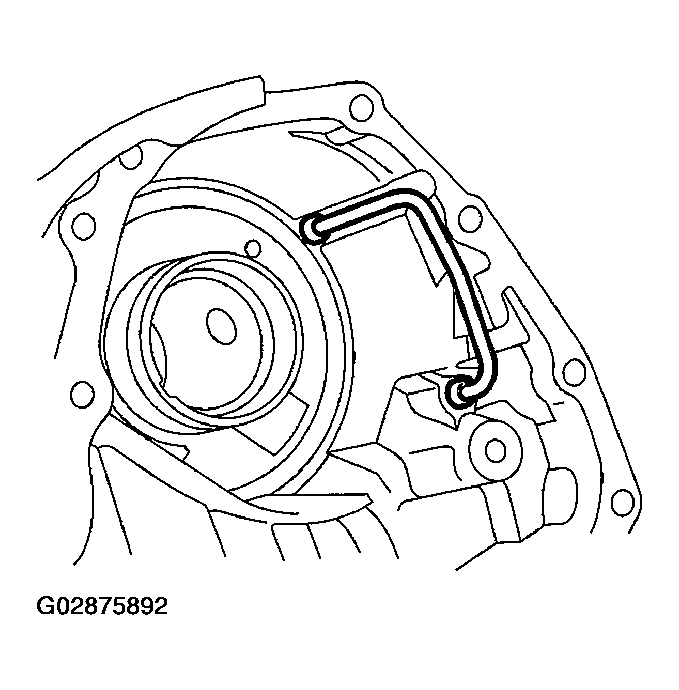

Fig 1: Installing Transfer Clutch Pipe Onto Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the test plug.
1. Tightening torque: 13 N.m (1.3 kgf-m, 9.4 ft-lb)

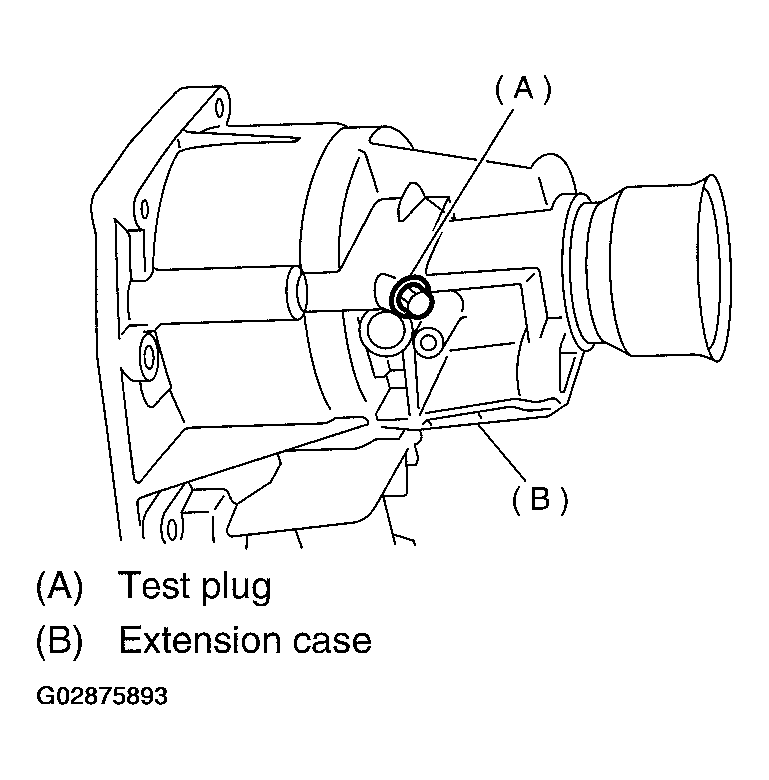

  Fig 2: Installing Test Plug
  Courtesy of SUBARU OF AMERICA, INC.
2. Insert the multi-plate clutch, drive plates, driven plates, and spring retainer.

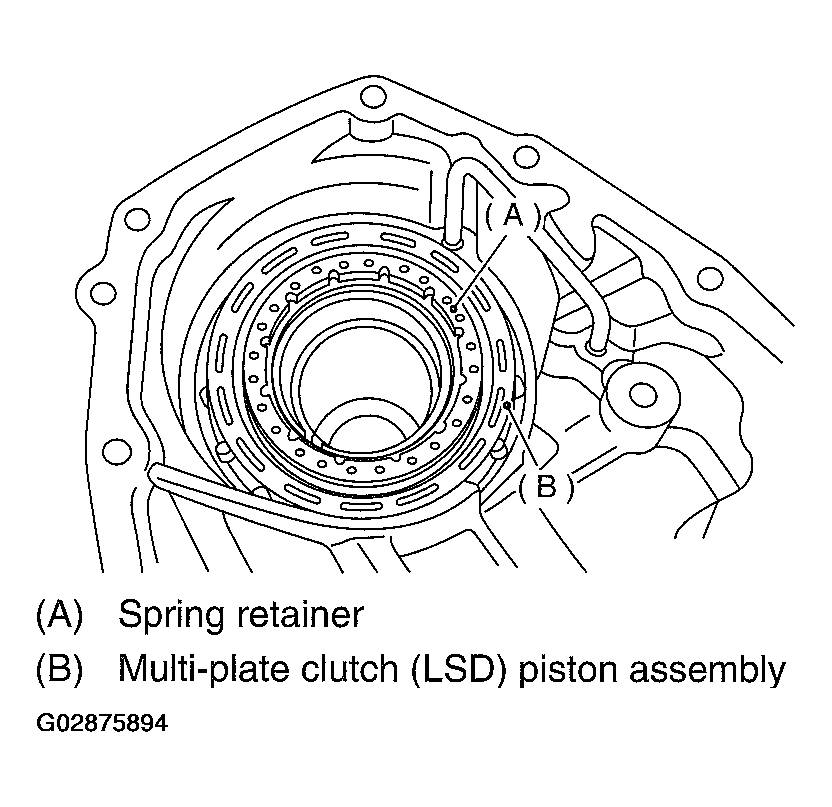

  Fig 3: Inserting Multi-Plate Clutch
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the snap ring using special tools 1, 2 and 3.
  1. ST1 398673600 Compressor
  2. ST2 498627100 Seat
  3. ST3 398663600 Pliers

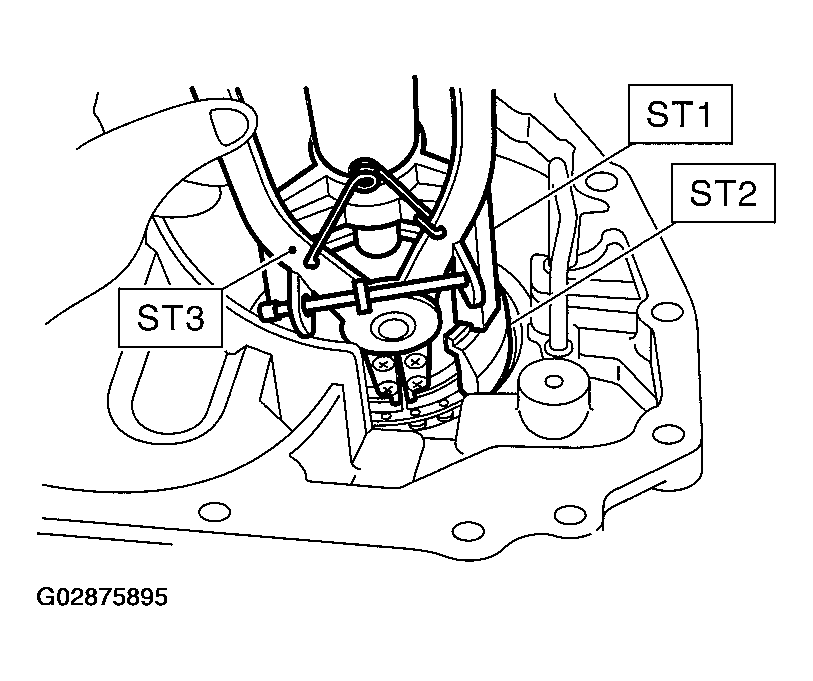

  Fig 4: Installing Snap Ring Using Special Tools
  Courtesy of SUBARU OF AMERICA, INC.
