Extension Case: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Attach the selected thrust needle bearing to the end surface of reduction drive gear with vaseline.
NOTE: Install thrust needle bearing in the correct direction.
Install new gasket.
Install the extension case to the transmission case.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

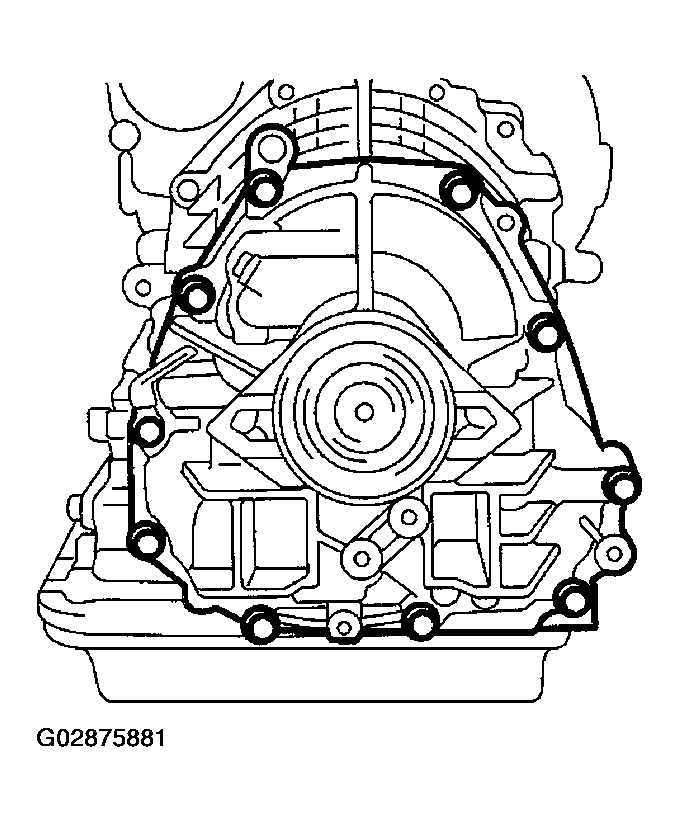

Fig 1: Tightening Bolts To Secure Case
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
1. Tightening torque: 7 N.m (0.7 kgf-m, 5.1 ft-lb)

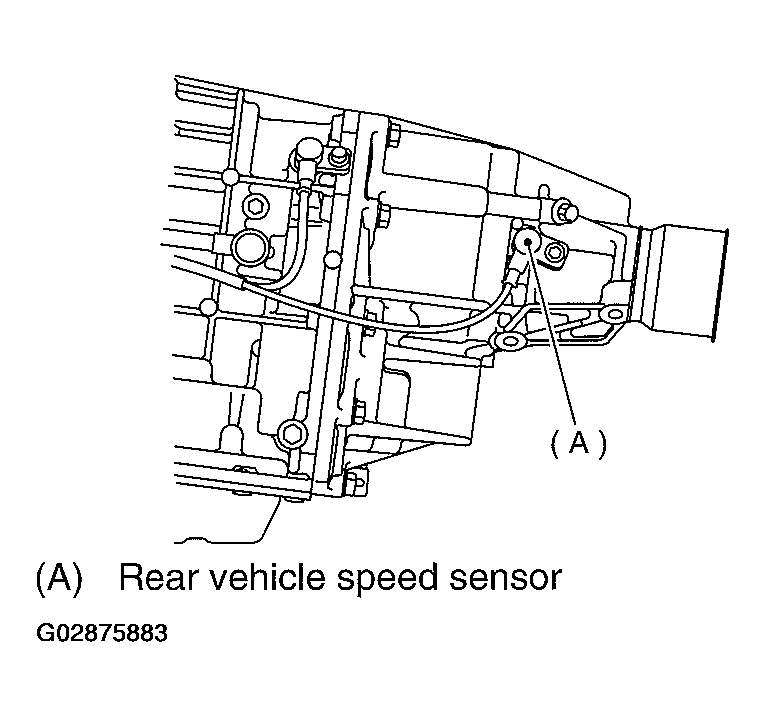

Fig 2: Installing Rear Vehicle Speed Sensor (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.

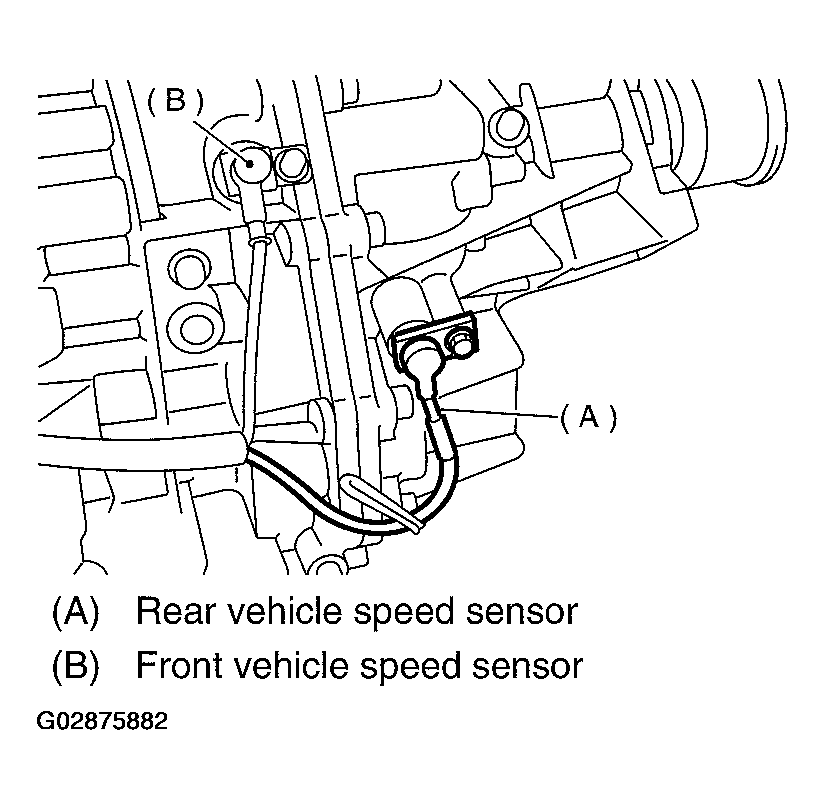

Fig 3: Installing Rear Vehicle Speed Sensor (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. < Ref. to INSTALLATION , Automatic Transmission Assembly.>
