Side Retainer

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.
    1. ST 499797000 INSTALLER

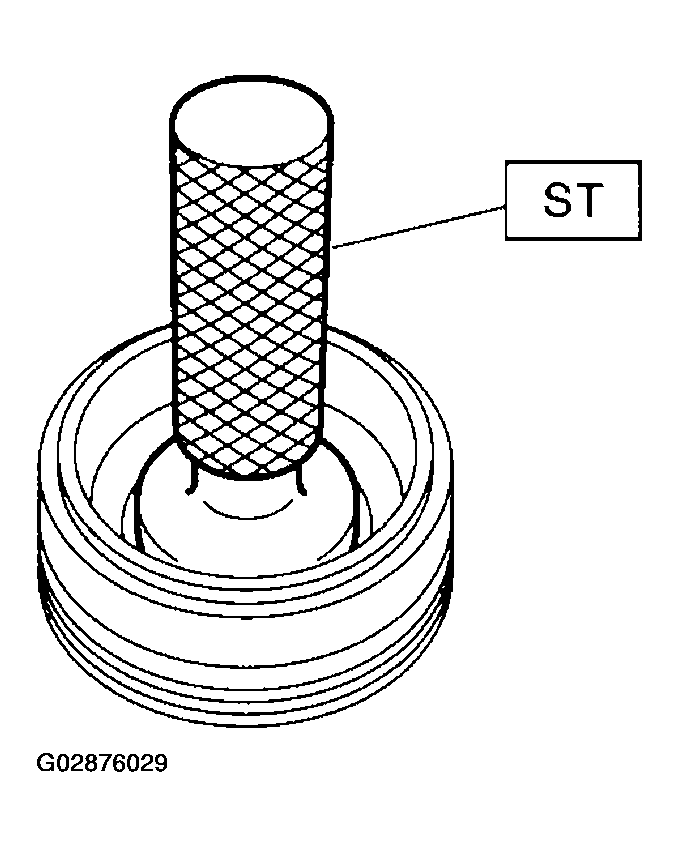

    Fig 1: Installing New Oil Seal Using ST & Hammer
    G02876029Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.

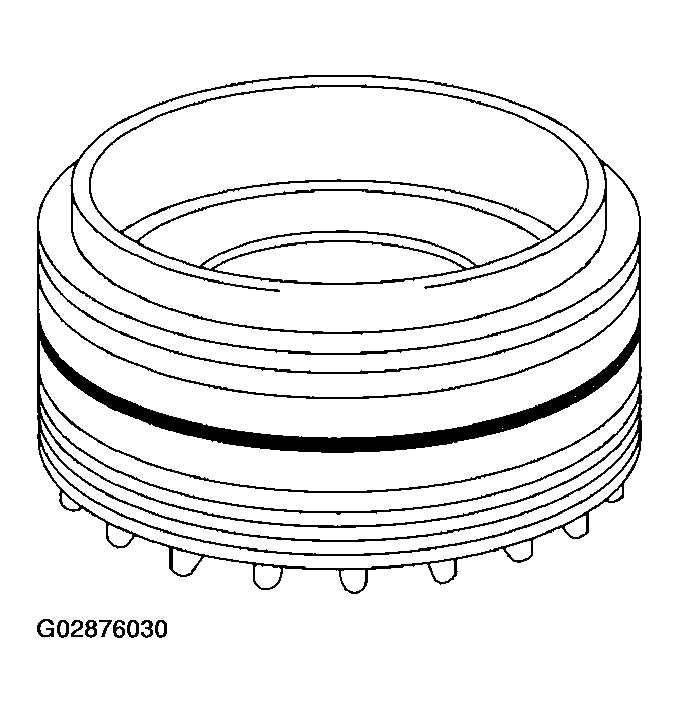

    Fig 2: Installing New O-Ring
    G02876030Courtesy of SUBARU OF AMERICA, INC.
