Differential Case Assembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Using a press and ST, remove the taper roller bearing.
1. ST 498077000 REMOVER

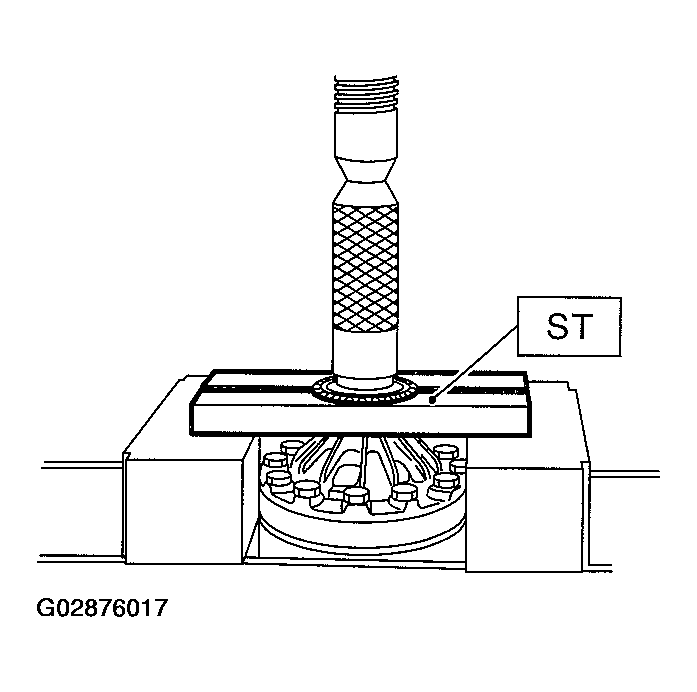

Fig 1: Removing Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

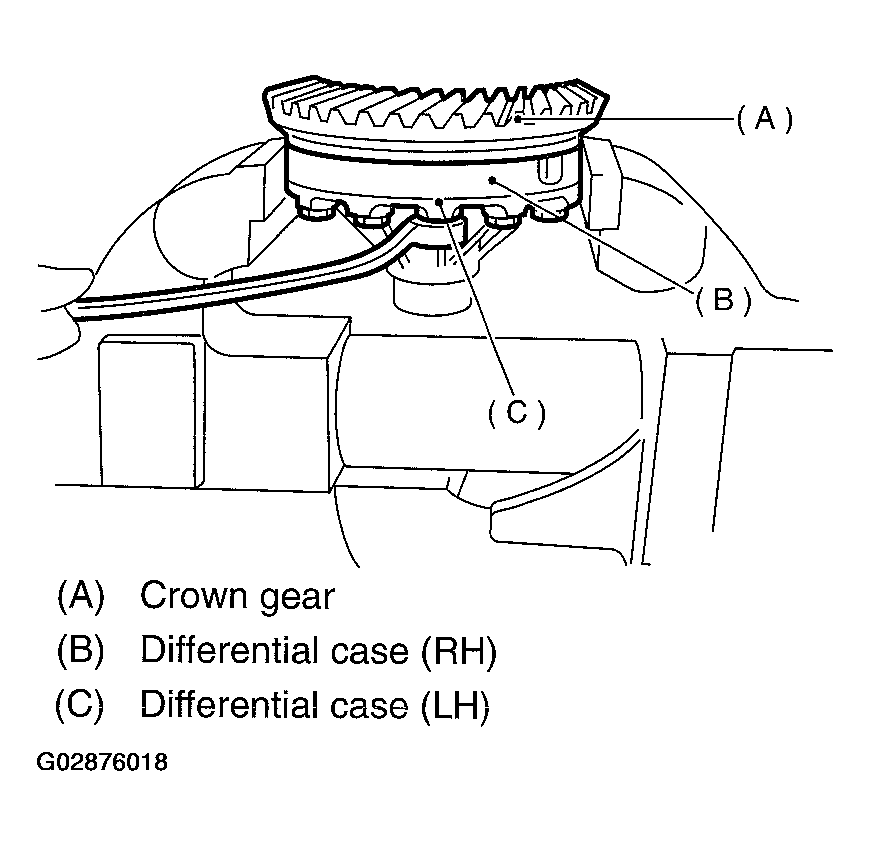

Fig 2: Removing Crown Gear Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

Fig 3: Removing Differential Bevel Gear
Courtesy of SUBARU OF AMERICA, INC.
