Install the differential assembly to the case, paying special attention not to damage the inside of the case (particularly, the differential side retainer contact surface).

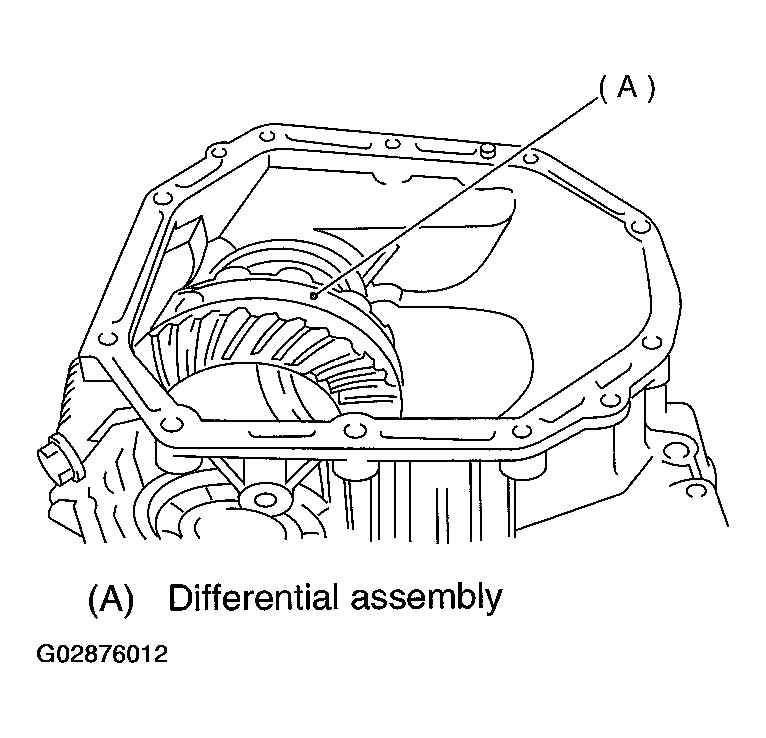

Fig 1: Installing Differential Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings from left and right side retainer.
Using ST, install the side retainers. < Ref. to REMOVAL , Front Differential.
1. ST 499787000 WRENCH ASSY
Install the lock plate.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

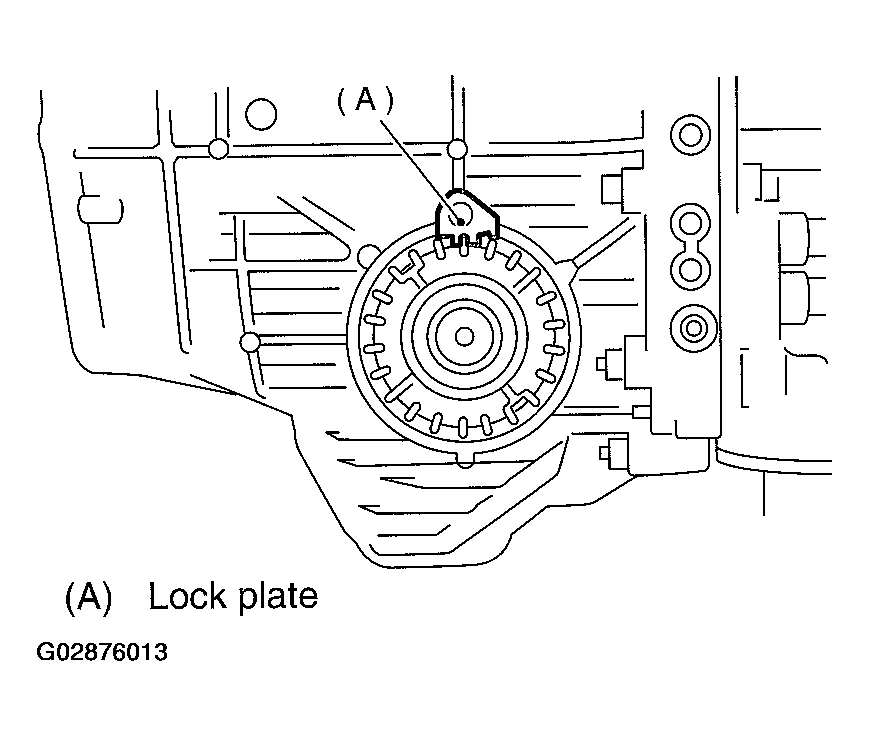

Fig 2: Installing Lock Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the new seal pipe to the torque converter clutch case.

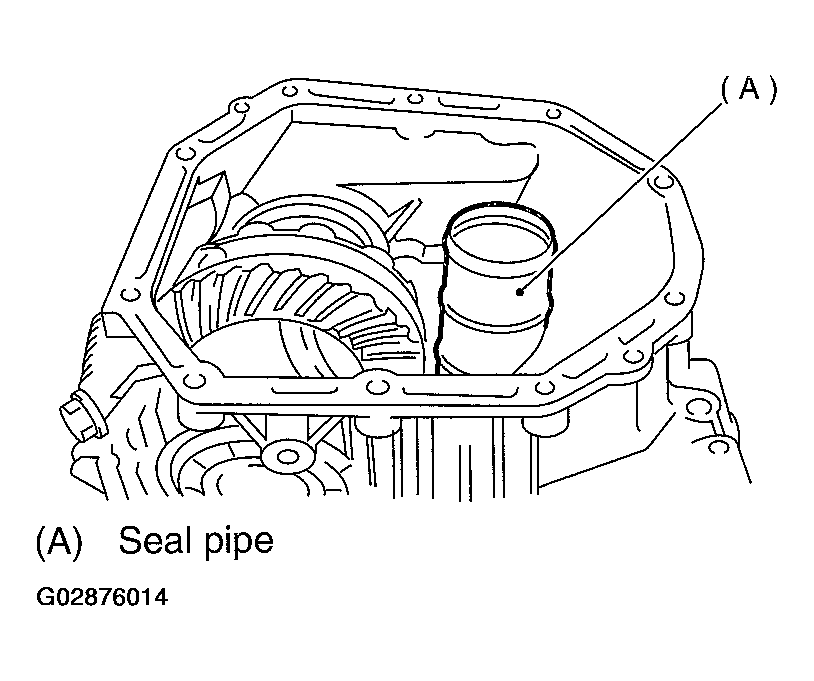

Fig 3: Installing New Seal Pipe To Torque Converter Clutch Case
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch case to transmission case. < Ref. to INSTALLATION , Torque Converter Clutch Case.>
Install air breather hose.
Insert inhibitor switch and transmission connector into stay.

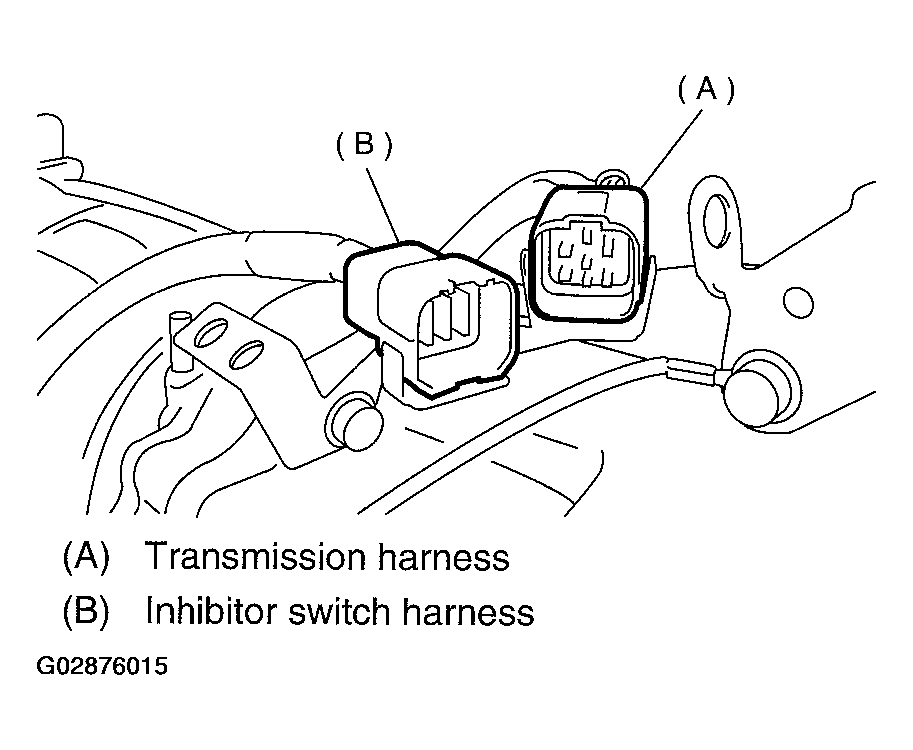

Fig 4: Inserting Inhibitor Switch & Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install oil cooler pipes. < Ref. to INSTALLATION , ATF Cooler Pipe and Hose.>
Install the oil charger pipe with O-ring < Ref. to INSTALLATION , Oil Charger Pipe.>
Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
1. Normal protrusion A: 50-55 mm (1.97-2.17 in)

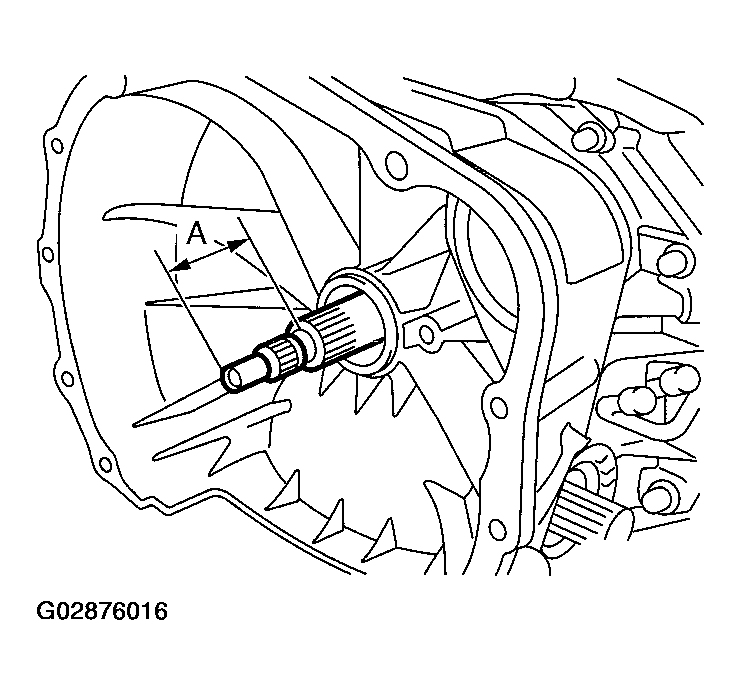

Fig 5: Inserting Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly.
< Ref. to INSTALLATION , Torque Converter Clutch Assembly.>
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly.>
