Oil Pump: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

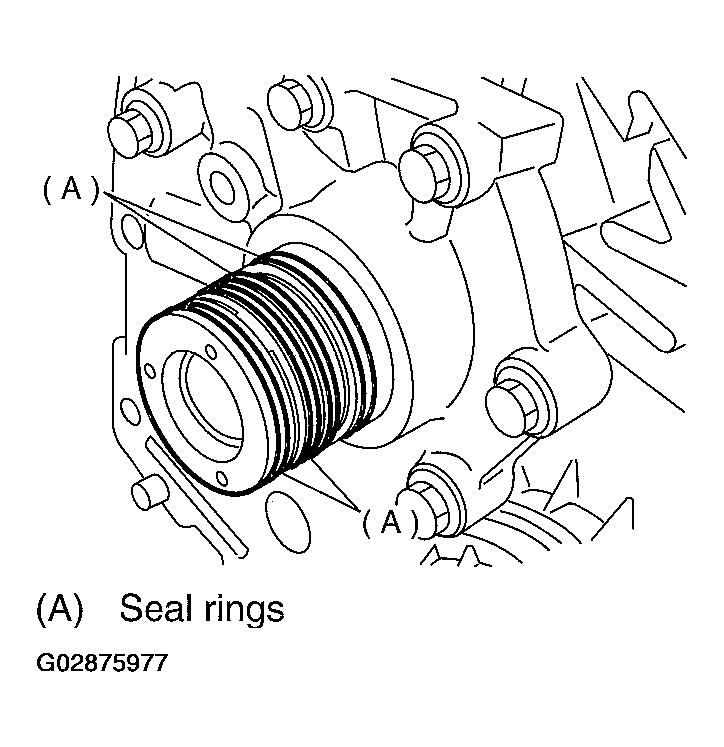

Remove four seal rings.

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.

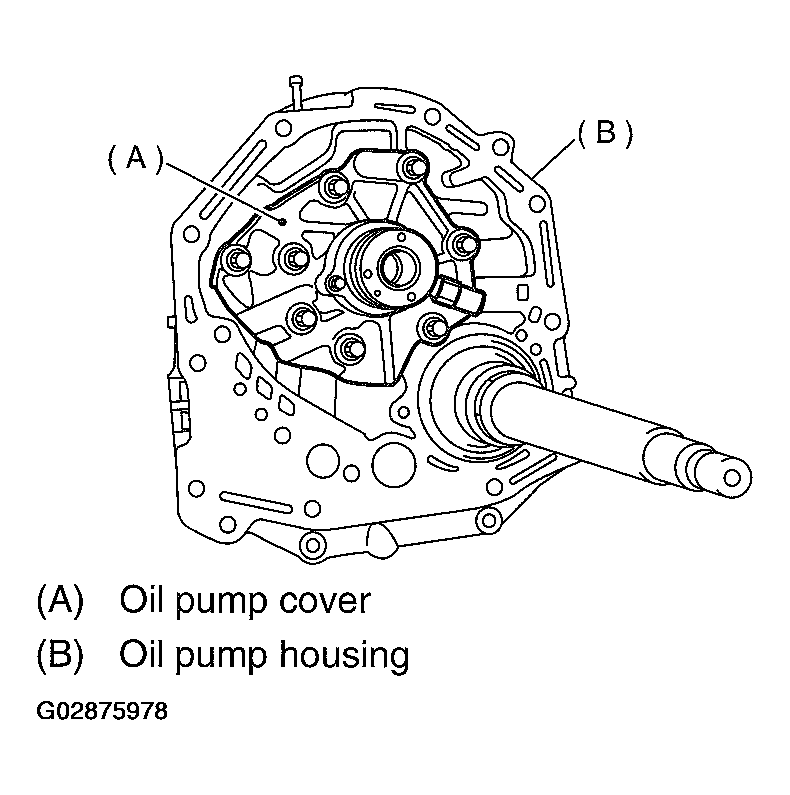

Lightly tap the end of the stator shaft to remove the cover.

Fig 2: Tapping End Of Stator Shaft To Remove Cover
Courtesy of SUBARU OF AMERICA, INC.

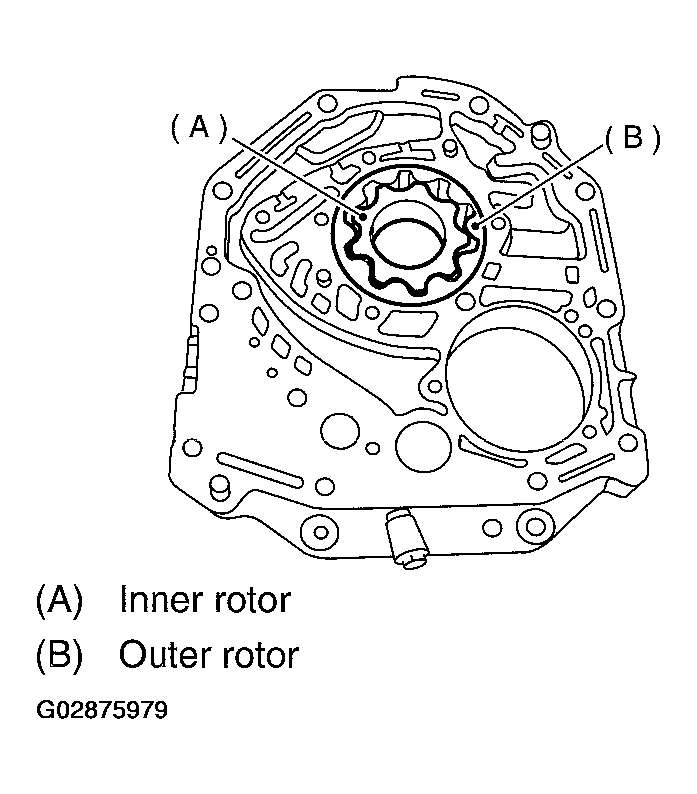

Remove the inner and outer rotor.

Fig 3: Removing Inner & Outer Rotor
Courtesy of SUBARU OF AMERICA, INC.
