MPT Model

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. << Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case.

    < Ref. to REMOVAL , Extension Case.>

  3. Set the range select lever to "P".
  4. Straighten the staked portion, and remove the lock nut.

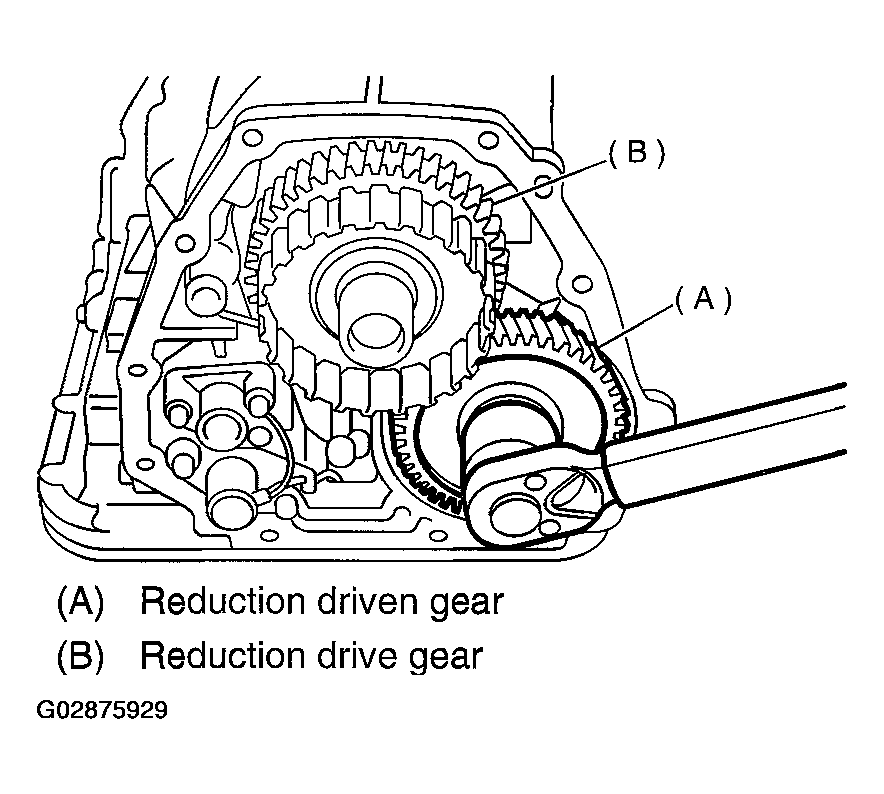

    Fig 1: Removing Lock Nut
    G02875929Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST1 and ST2, extract the reduction driven gear.
    1. ST1 499737000 PULLER
    2. ST2 899524100 PULLER SET

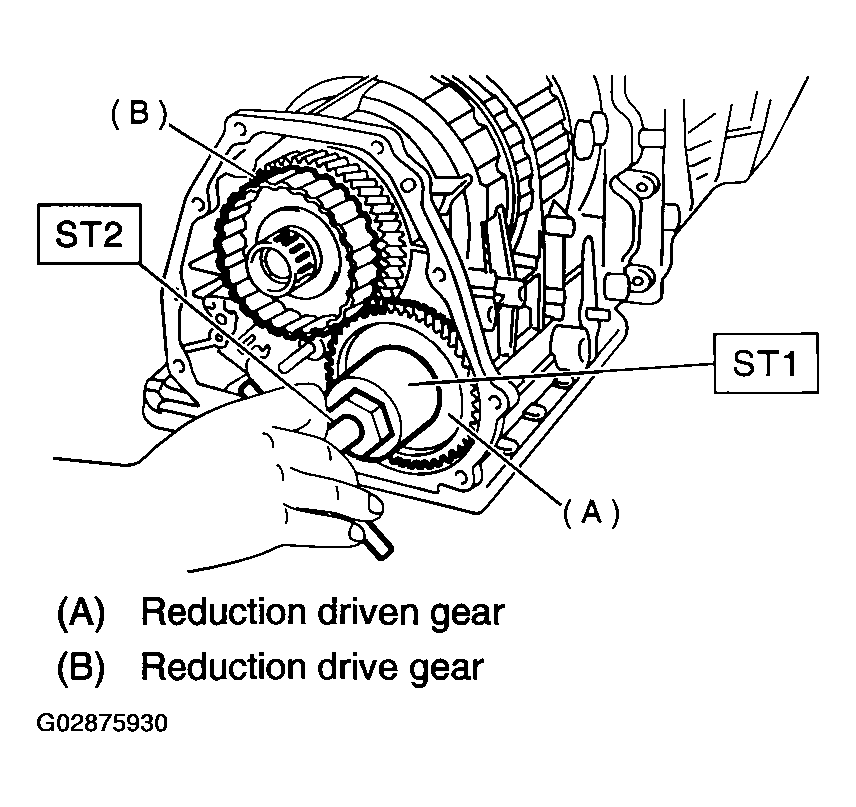

Fig 2: Extracting Reduction Driven Gear
G02875930Courtesy of SUBARU OF AMERICA, INC.
