Pitching Stopper

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install the pitching stopper.
Tightening torque:
1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

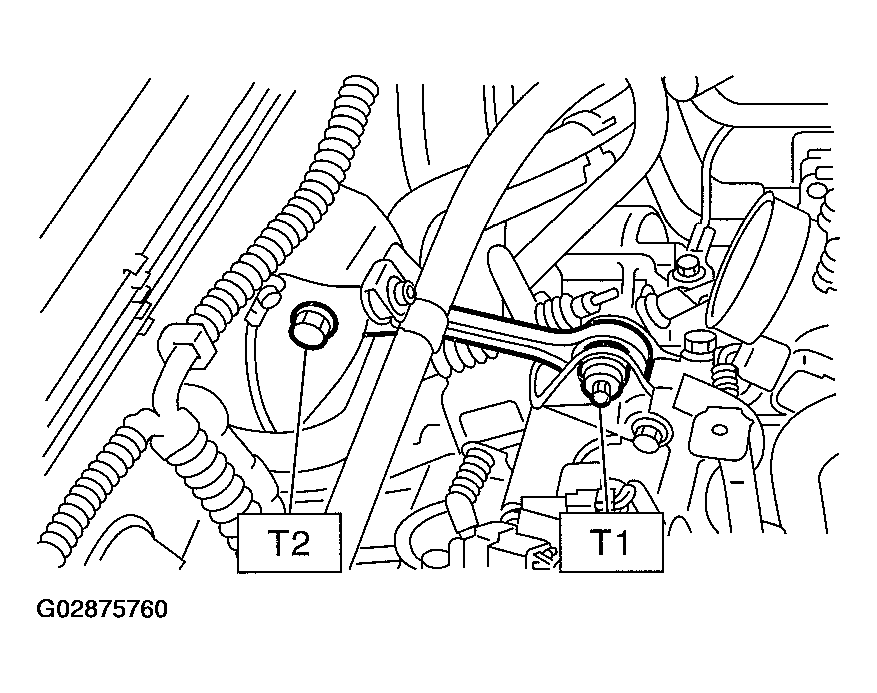

  Fig 1: Installing Pitching Stopper
  Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. (2.5 L model)
< Ref. to INSTALLATION , Air Cleaner Case.>
Remove air intake chamber. (3.0 L model)
< Ref. to INSTALLATION , Air Intake Chamber.>
