Stop Light Switch

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Measure stop light switch resistance.

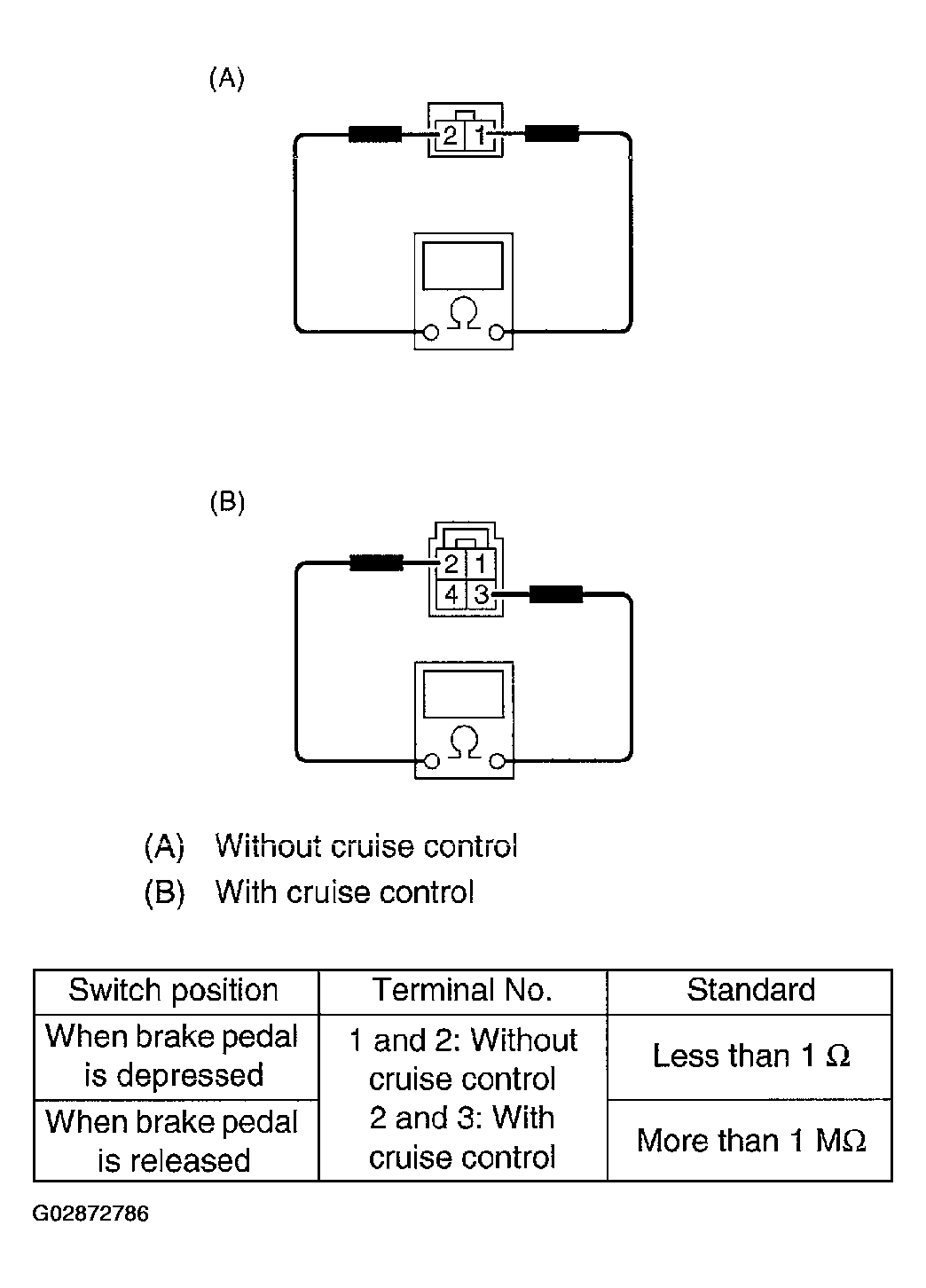

Fig 1: Measuring Stop Light Switch Resistance
G02872786Courtesy of SUBARU OF AMERICA, INC.
