Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Remove screws which secure upper column cover to lower column cover.
    Fig 1: Removing Screws Which Secure Upper Column Cover To Lower Column Cover
    G03510118Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from combination switch.
  5. Remove screws which secure switch and remove switch.

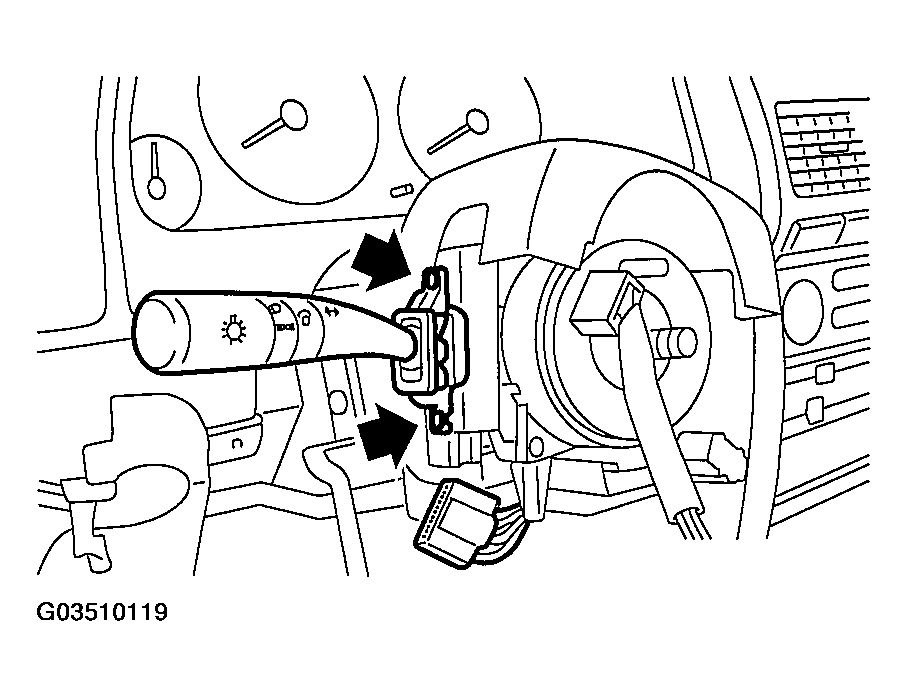

    Fig 2: Removing Screws
    G03510119Courtesy of SUBARU OF AMERICA, INC.
