Headlight Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove duct (A) (when right side headlight is removed).

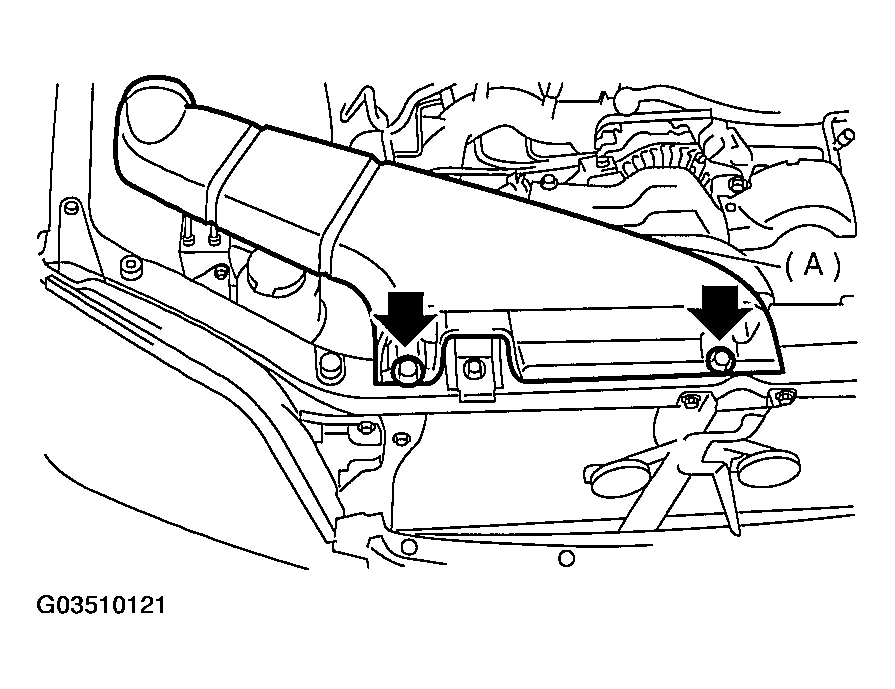

Fig 1: Removing Duct
Courtesy of SUBARU OF AMERICA, INC.
Disconnect headlight harness connector Single-bulb type

Fig 2: Disconnecting Headlight Harness Connector Single-Bulb Type
Courtesy of SUBARU OF AMERICA, INC.

Dual-bulb type

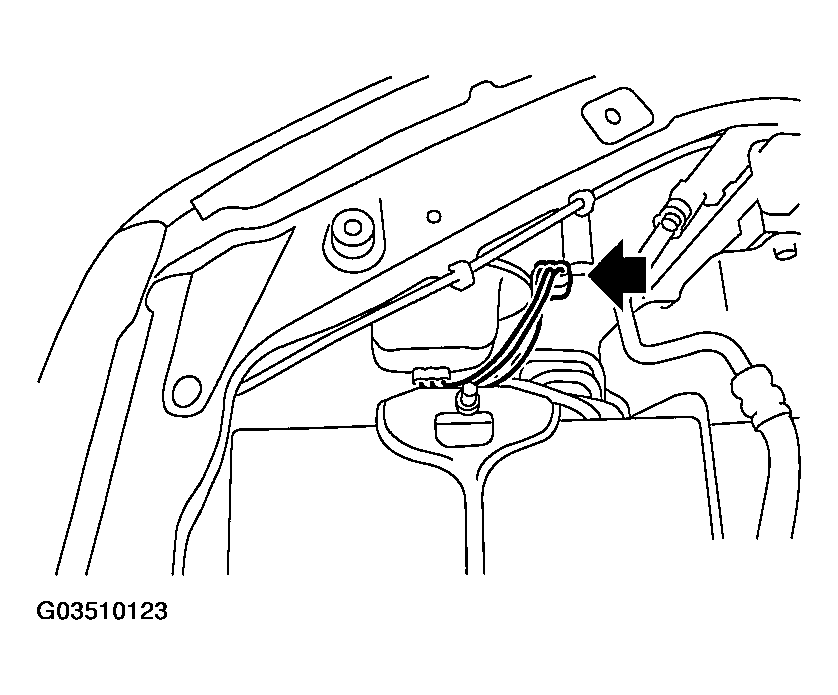

Fig 3: Identifying Dual-Bulb Type
Courtesy of SUBARU OF AMERICA, INC.
Remove three bolts and disconnect connectors, and then detach headlight assembly.

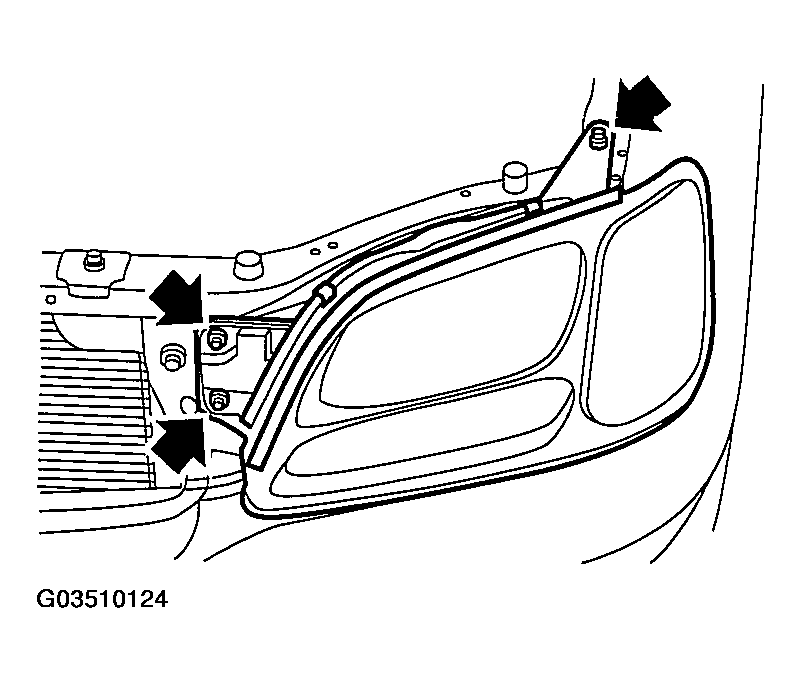

Fig 4: Detaching Headlight Assembly
Courtesy of SUBARU OF AMERICA, INC.
