Back-Up Light Switch (Mt Model)

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Measure the back-up light switch resistance.

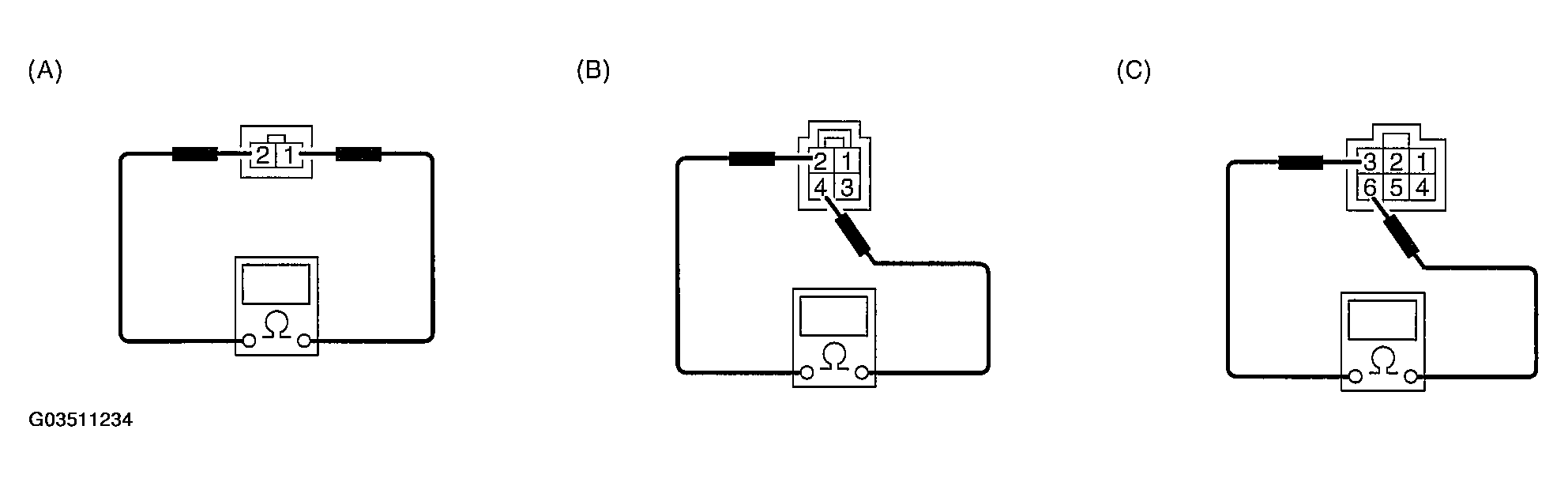

Fig 1: Checking Back-Up Light Switch Terminals Resistance

Courtesy of SUBARU OF AMERICA, INC.

BACK-UP LIGHT SWITCH TERMINALS RESISTANCE

Switch position	Terminal No.	Standard
When shift lever is set in reverse position	Turbo model (Except STi model): 2 and 4 Turbo model (Sti model): 3 and 6 Non-turbo model: 1 and 2	Less than 1 ohm
Other positions		More than 1 Mohm
