Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL . >
  3. Remove the screws which secure the upper column cover to lower column cover.
    Fig 1: Removing Screws Which Secure Upper Column Cover To Lower Column Cover
    G03511238Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from combination switch.
  5. Remove the screws which secure the switch, and then remove the switch.

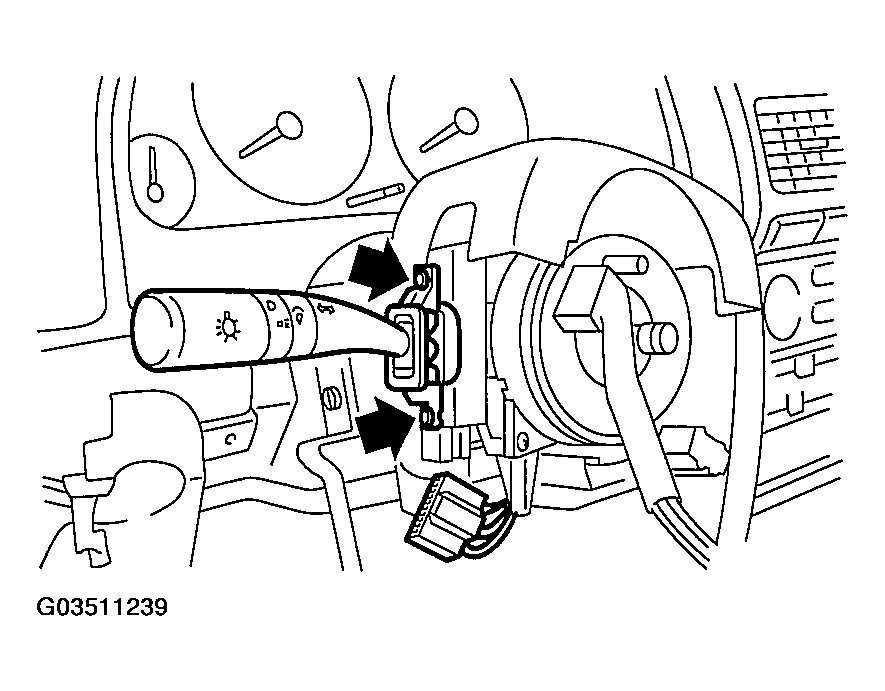

    Fig 2: Removing Combination Switch
    G03511239Courtesy of SUBARU OF AMERICA, INC.
