Headlight Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the duct (A) (when right side headlight is removed.).

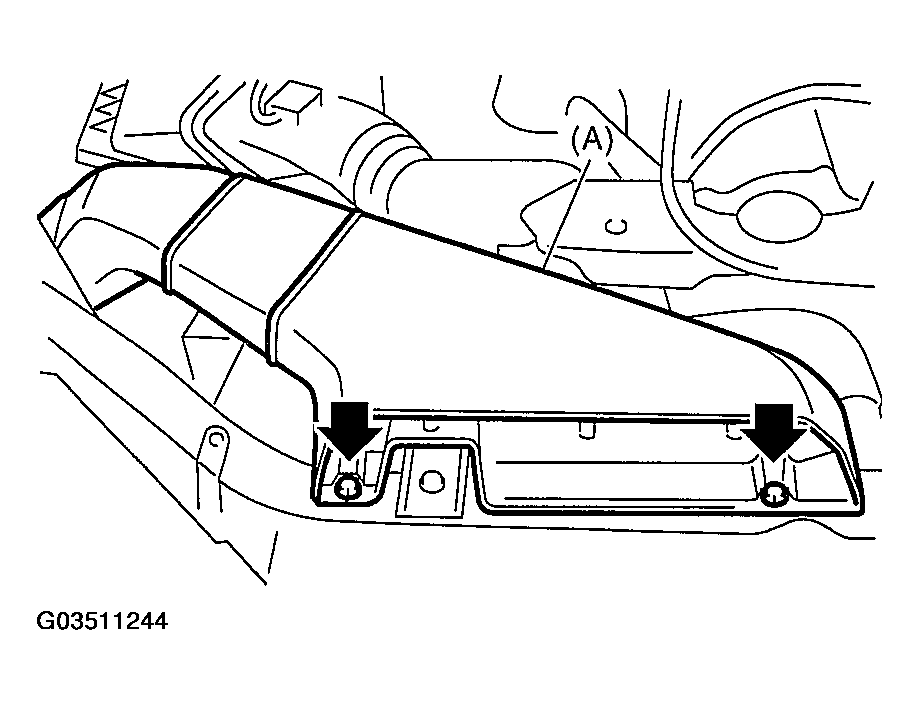

Fig 1: Removing Duct
Courtesy of SUBARU OF AMERICA, INC.
Remove the front grille and bumper upper clips. < Ref. to REMOVAL . >
Disconnect each harness connector.
Remove the three bolts and disengage the clips, and then detach the headlight assembly.

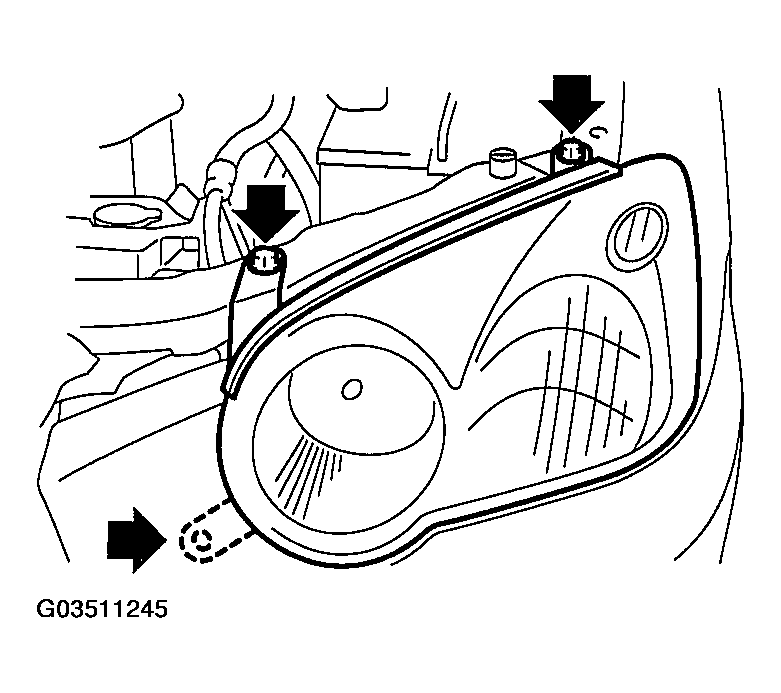

Fig 2: Removing Headlight Assembly
Courtesy of SUBARU OF AMERICA, INC.
