Symptom Chart (Keyless Entry System)
WARNING:
This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
Use chart in
Fig 1
and
Fig 2
.

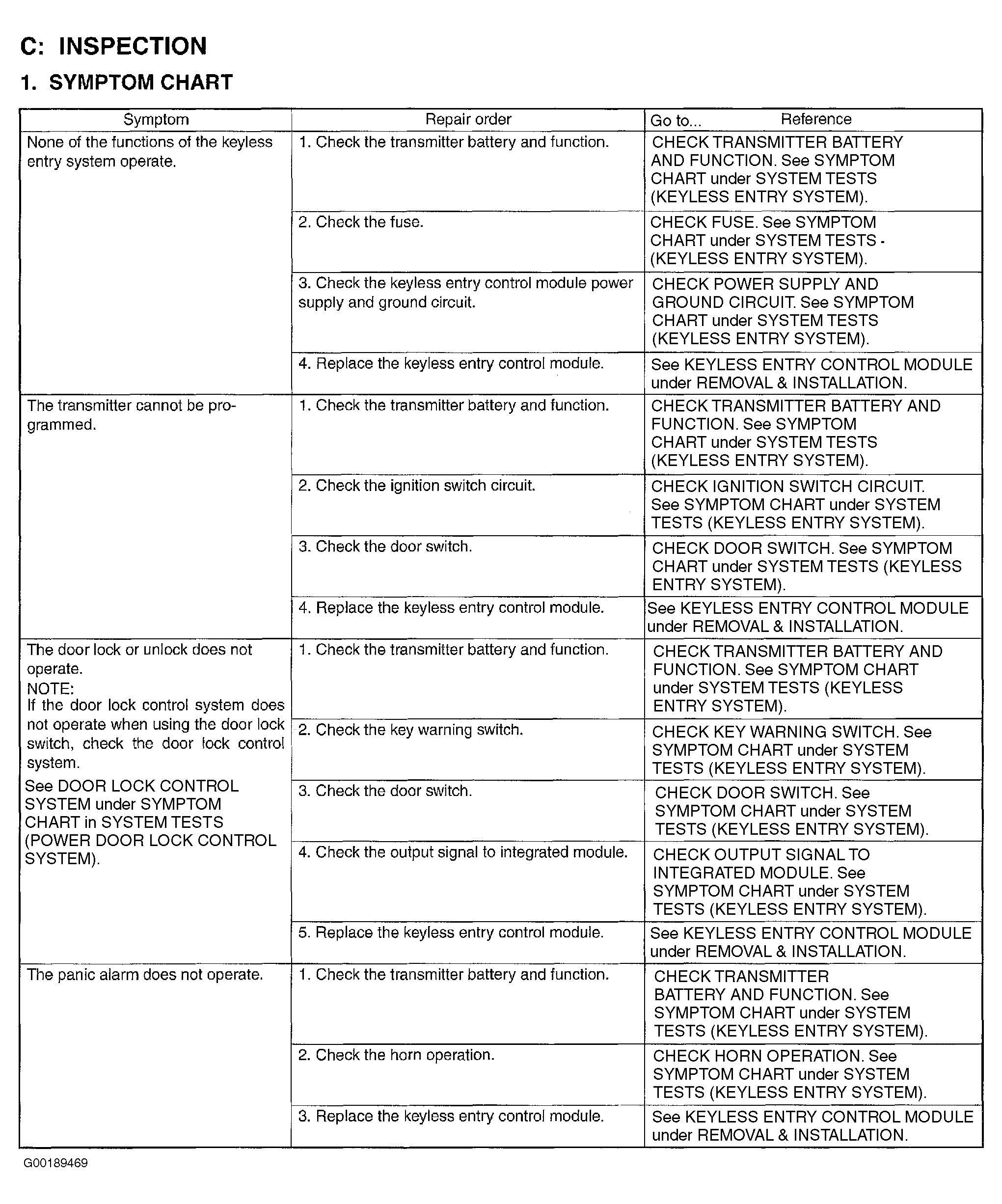

Fig 1: Keyless Entry System Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

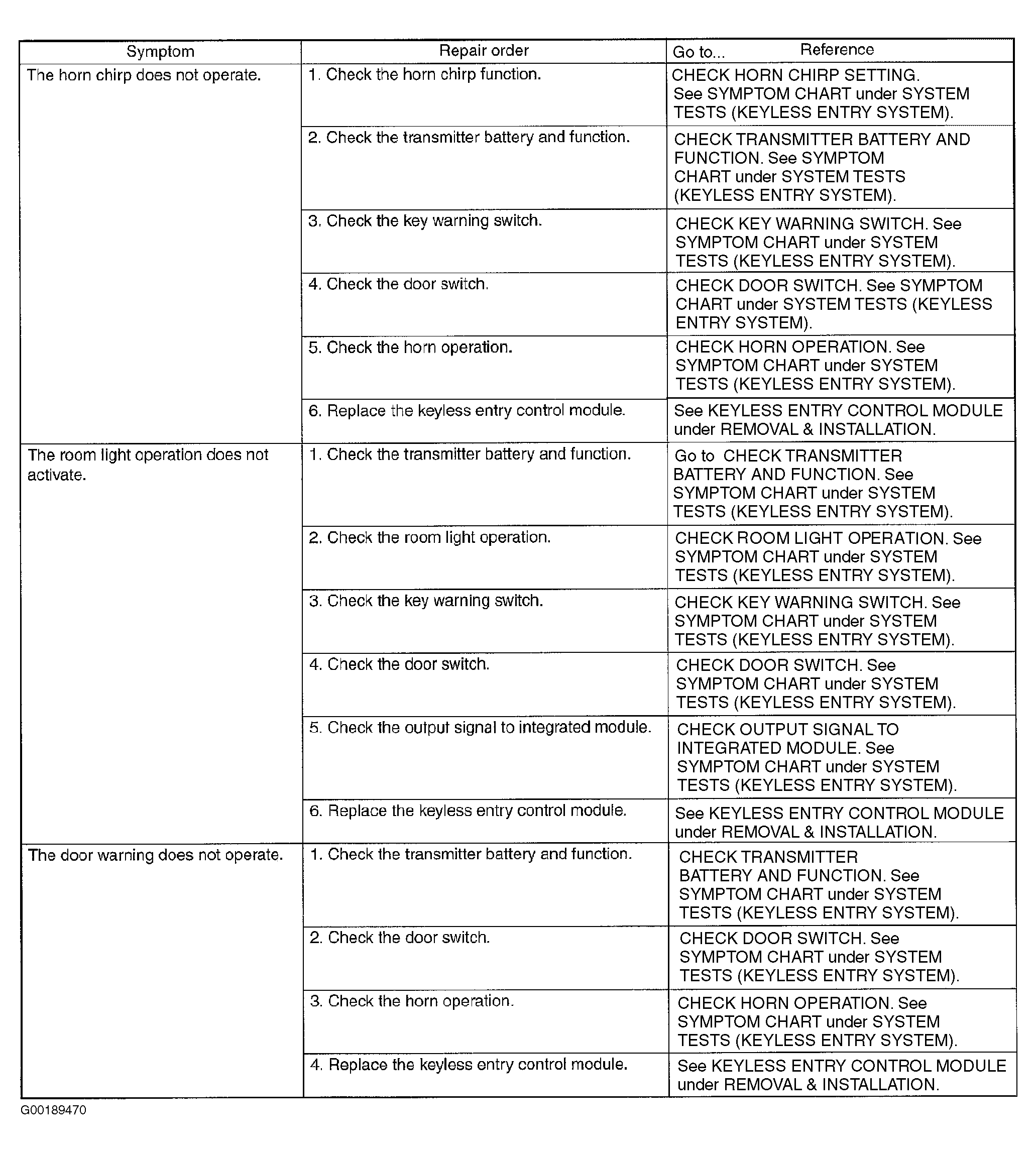

Fig 2: Keyless Entry System Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
