Security Indicator Light Circuit Test
WARNING:
This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

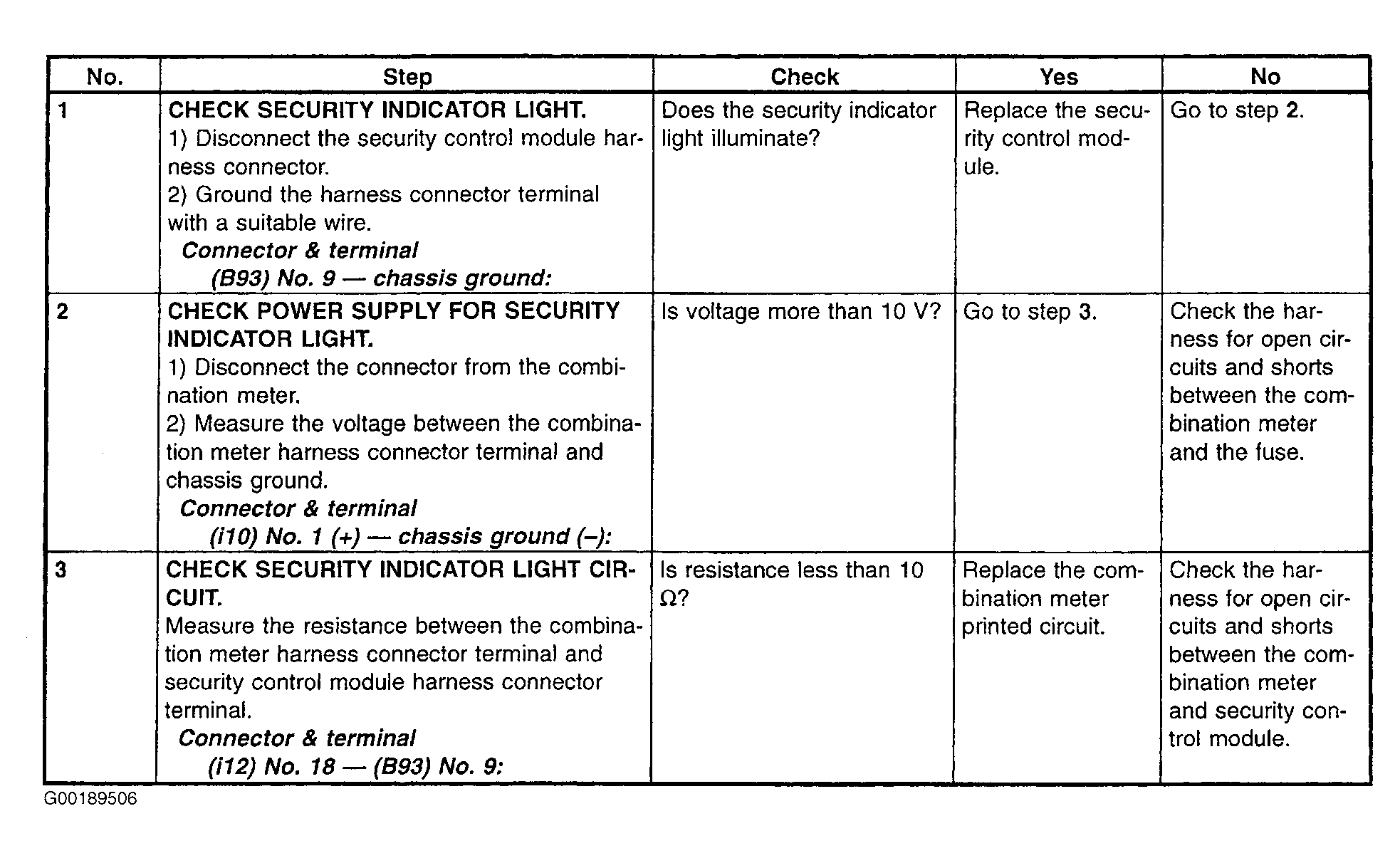

Fig 1: Security Indicator Light Circuit Testing Procedure
Courtesy of SUBARU OF AMERICA, INC.
