Clutch Assembly For Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

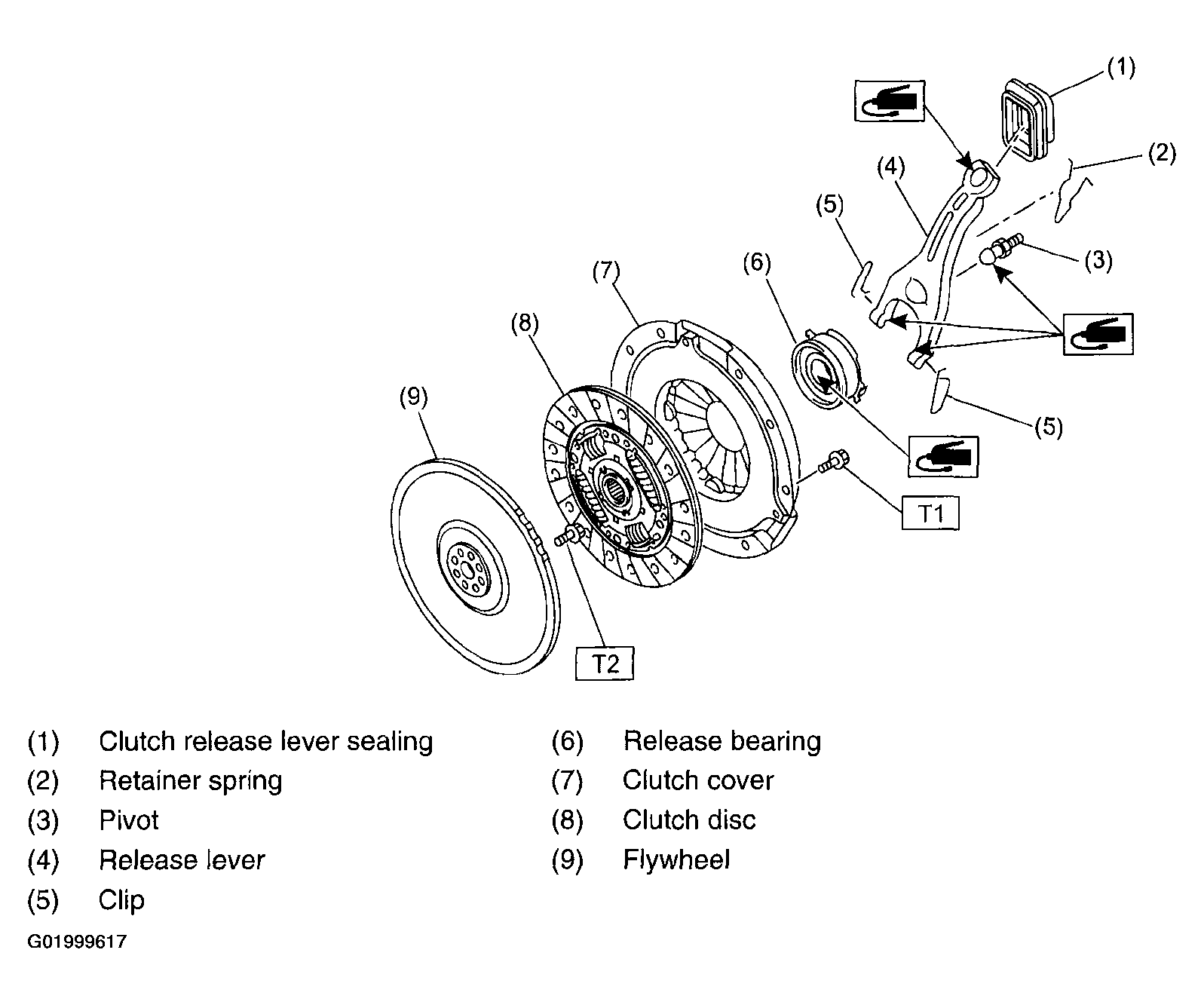

Fig 1: Clutch Assembly (Non-Turbo Model)
G01999617Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  16 (1.6, 11.6)
  2. T2:  72 (7.3, 52.8)
