Clutch Assembly For Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

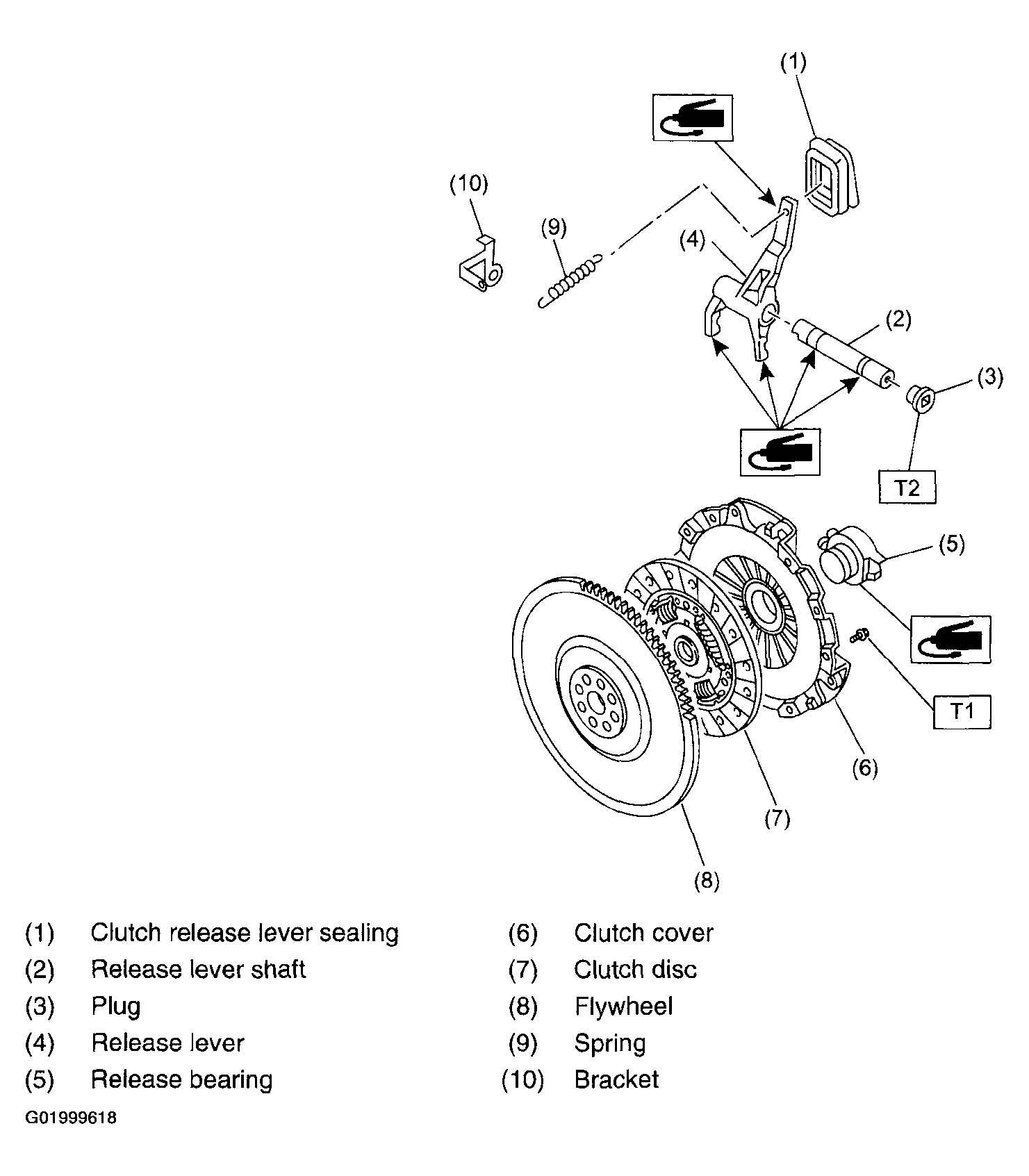

Fig 1: Clutch Assembly (Turbo Model)
G01999618Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  15.7 (1.6, 11.6)
  2. T2:  44 (4.5, 32.5)
