Air Intake System
WARNING:
This page is about a different variant/trim than selected.

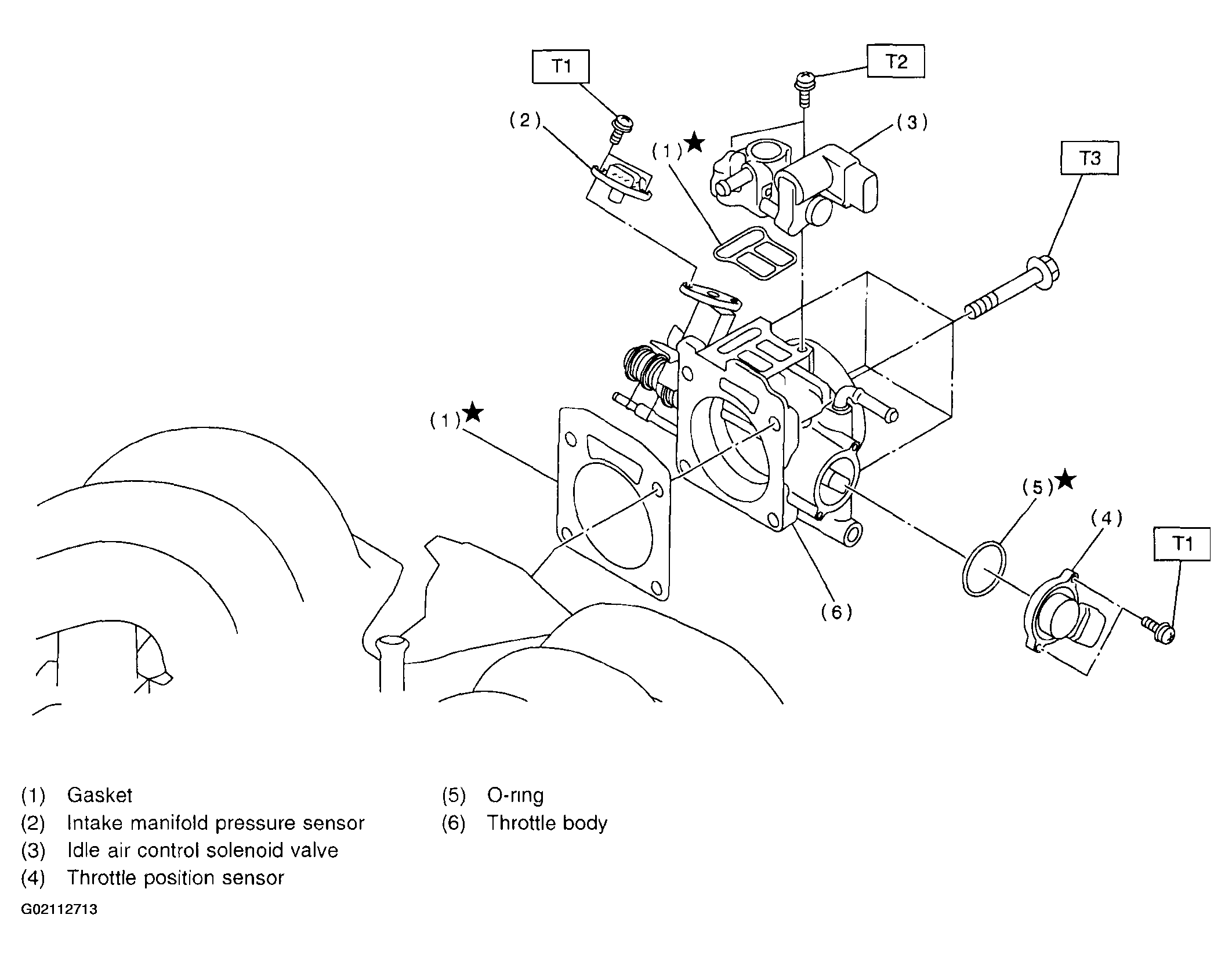

Fig 1: Exploded View Of Air Intake System
Tightening torque:
N-m (kgf-m, ft-lb)
T1:
1.6 (0. 16, 1.2)
T2:
2.8 (0.29, 2.1)
T3:
22 (2.2, 15.9)
