Section 8 (Engine Cooling System (3.0L)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

Attach radiator mounting cushions to holes on the vehicle.

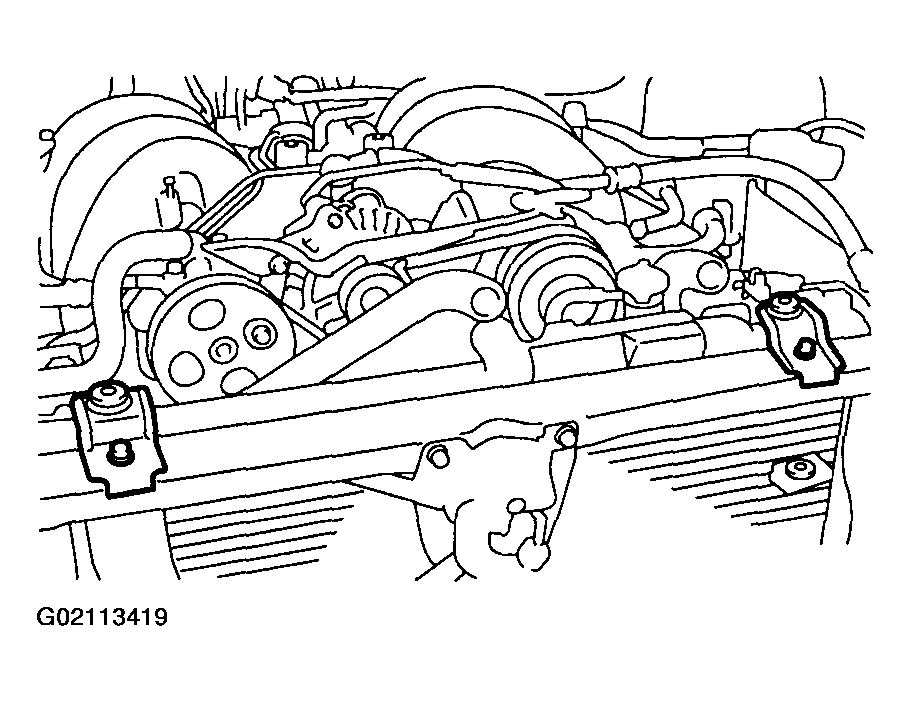

Fig 1: Attaching Radiator Mounting Cushions
Install radiator while fitting radiator pins to cushions.
NOTE: Fit pins on lower side of radiator into cushions on body side.

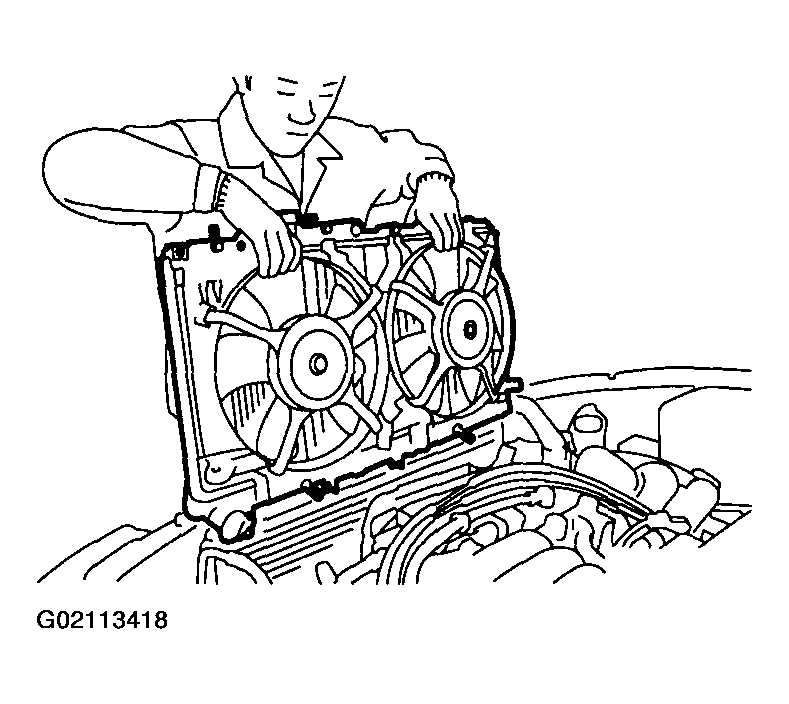

Fig 2: Installing Radiator
Install radiator brackets and tighten bolts.
1. Tightening torque: 12 Nm (1.2 kgf-m, 8.7 ft-lb)
Fig 3: Installing Radiator Brackets

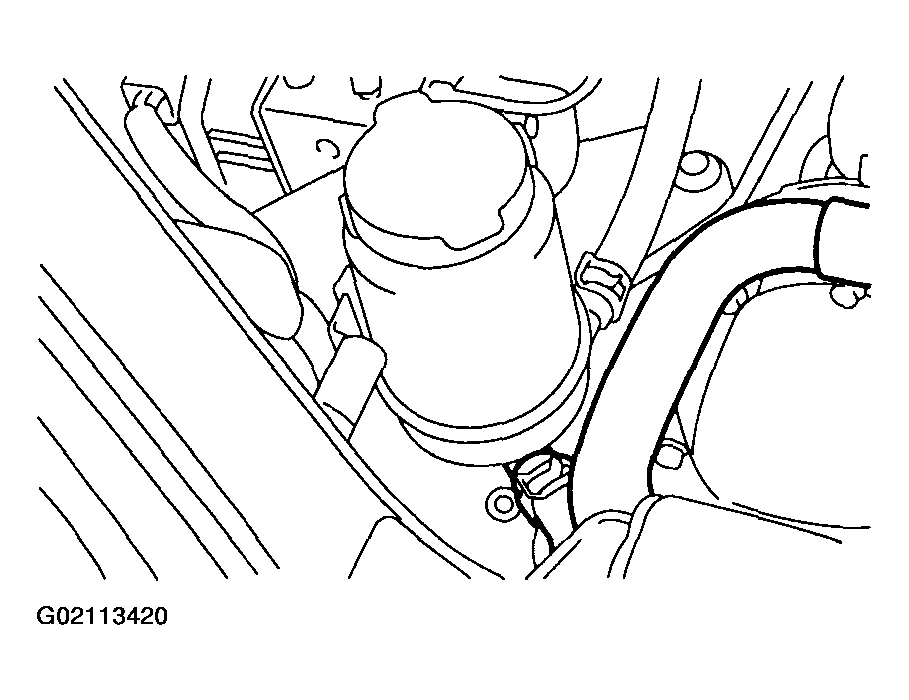

Attach power steering hose to the radiator.

Fig 4: Attaching Power Steering Hose To Radiator

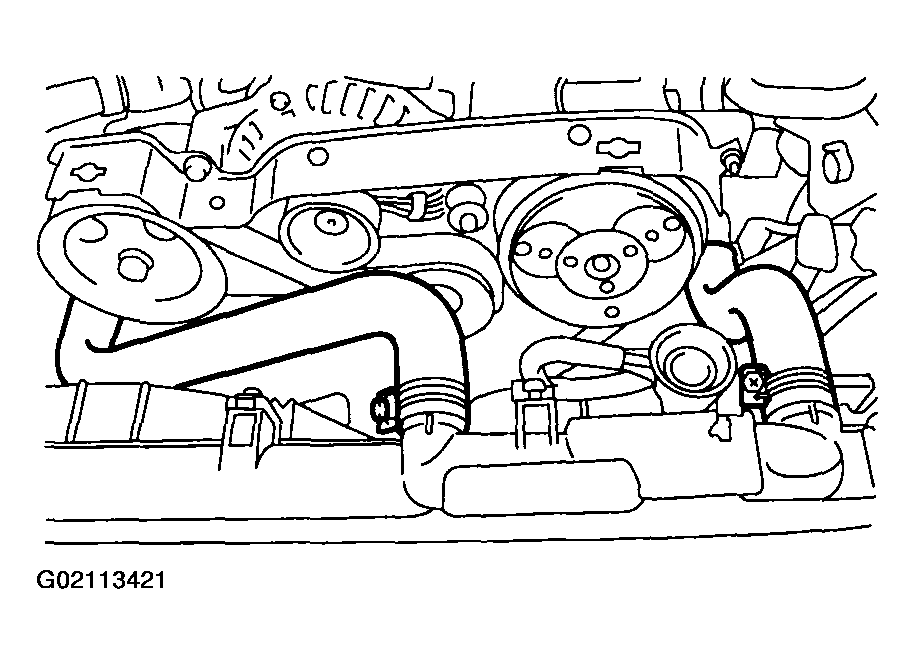

Connect radiator inlet hoses.

Fig 5: Connecting Radiator Inlet Hoses

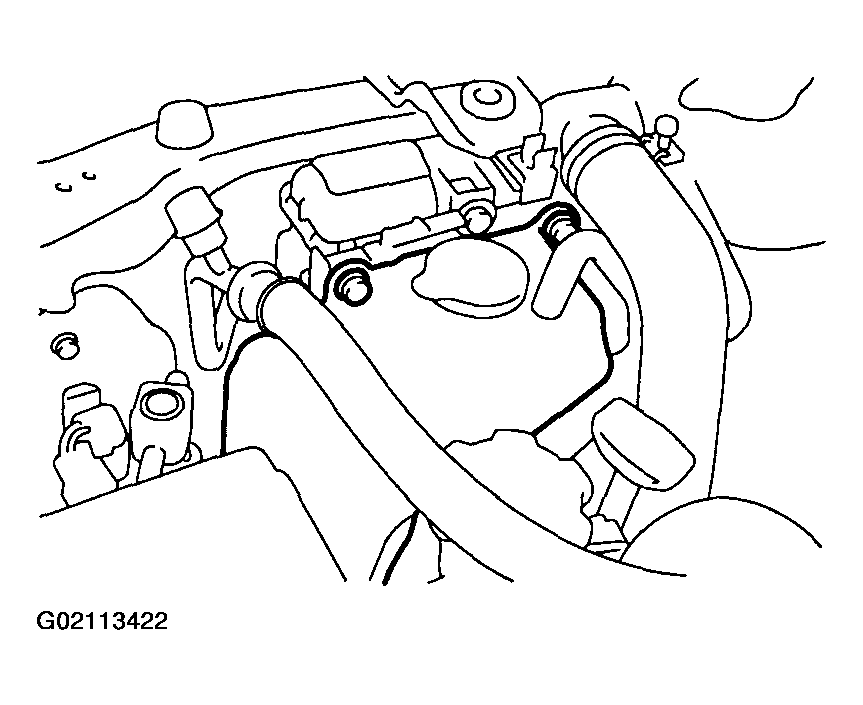

Install reservoir tank.
1. Tightening torque: 4.9 Nm (0.50 kgf-m, 3.6 ft-lb)
Fig 6: Installing Reservoir Tank

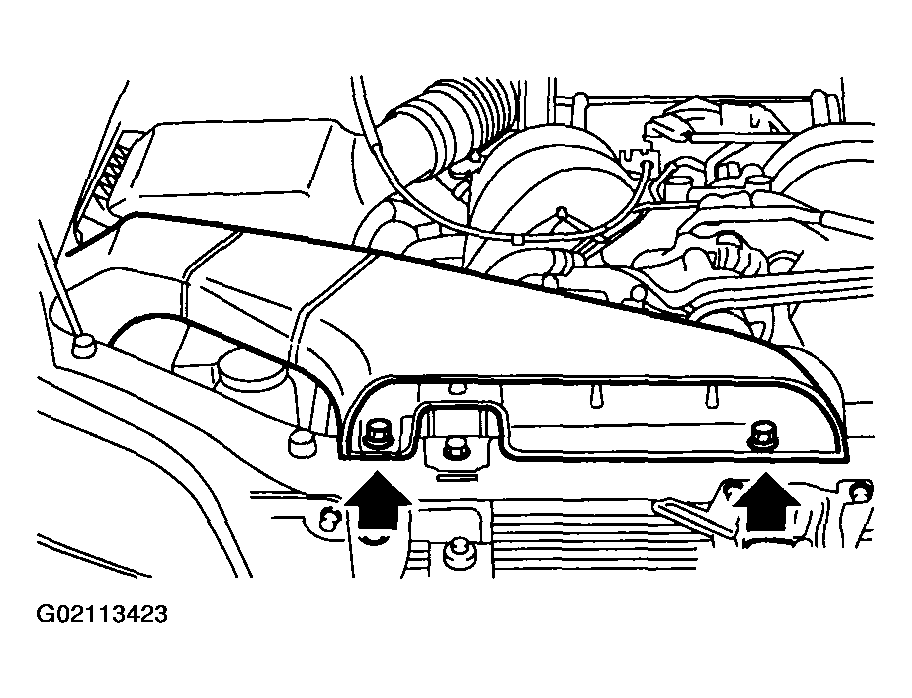

Install air intake duct.

Fig 7: Installing Air Intake Duct
Lift-up the vehicle.

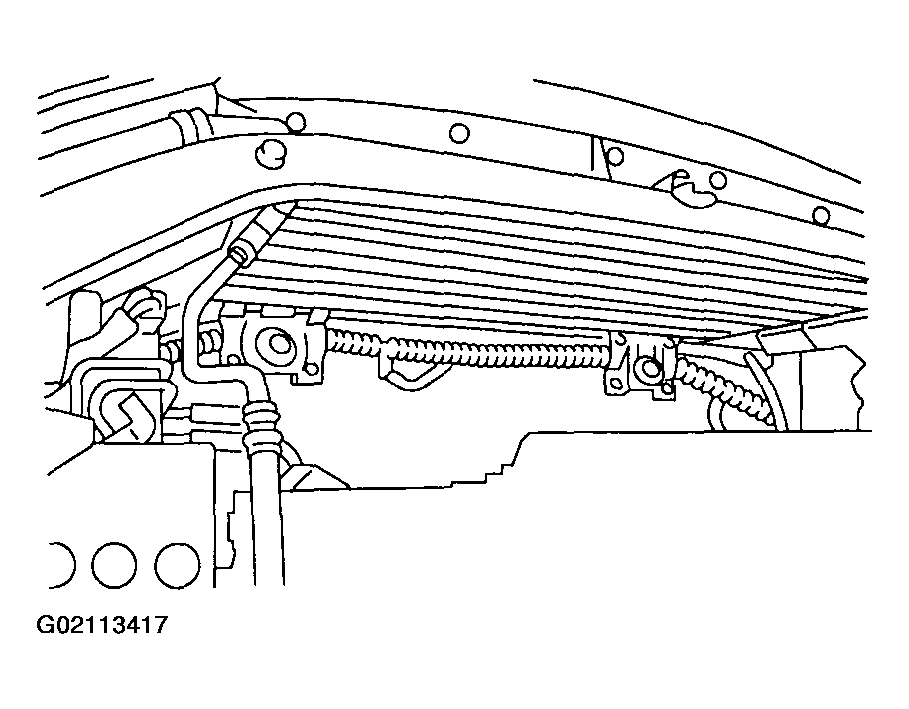

Connect ATF cooler hoses.

Fig 8: Connecting ATF Cooler Hoses

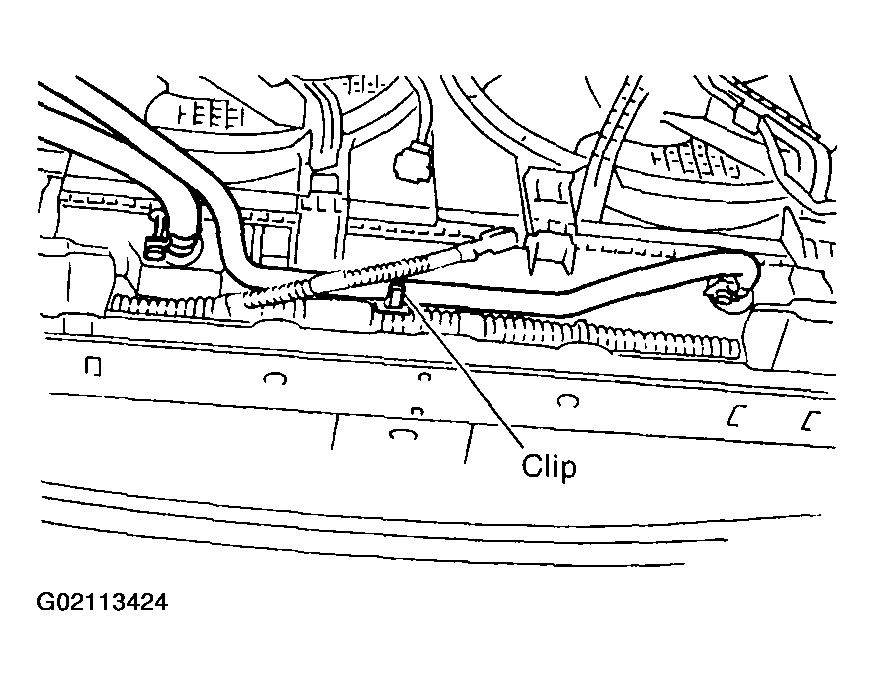

Connect connectors to radiator main fan motor (A) and sub fan motor (B).

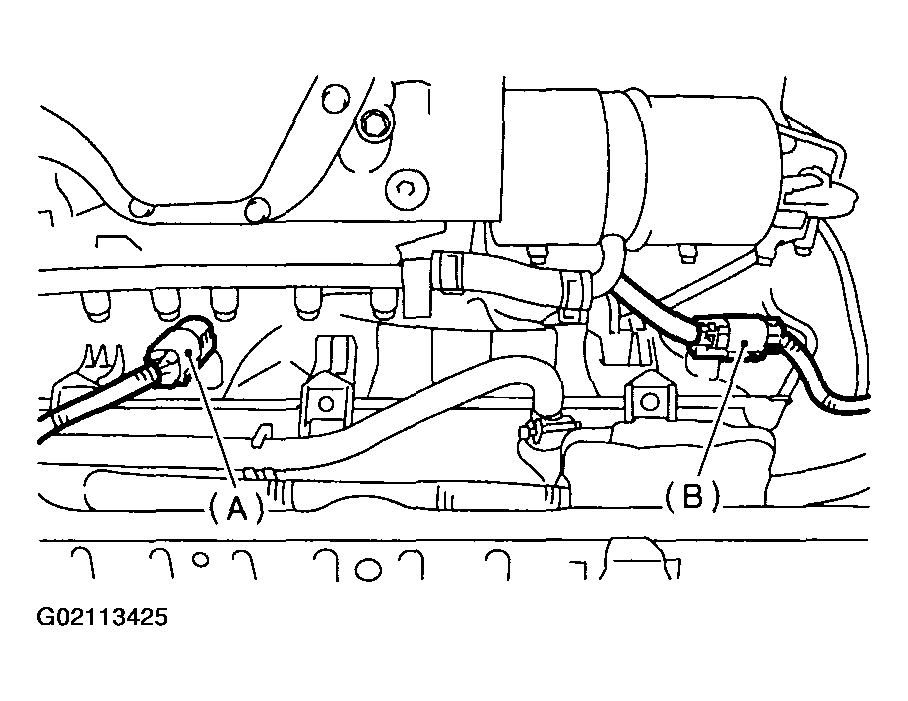

Fig 9: Connecting Connectors To Radiator Main Fan & Sub Fan Motor
Connect radiator outlet hose.

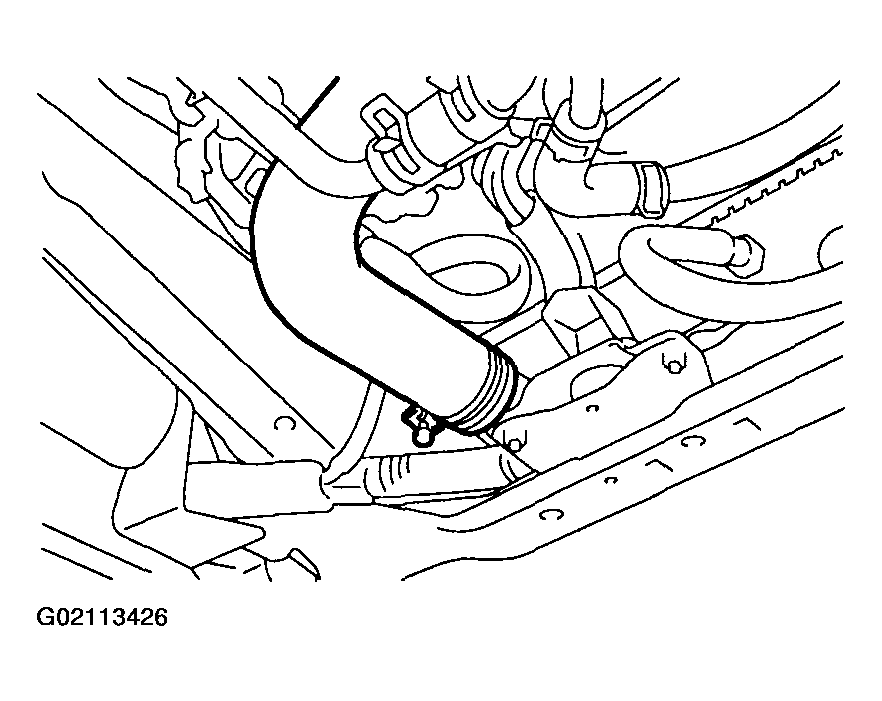

Fig 10: Connecting Radiator Outlet Hose

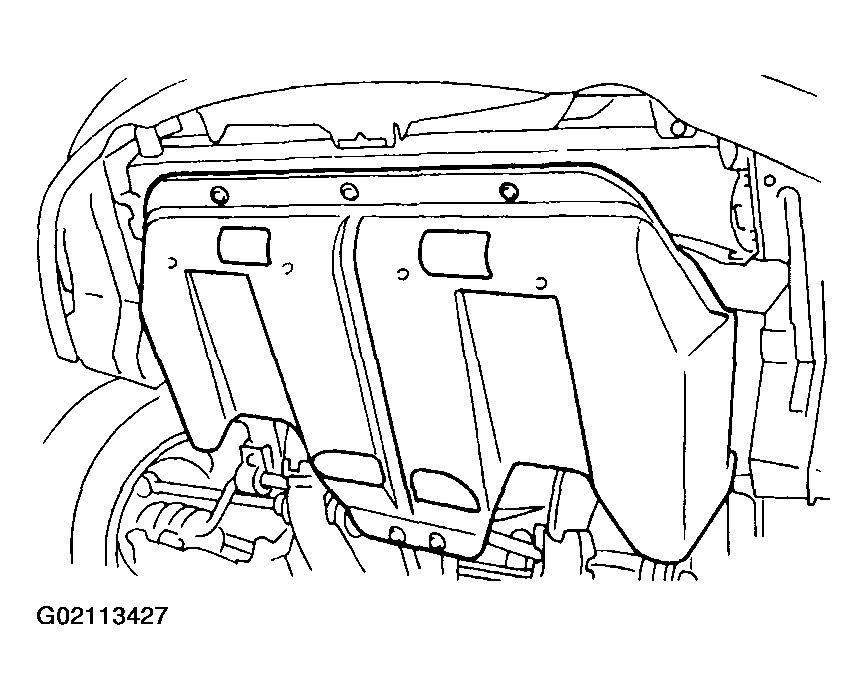

Install under cover.

Fig 11: Installing Under Cover
Lower the vehicle.

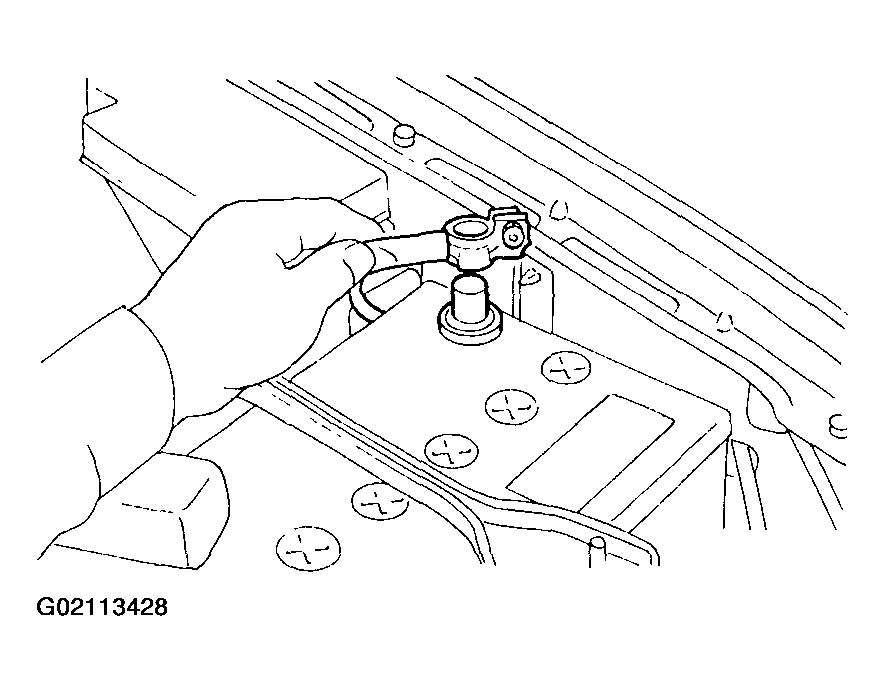

Connect battery ground cable.

Fig 12: Connecting Battery Ground Cable
Fill coolant. See FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Check ATF level. See REPLACEMENT , Automatic Transmission Fluid.
