Diagnostic Chart

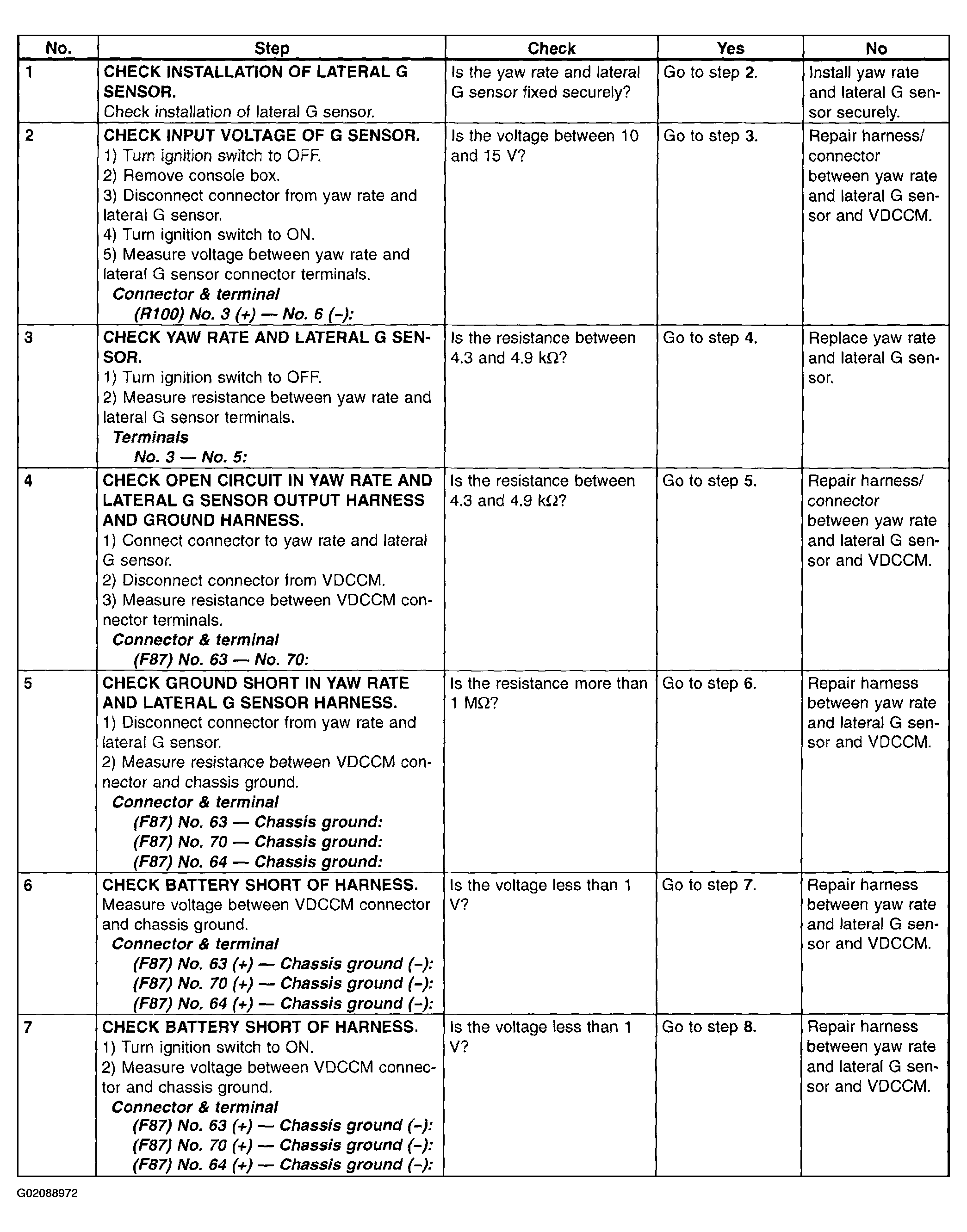

Fig 1: Diagnostic Chart - Trouble Code 73 - With Diagnostic Connector (1 Of 2)
G02088972

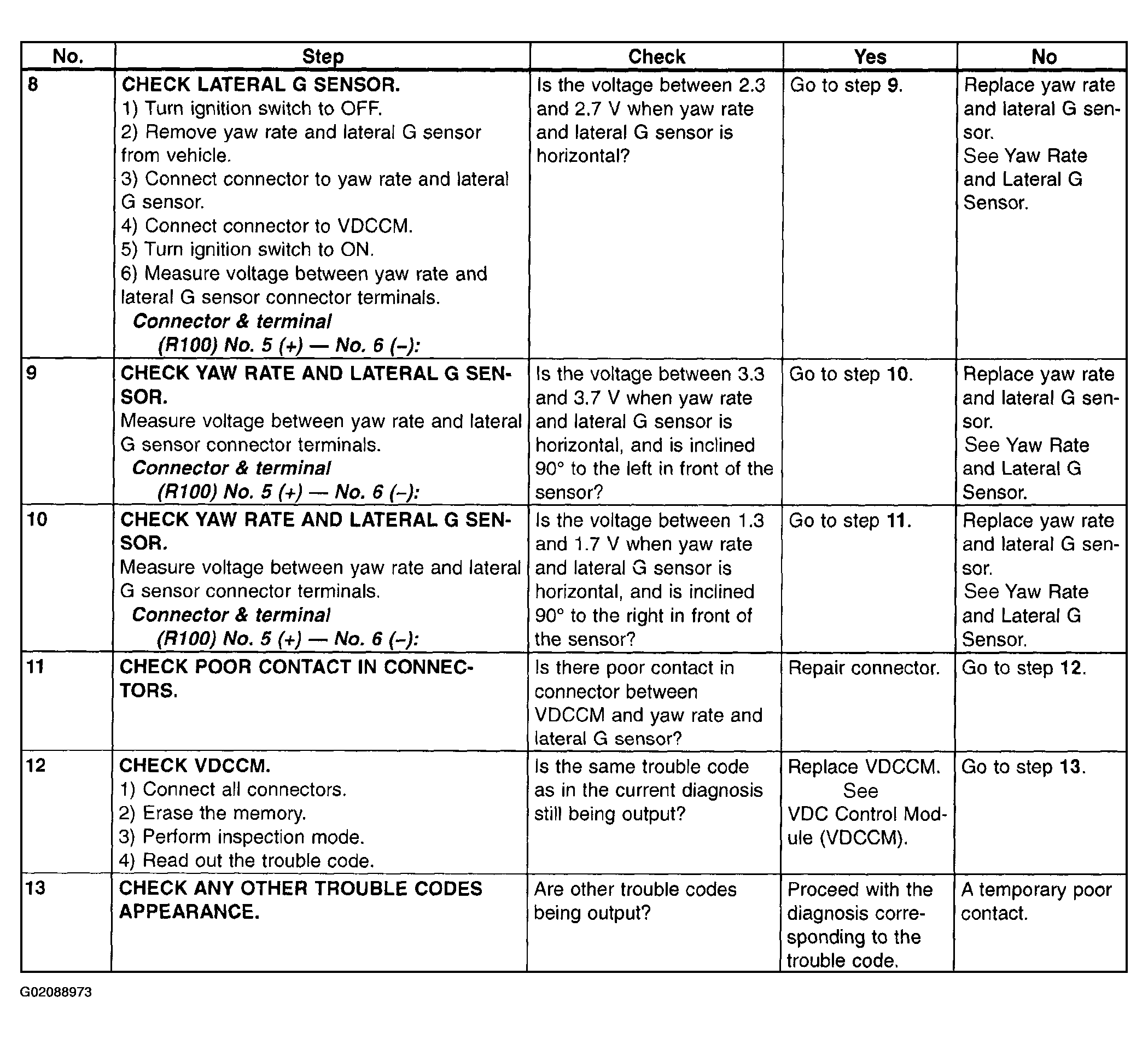

Fig 2: Diagnostic Chart - Trouble Code 73 - With Diagnostic Connector (2 Of 2)
G02088973
