Diagnostic Chart

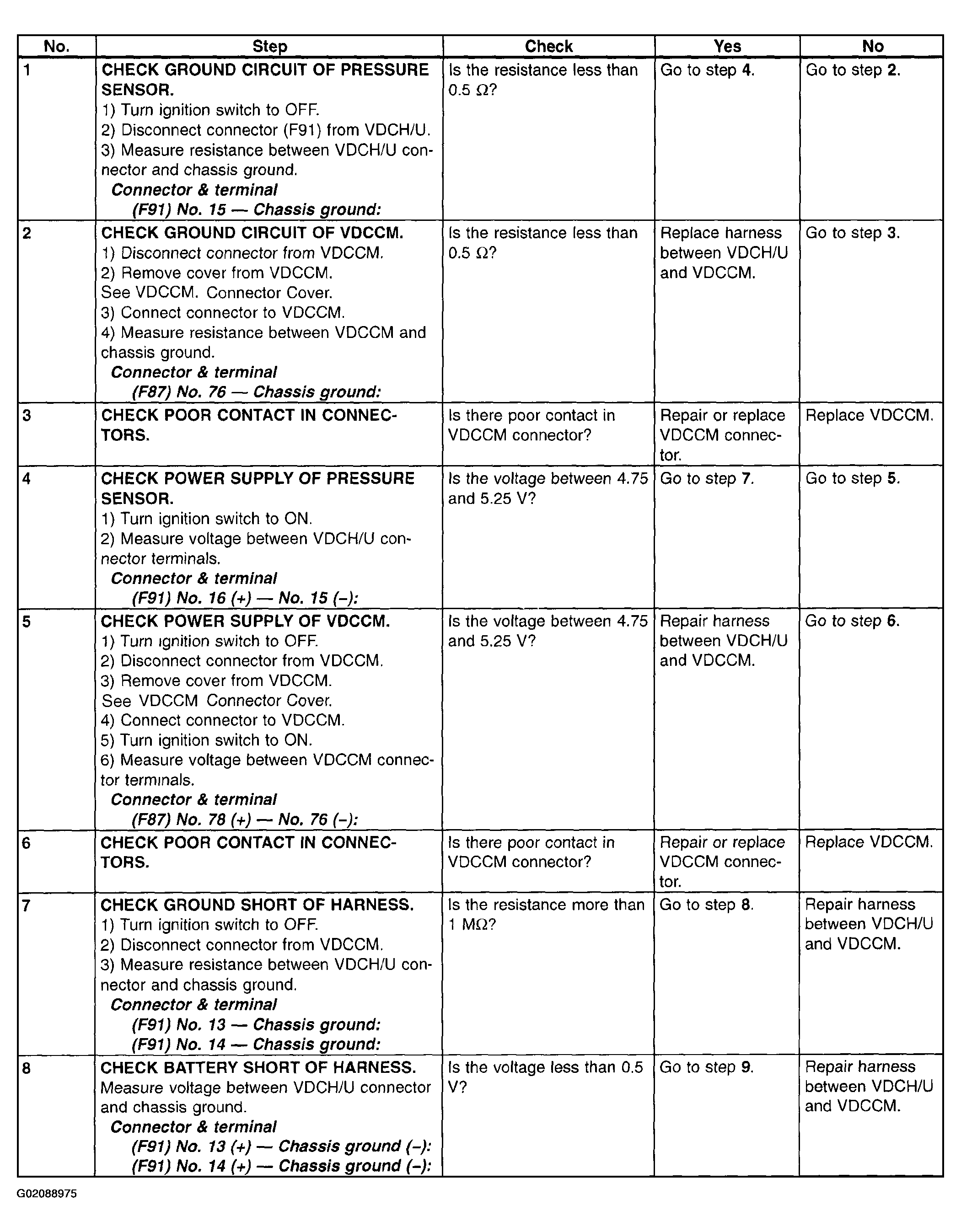

Fig 1: Diagnostic Chart - Trouble Code 74 - With Diagnostic Connector (1 Of 2)
G02088975

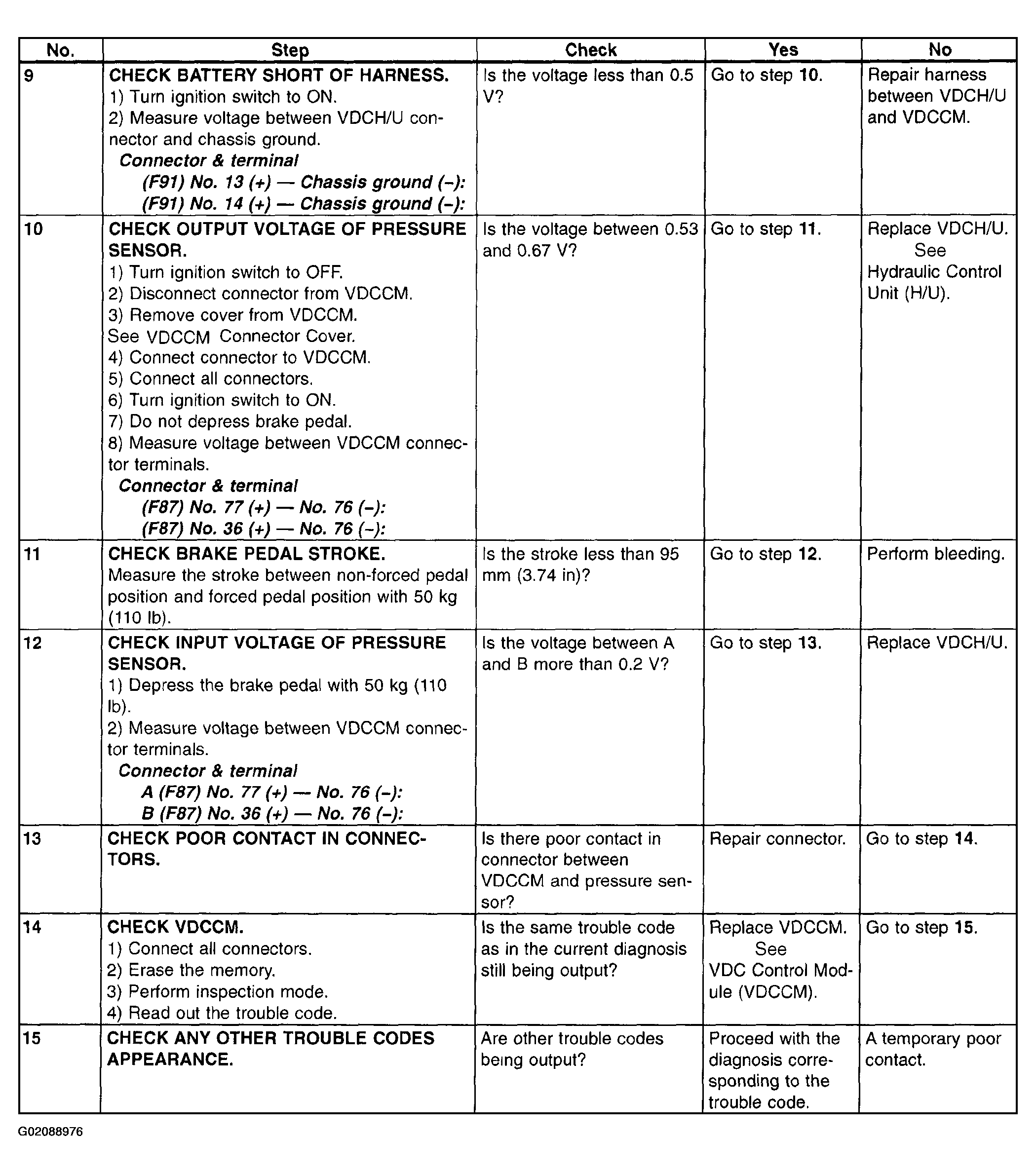

Fig 2: Diagnostic Chart - Trouble Code 74 - With Diagnostic Connector (2 Of 2)
G02088976
