Intake Manifold: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

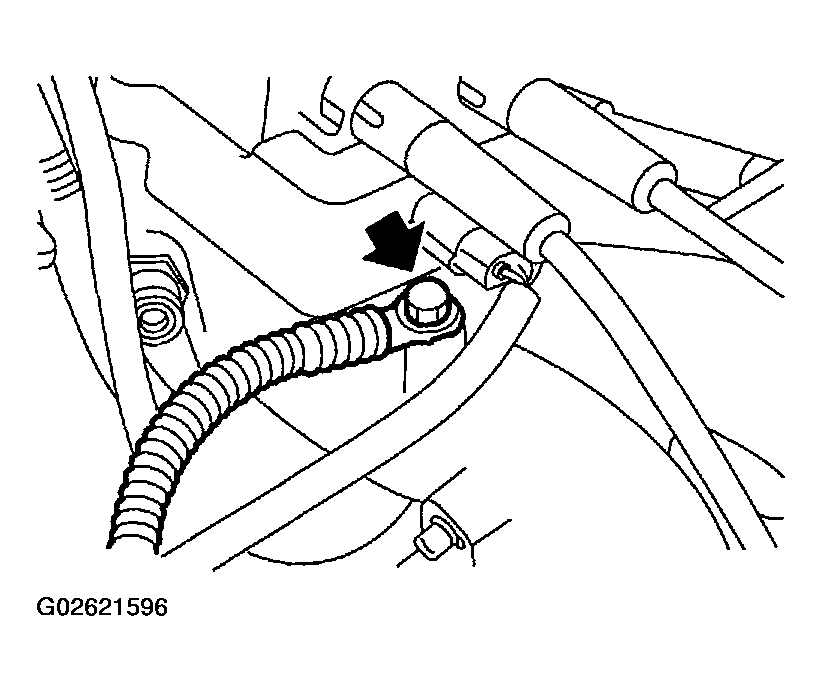

Disconnect the engine ground terminal from the intake manifold.

Fig 1: Disconnecting Engine Ground Terminal From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the ignition coil and ignitor assembly.

Fig 2: Disconnecting Connector From Ignition Coil & Ignitor Assembly
Courtesy of SUBARU OF AMERICA, INC.

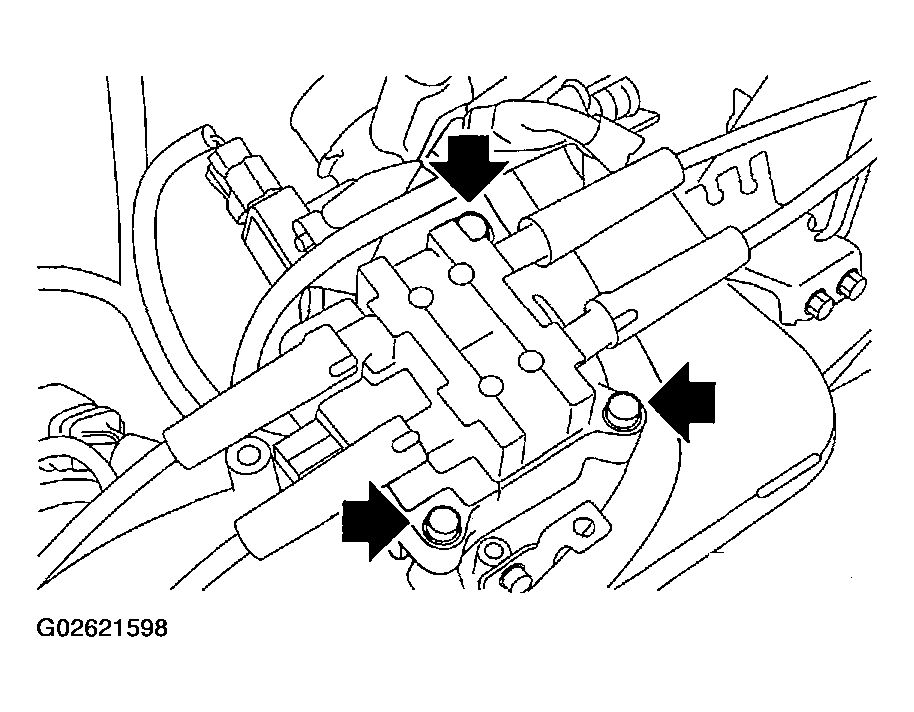

Remove the ignition coil and ignitor assembly.

Fig 3: Removing Ignition Coil & Ignitor Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body, see REMOVAL , Throttle Body.
Remove the air assist injector solenoid valve from the intake manifold.

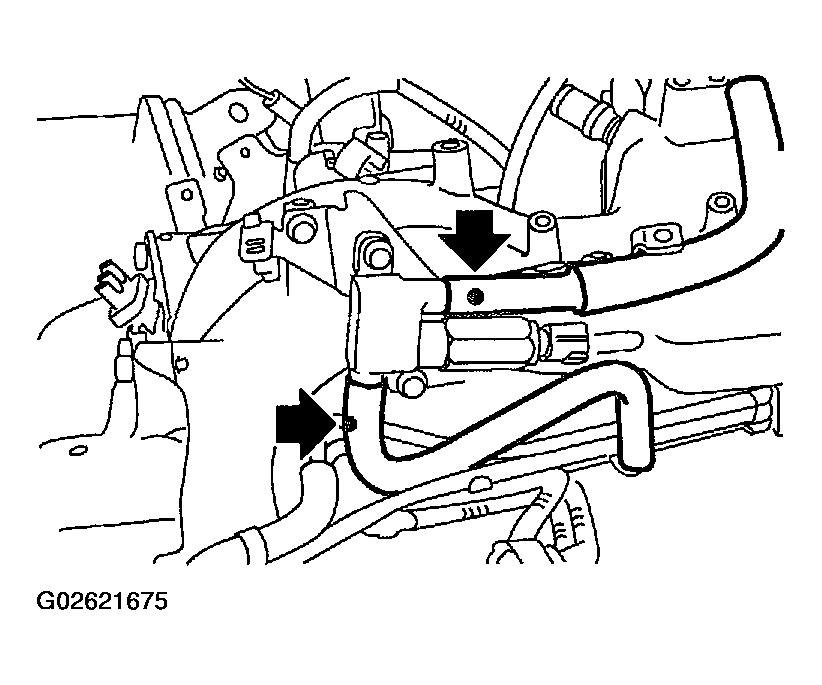

Disconnect the connector from the air assist injector solenoid valve and disconnect the air bypass hoses.

Fig 4: Disconnecting Connector & Air Bypass Hoses At Air Assist Injector Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the air assist injector solenoid valve from the intake manifold.

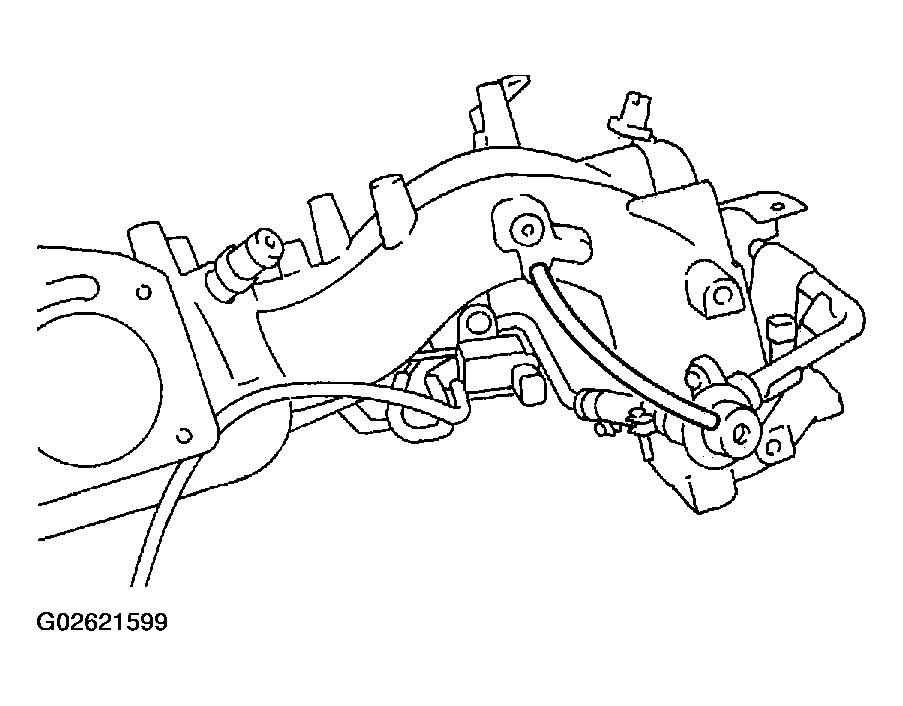

Fig 5: Removing Air Assist Injector Solenoid Valve From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the pressure regulator vacuum hose from the intake manifold.

Fig 6: Disconnecting Pressure Regulator Vacuum Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

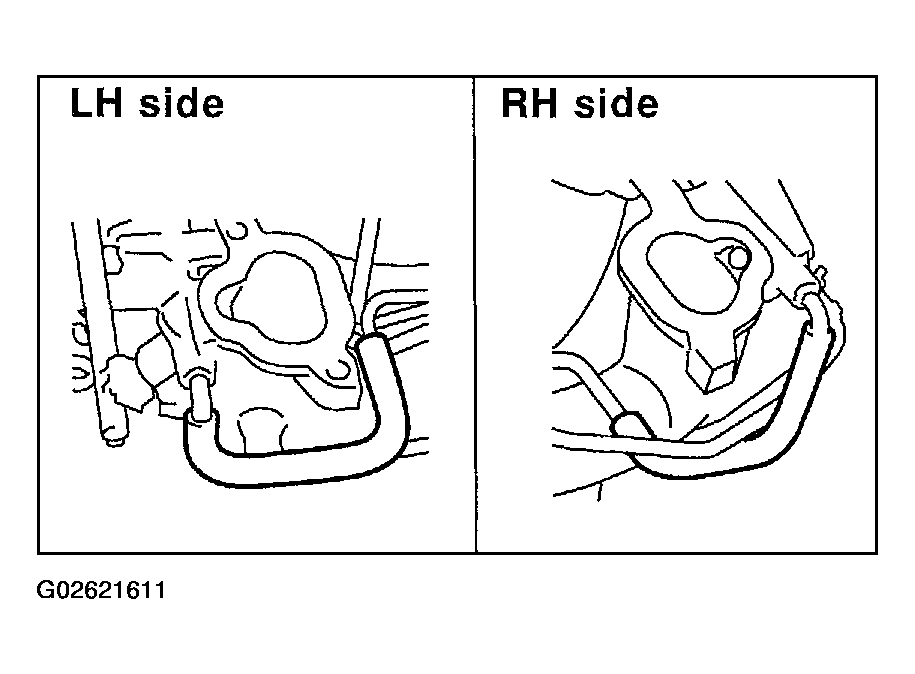

Remove the fuel pipe protector LH.

Fig 7: Removing Fuel Pipe Protector LH Side
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH.

Fig 8: Removing Fuel Pipe Protector RH Side
Courtesy of SUBARU OF AMERICA, INC.

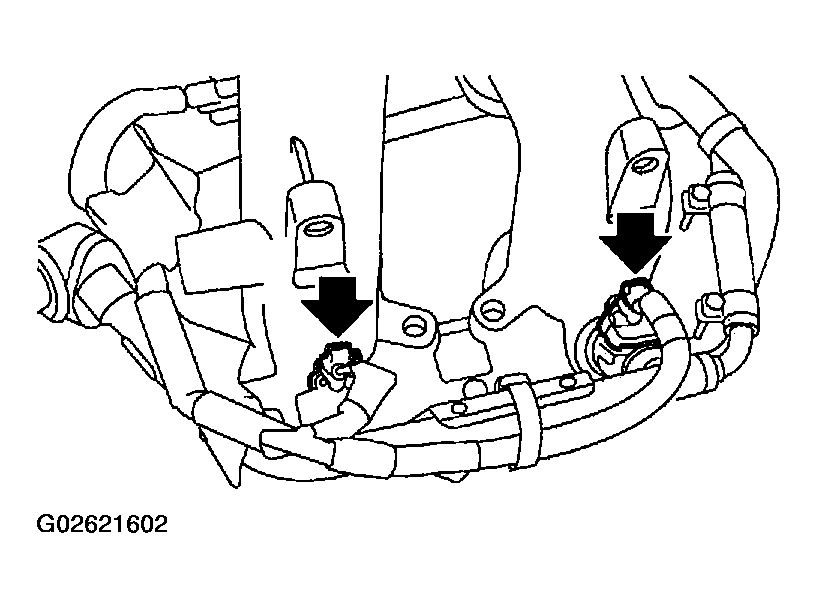

Disconnect the connectors from the fuel injectors.

Fig 9: Disconnecting Connectors From Fuel Injectors
Courtesy of SUBARU OF AMERICA, INC.

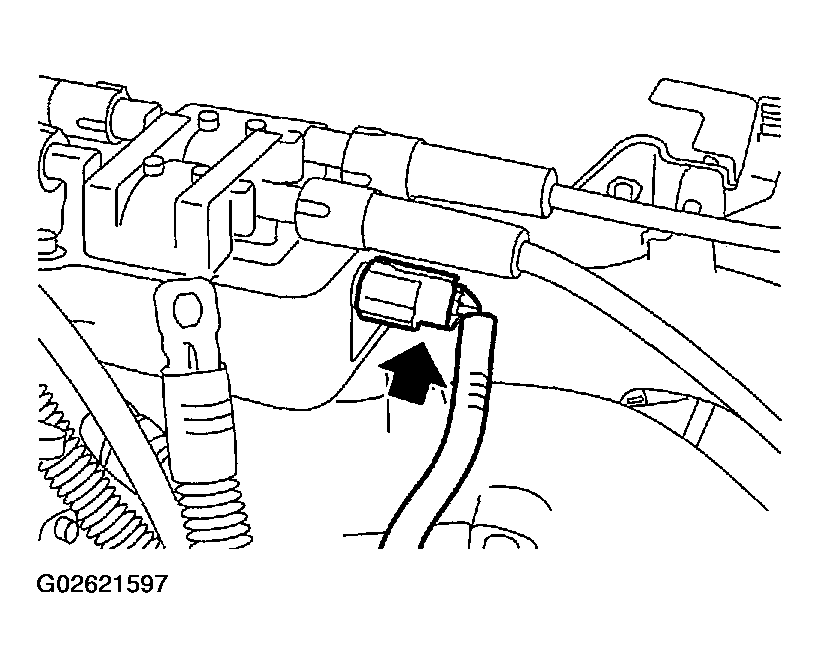

Disconnect the connector from the purge control solenoid valve.

Fig 10: Disconnecting Connector From Purge Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the air by-pass hose from the purge control solenoid valve.

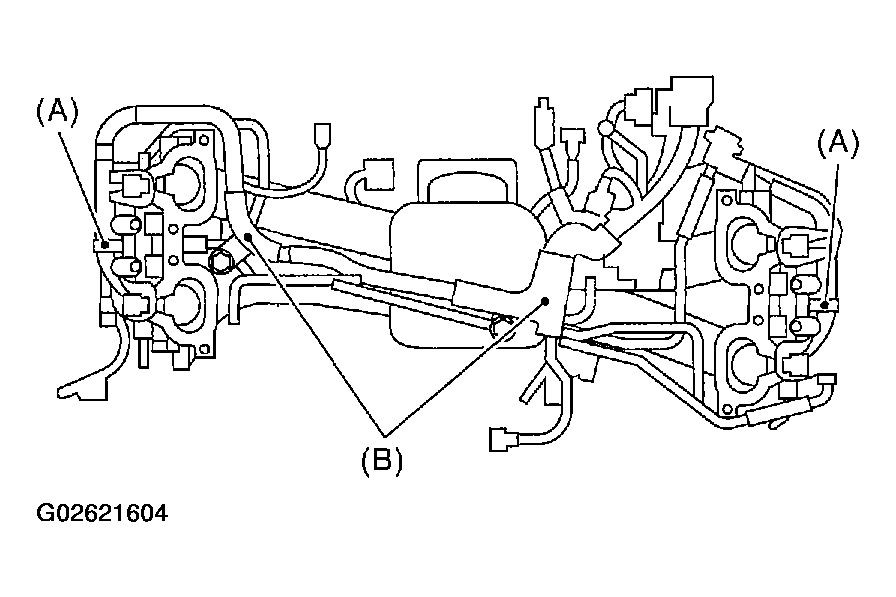

Remove the harness bands (A) and harness bracket (B) which hold engine harness onto the intake manifold.

Fig 11: Removing Harness Bands & Harness Bracket Holding Engine Harness Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from the intake manifold.
Remove the purge control solenoid valve.

Fig 12: Removing Purge Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.

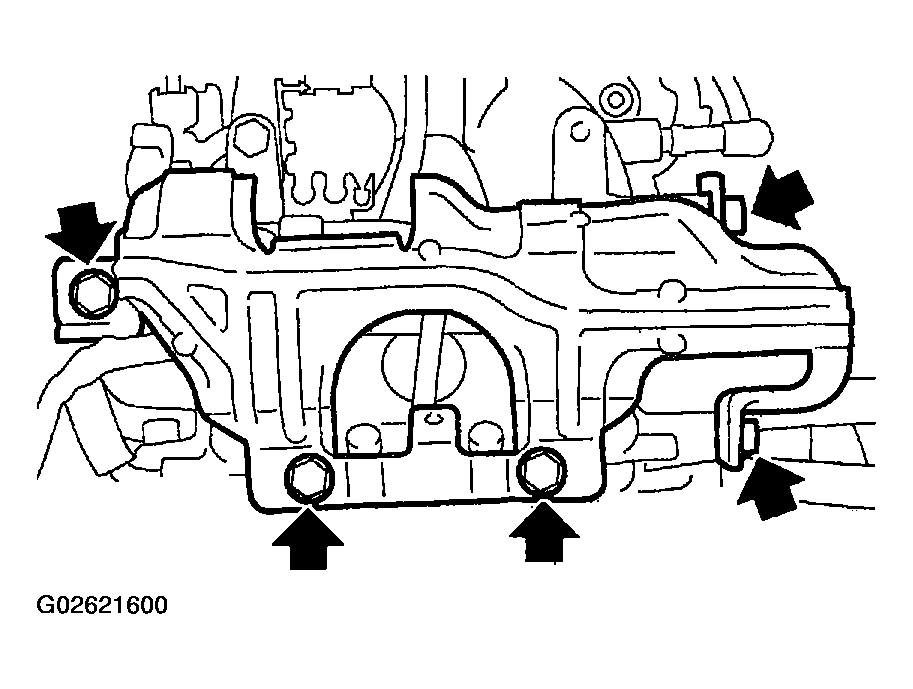

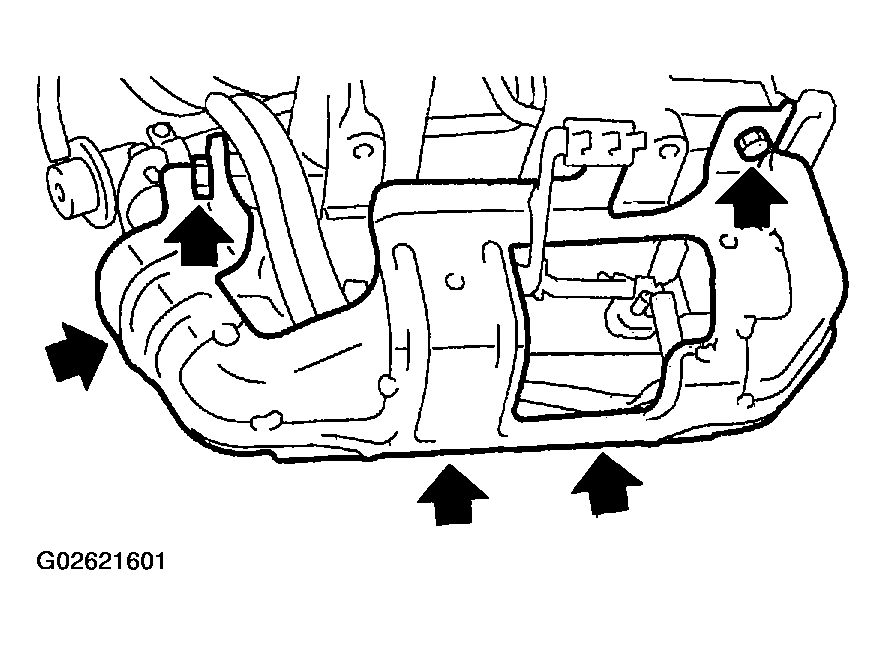

Remove the bolts which installs injector pipe on the intake manifold as shown in figure.

Fig 13: Removing Bolts From Injector Pipe On Intake Manifold.
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs injector pipe on the intake manifold.

Fig 14: Removing Bolt From Injector Pipe On Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

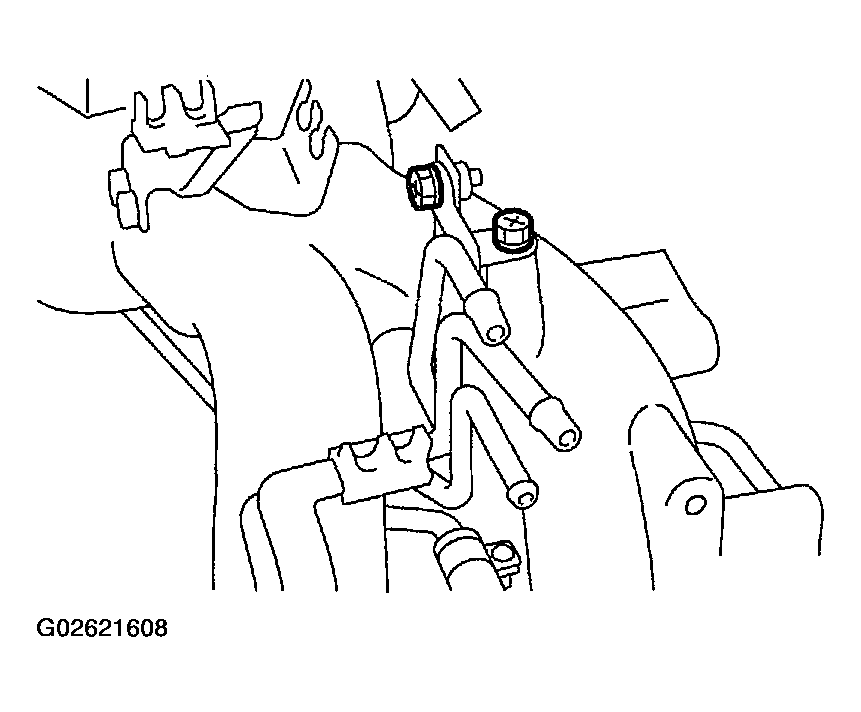

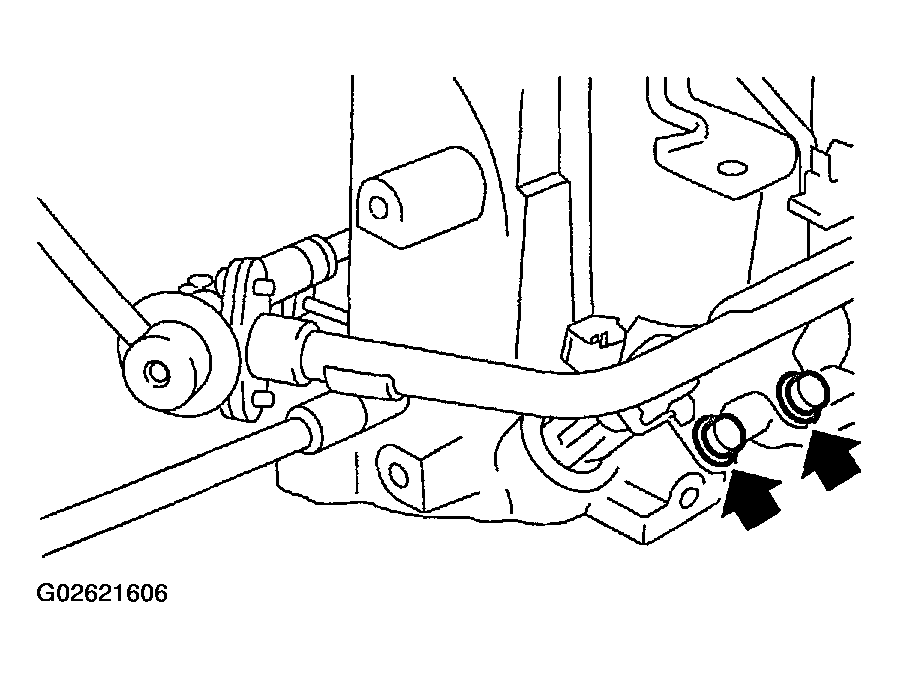

Remove the two bolts which hold fuel pipes on the left side of intake manifold.

Fig 15: Removing Bolts From Fuel Pipes On Left Side Of Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

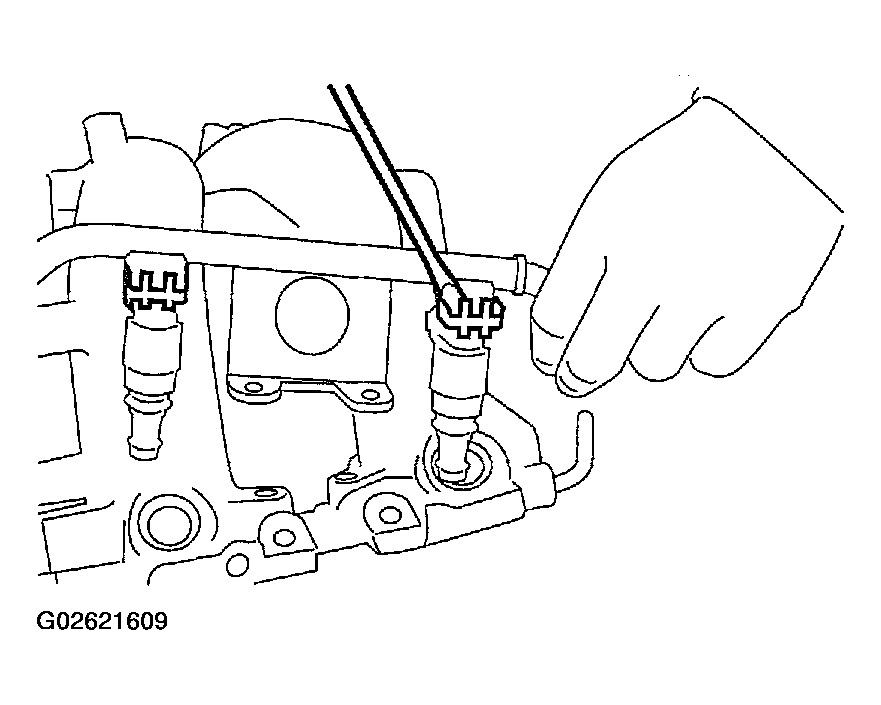

1. Remove the fuel injector securing clip.

  Fig 16: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the fuel injector while lifting up the fuel injector pipe.

  Fig 17: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the air by-pass hoses from the intake manifold.

Fig 18: Disconnecting Air By-Pass Hoses From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

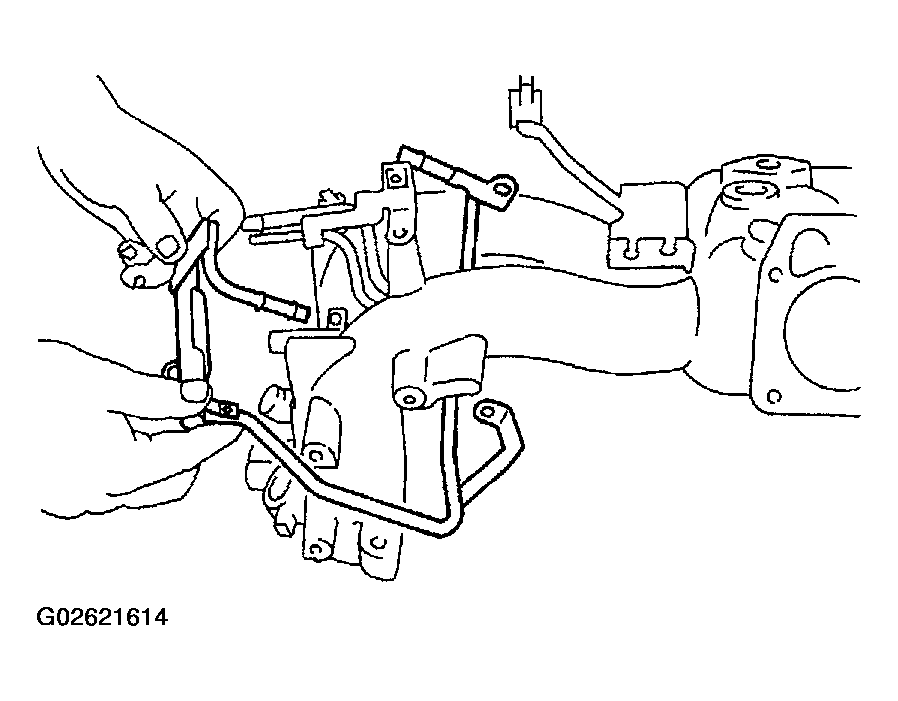

Loosen the clamp which holds the front left side fuel hose to the injector pipe and remove the pipe.

Fig 19: Loosening Clamp Holding Front Left Side Fuel Hose To Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp which holds the front right side fuel hose to the injector pipe and remove the pipe from fuel hose.

Fig 20: Loosening Clamp Holding Front Right Side Fuel Hose To Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector pipe.

Fig 21: Removing Fuel Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.

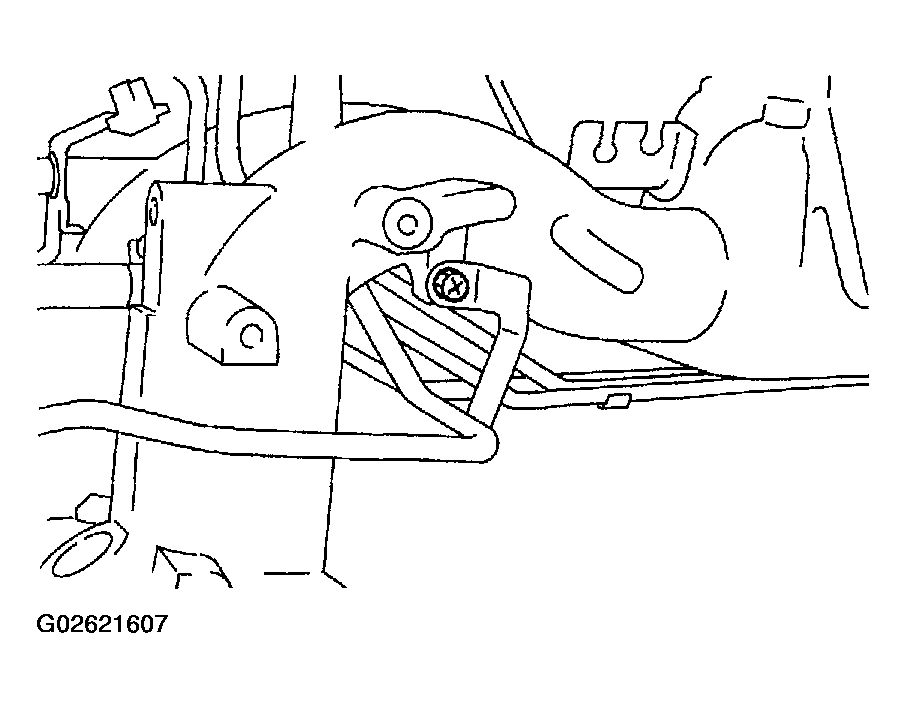

Remove the bolt which installs the fuel pipes on the intake manifold.

Fig 22: Removing Bolt From Fuel Pipes On Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

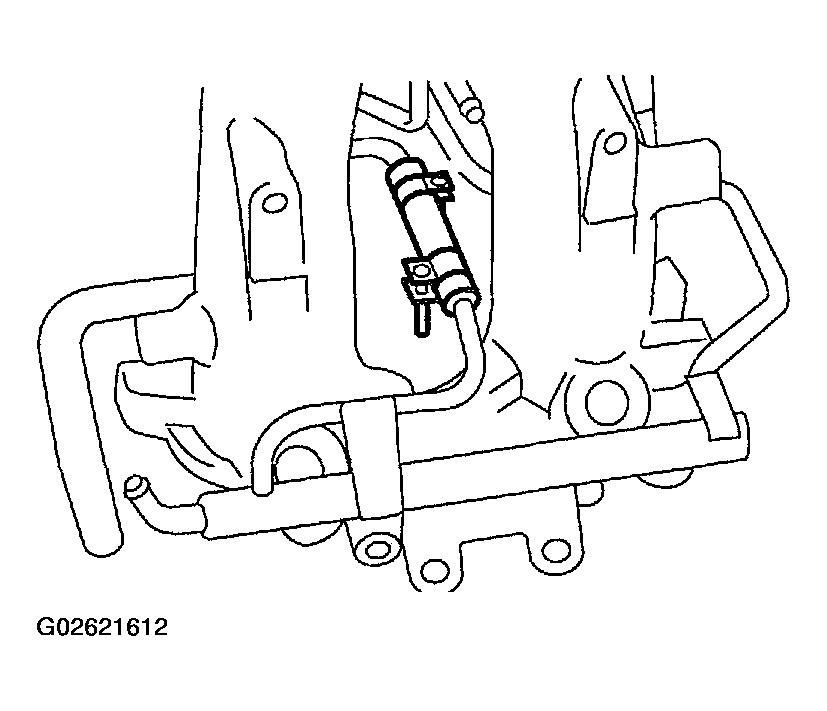

Remove the fuel pipe assembly and pressure regulator, from the intake manifold.
