Engine Control Module: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

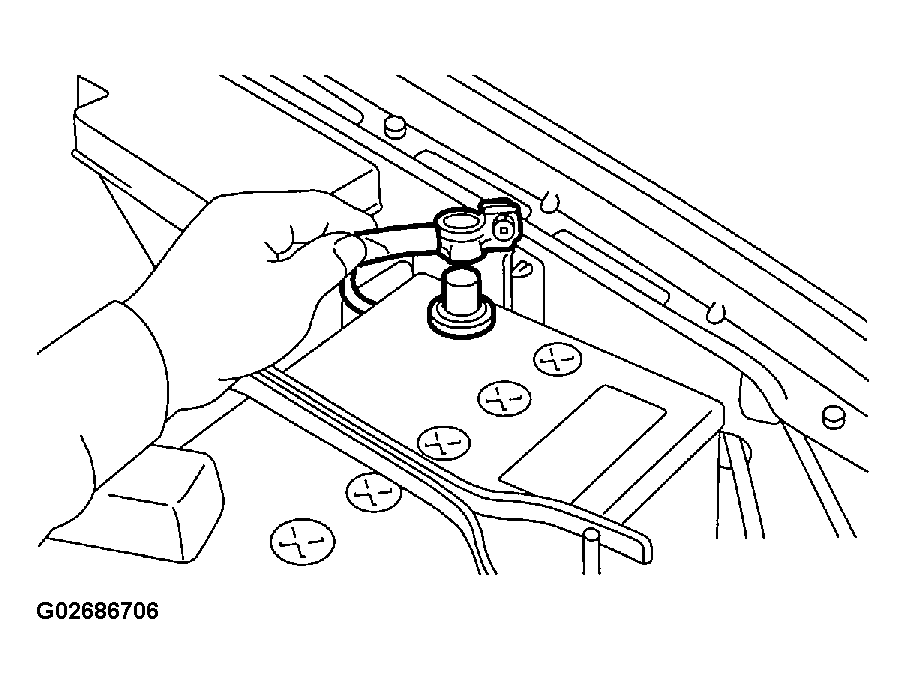

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim of passenger side. See REMOVAL , Lower Inner Trim.
Detach the floor mat of the front passenger seat.
Remove the protect cover.

Fig 2: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts (A) which hold ECM to the bracket.
Remove the clip (B) from the bracket.

Fig 3: Removing Nuts Holding ECM To Bracket & Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors and take out the ECM.
