Fuel Level Sensor: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

NOTE: Fuel level sensor is built in fuel pump assembly.

Remove the fuel pump assembly, see REMOVAL , Fuel Pump.
Disconnect the connector from the fuel pump bracket.

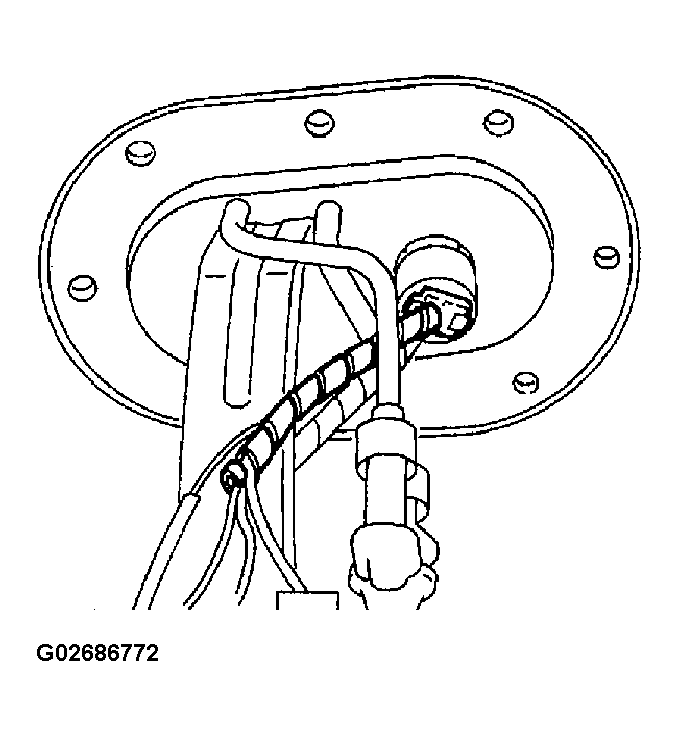

Fig 1: Disconnecting Connector From Fuel Pump Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the fuel level sensor on mounting bracket.

Fig 2: Removing Bolt Which Installs Fuel Level Sensor Onto Mounting Bracket
Courtesy of SUBARU OF AMERICA, INC.
