Fuel Sub Level Sensor: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Disconnect the battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain the fuel from the fuel tank, see DRAINING FUEL , Fuel. Set a container under the vehicle and remove drain plugs from fuel tank.

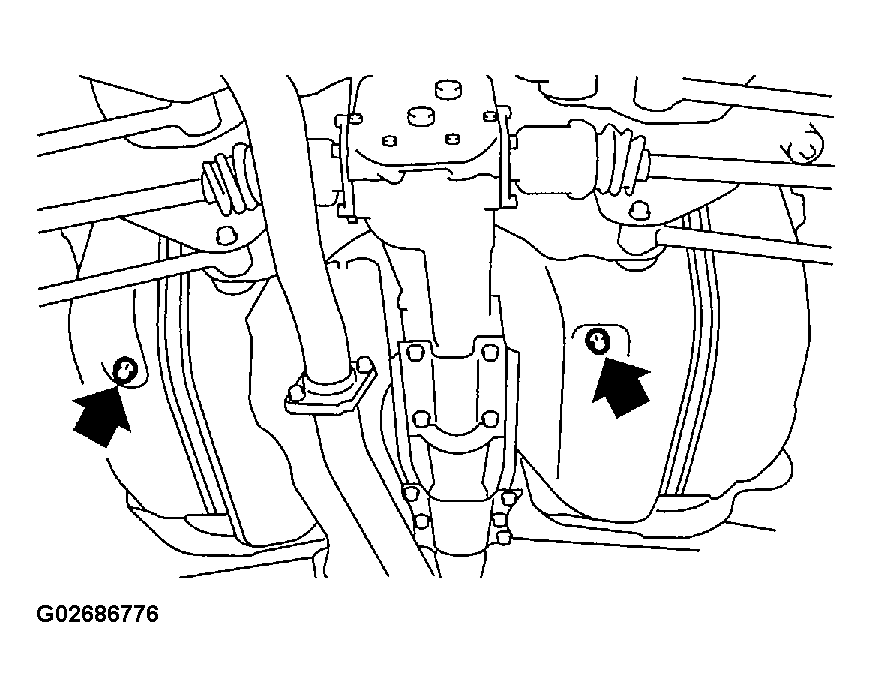

Fig 2: Removing Drain Plugs From Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plugs.
1. Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

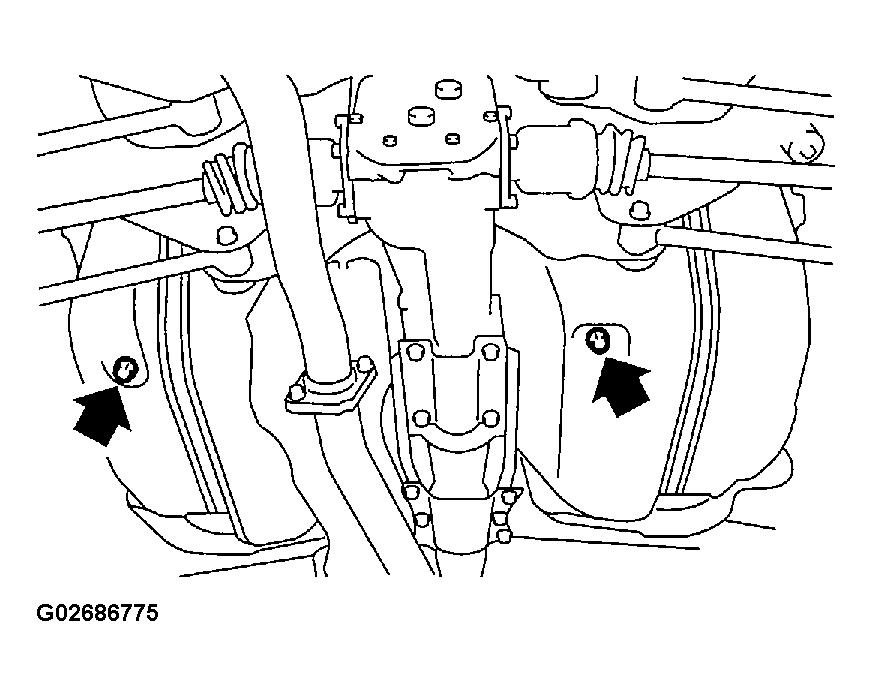

Fig 3: Tightening Fuel Tank Drain Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat.
Remove the service hole cover.

Fig 4: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub meter.
Disconnect the fuel jet pump hose.

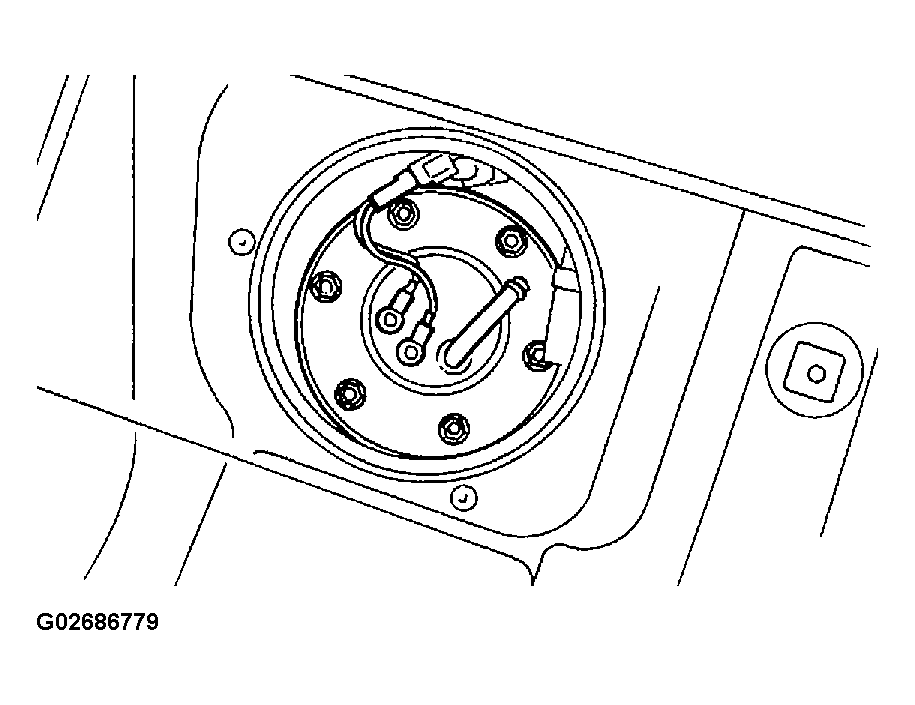

Fig 5: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which installs the fuel sub meter unit on fuel tank.

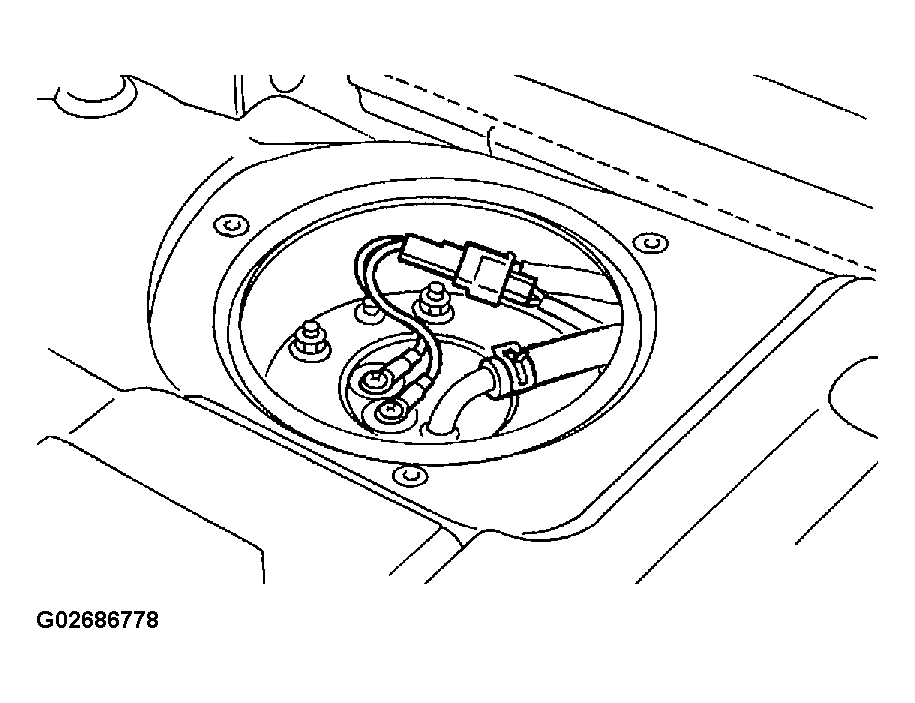

Fig 6: Removing Bolts Which Installs Fuel Sub Meter Unit On Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub meter unit.

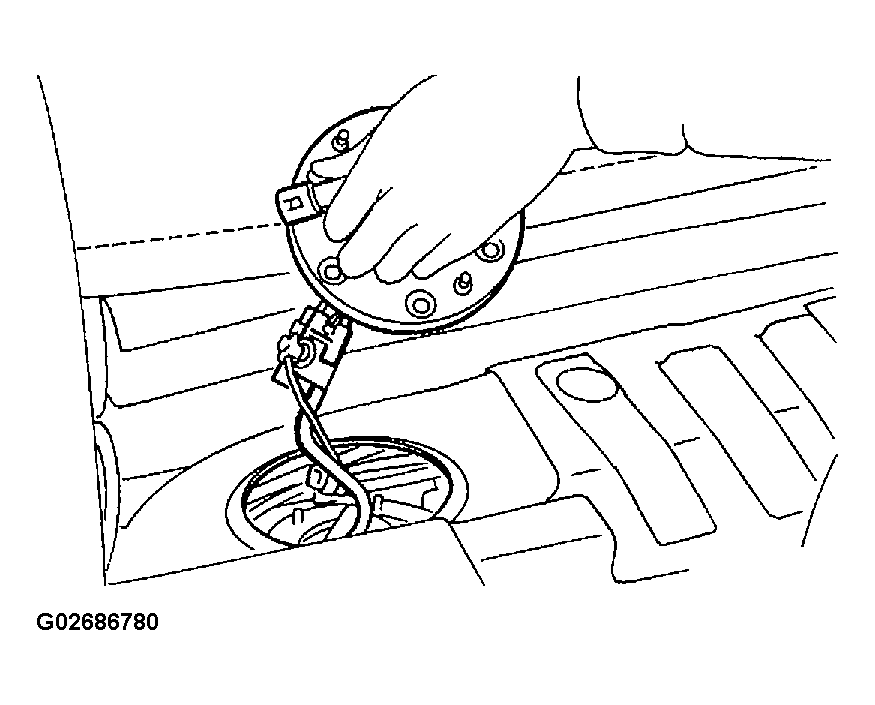

Fig 7: Removing Fuel Sub Meter Unit
Courtesy of SUBARU OF AMERICA, INC.
