Front Fog Light Relay

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Measure front fog light relay resistance between terminals while connecting terminal No. 4 to battery positive terminal and terminal No. 3 to battery ground terminal.

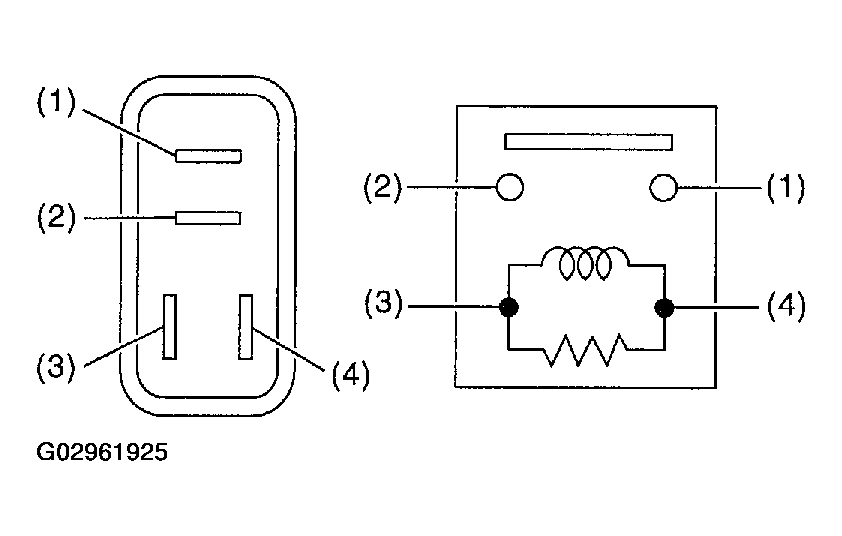

Fig 1: Measuring Front Fog Light Relay Resistance Between Terminals
G02961925Courtesy of SUBARU OF AMERICA, INC.
FRONT FOG LIGHT RELAY RESISTANCE CHART

Current Terminal No. Standard
Flow 1 and 2 Less than 1 ohm
No flow More than 1 Mohm
