Front Fog Light Switch
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

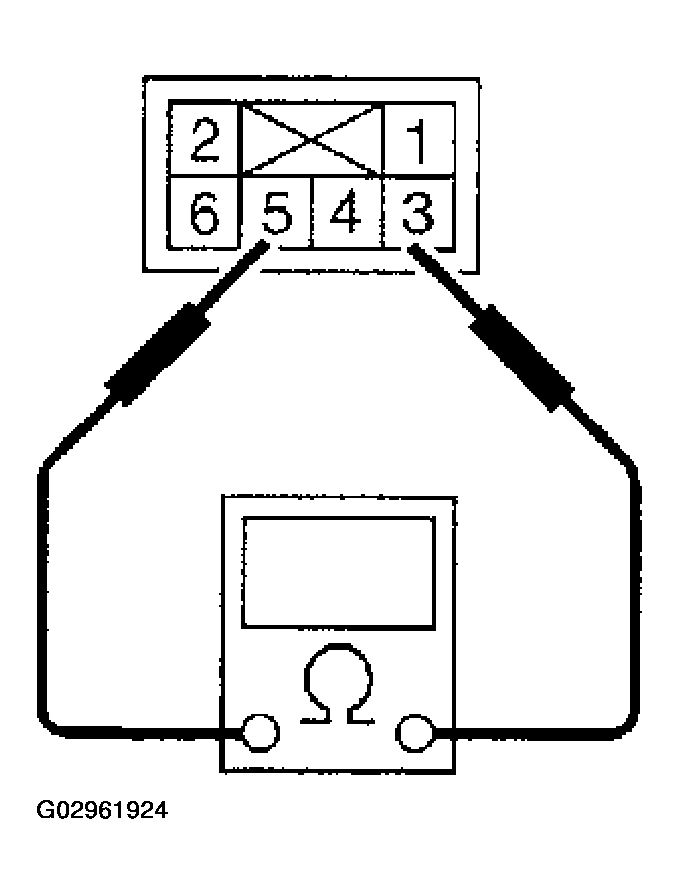

Measure front fog light switch resistance.
Courtesy of SUBARU OF AMERICA, INC. FRONT FOG LIGHT SWITCH RESISTANCE CHART
| Switch position |
Terminal No. |
Standard |
| OFF |
- |
More than 1 Mohm |
| ON |
3 and 5 |
Less than 1ohm |
