Stop Light Switch

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Measure stop light switch resistance

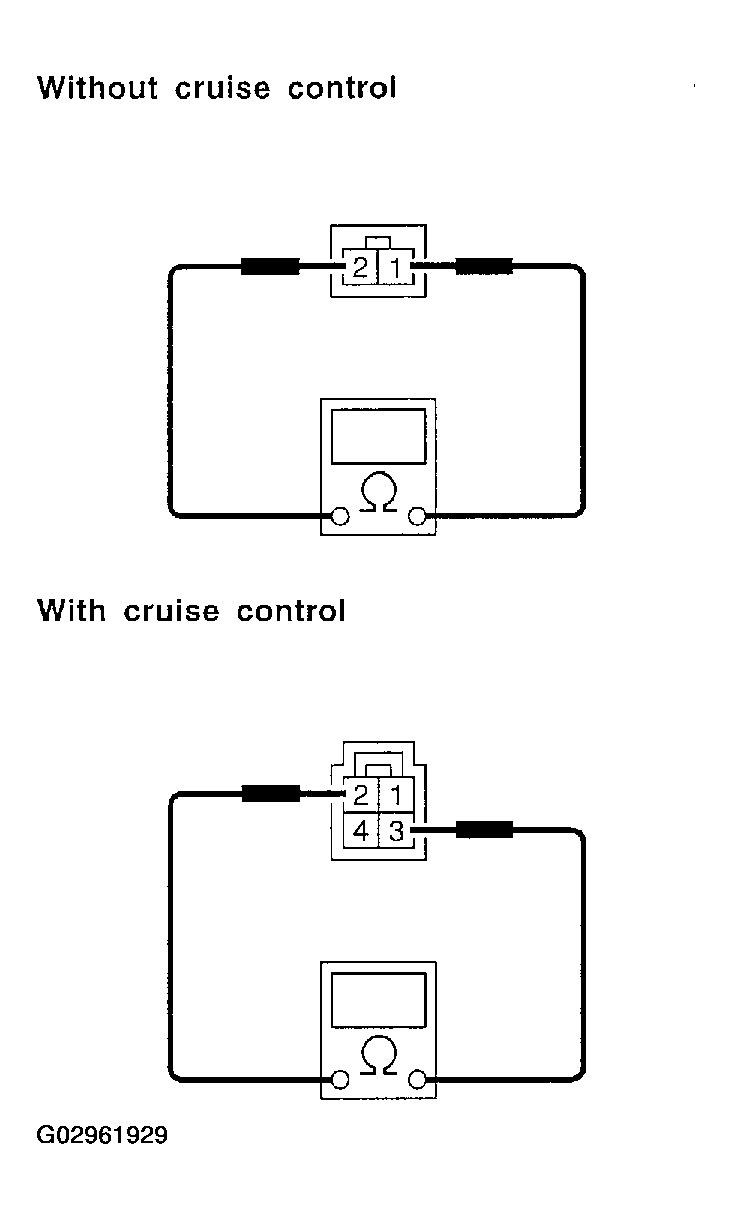

Fig 1: Measuring Stop Light Switch Resistance
G02961929Courtesy of SUBARU OF AMERICA, INC.

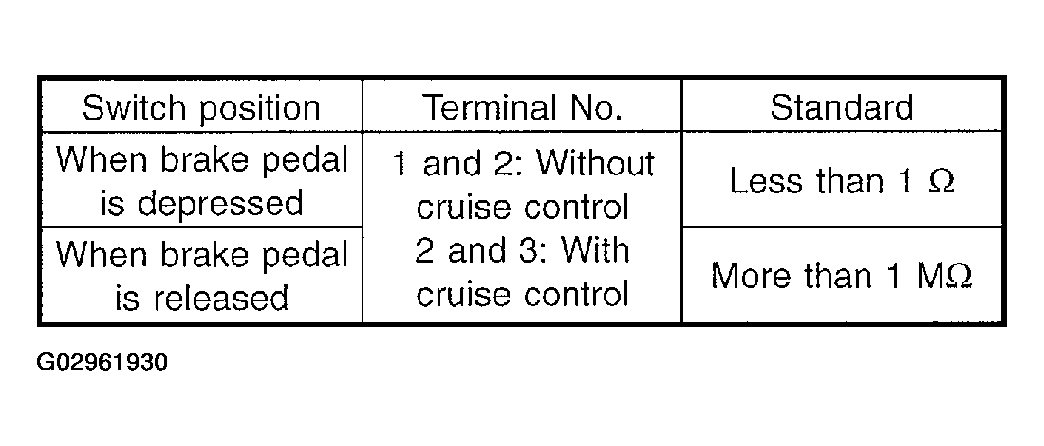

Fig 2: Stop Light Switch Resistance Chart
G02961930Courtesy of SUBARU OF AMERICA, INC.
