Freeze Frame Data

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Data stored at the time of trouble occurrence is shown on display.
Each time trouble occurs, the latest information is stored in the freeze frame data in memory.
If freeze frame data is not properly stored in memory (due to a drop in ABSCM power supply, etc.), a DTC, preceded by a question mark "?", appears on the select monitor display. This shows it may be an unreliable reading.
In case of no trouble code, the initial value of freeze frame data will be displayed.

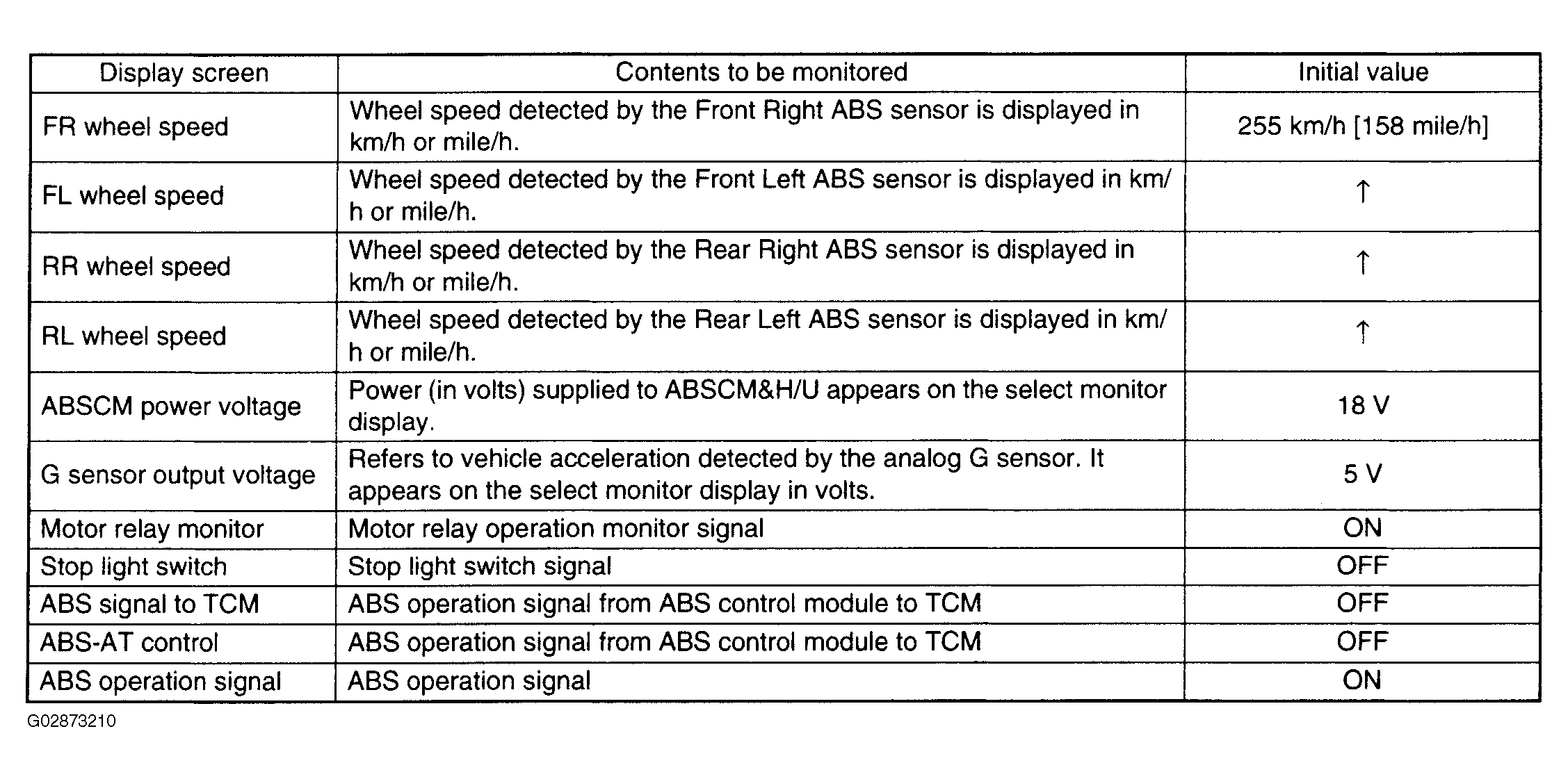

Fig 1: Freeze Frame Data Description Chart

Courtesy of SUBARU OF AMERICA, INC.
