WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

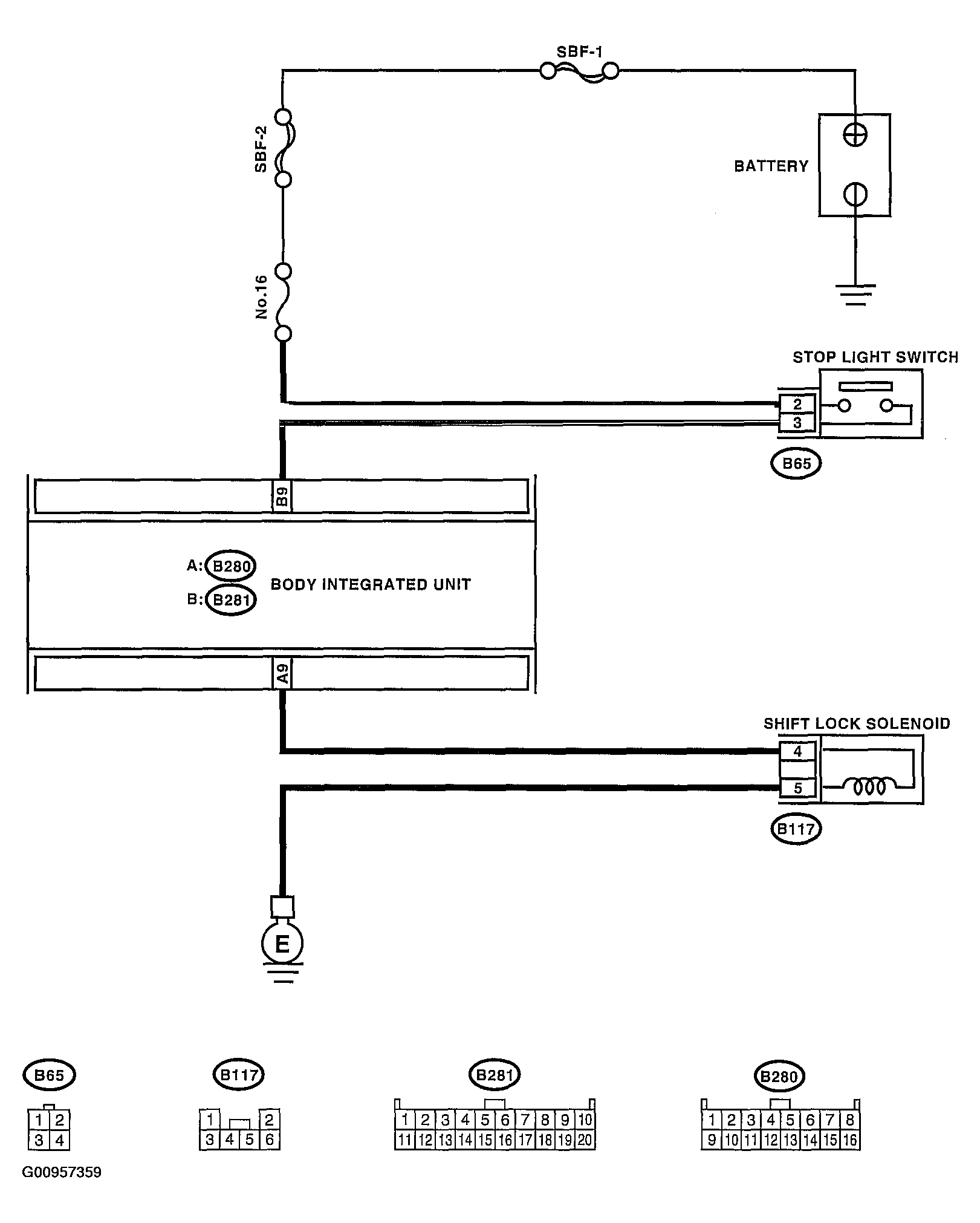

Fig 1: Schematic - Select Lever Cannot Be Shift Locked
Courtesy of SUBARU OF AMERICA, INC.

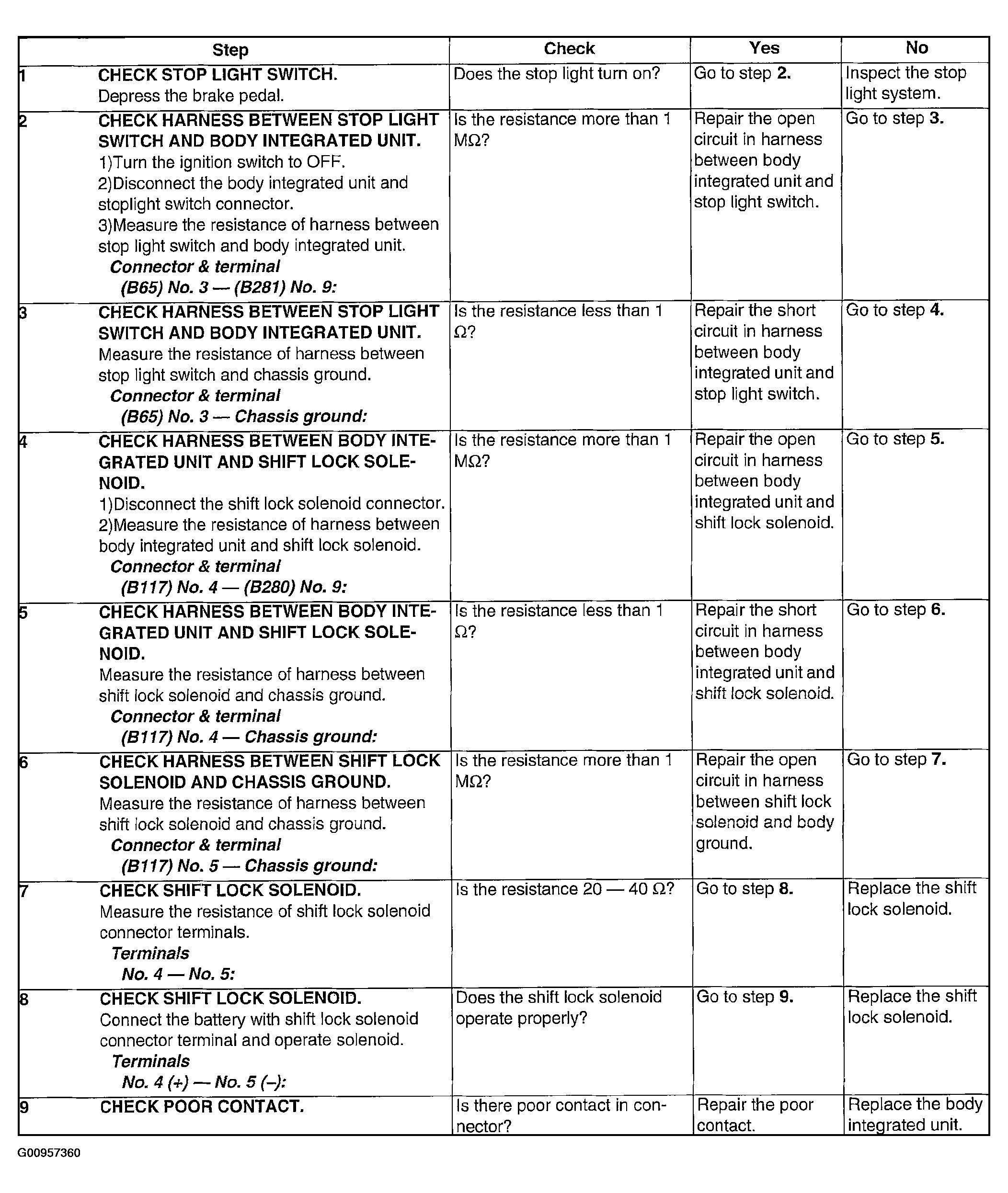

Fig 2: Select Lever Cannot Be Shift Locked Inspection Chart
