Section 231 (Power Assisted System (Power Steering)): General Description: Specifications

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

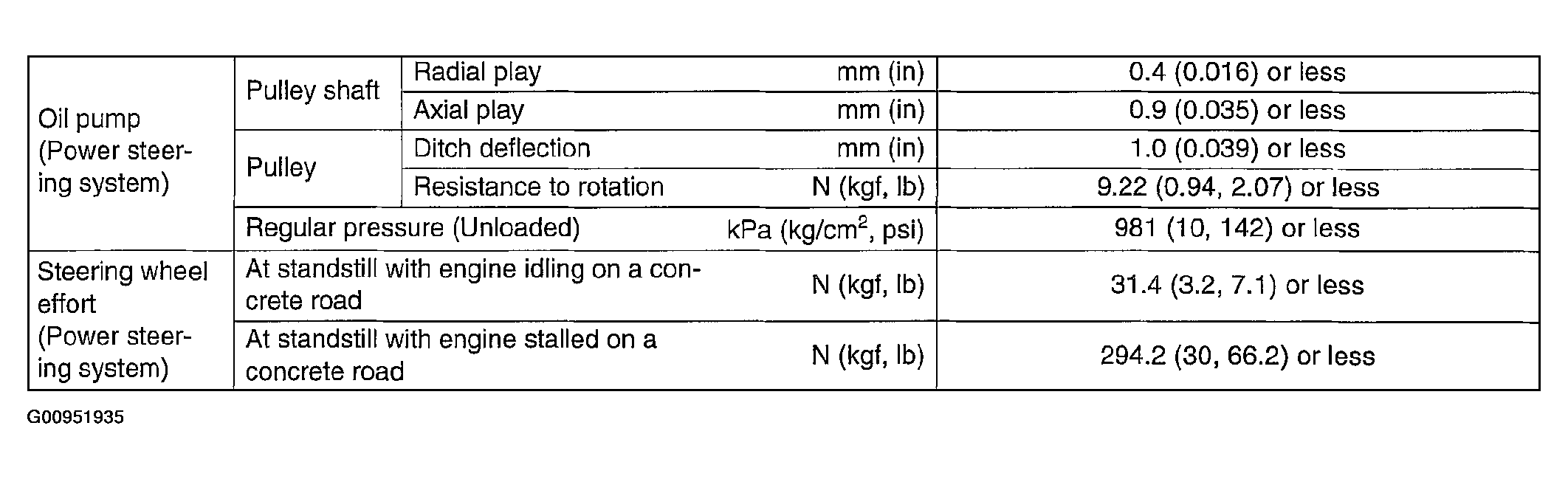

Fig 1: General Description Specifications Chart (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

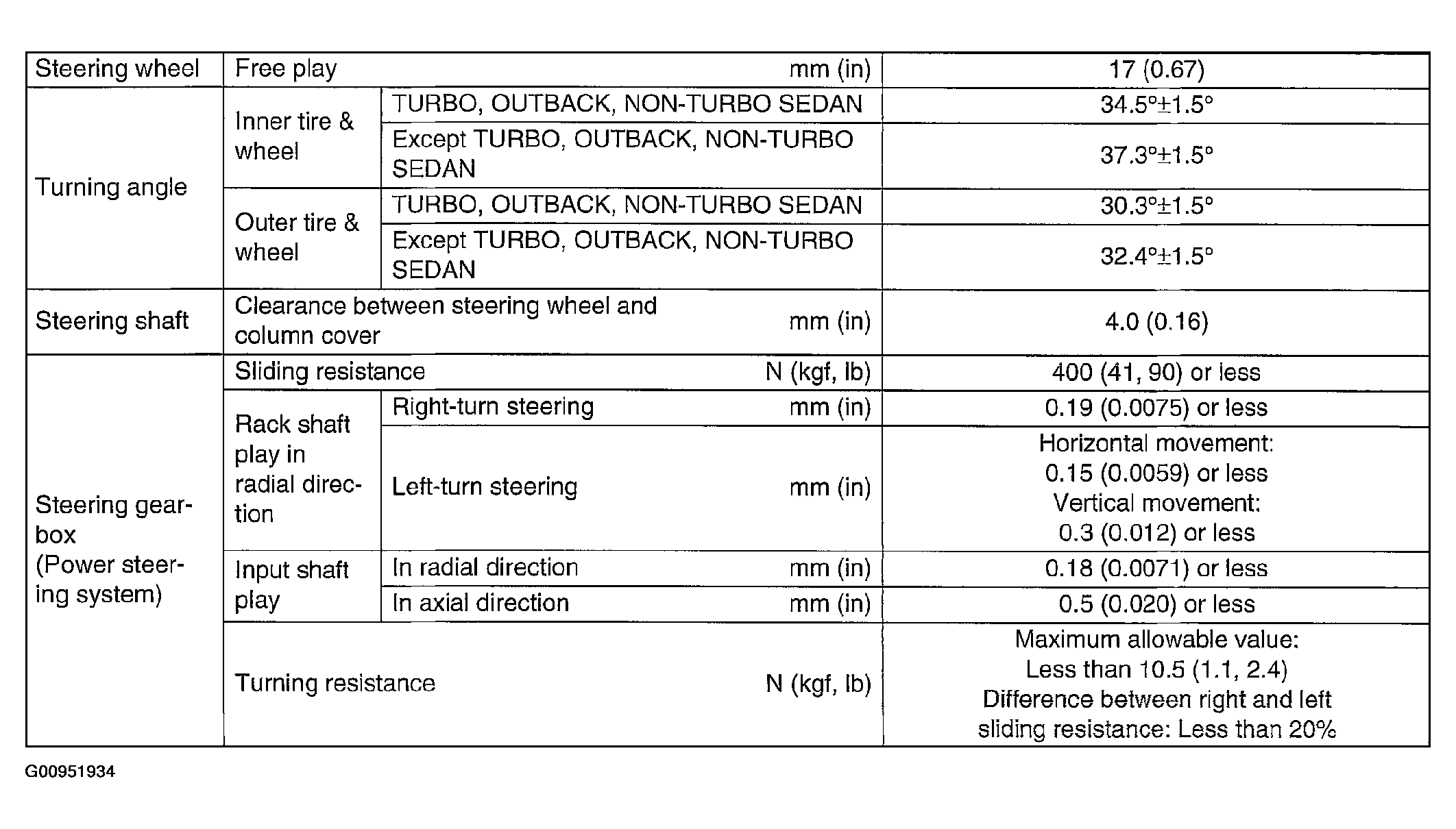

Fig 2: General Description Specifications Chart (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

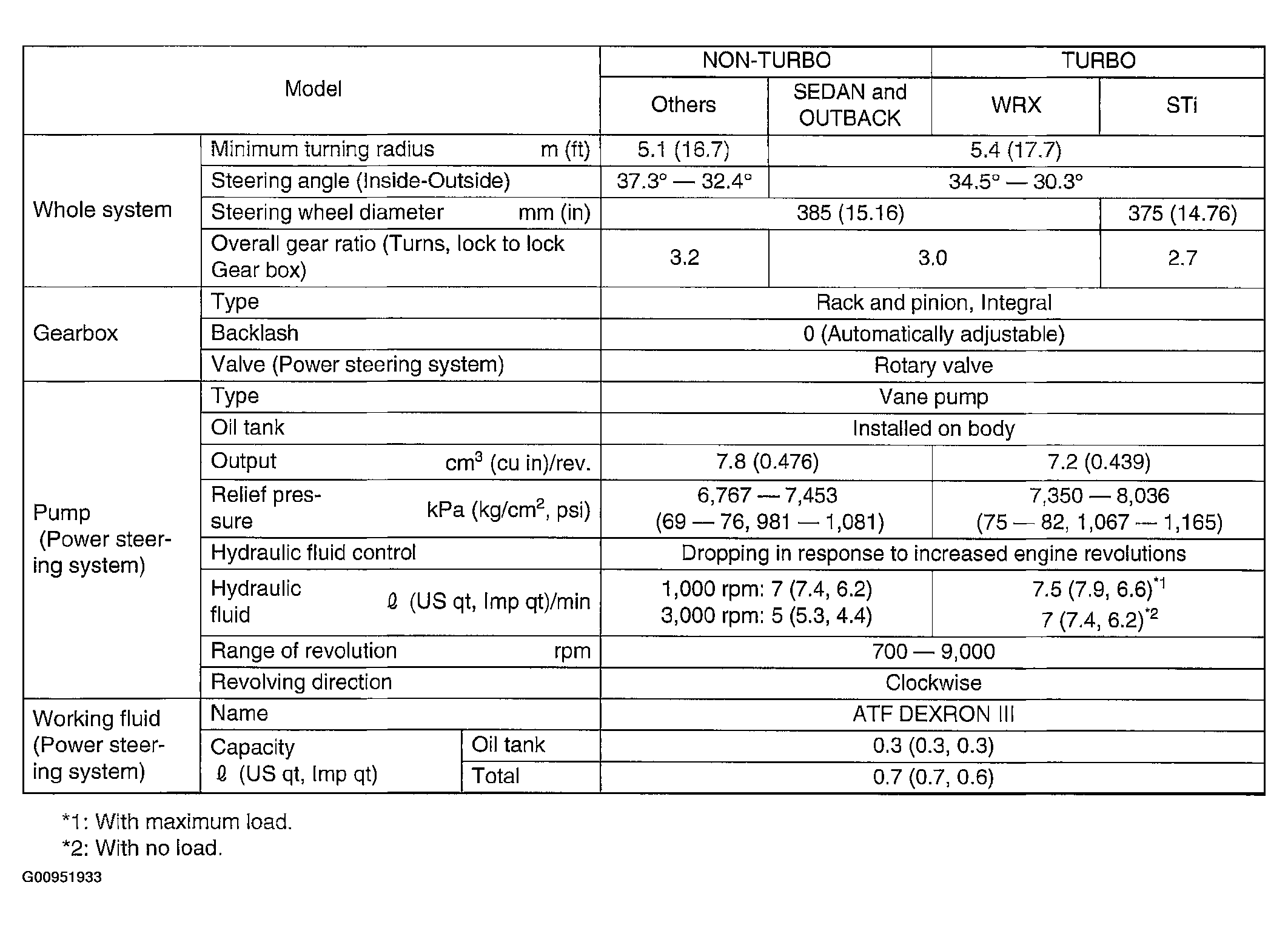

Fig 3: General Description Specifications Chart (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

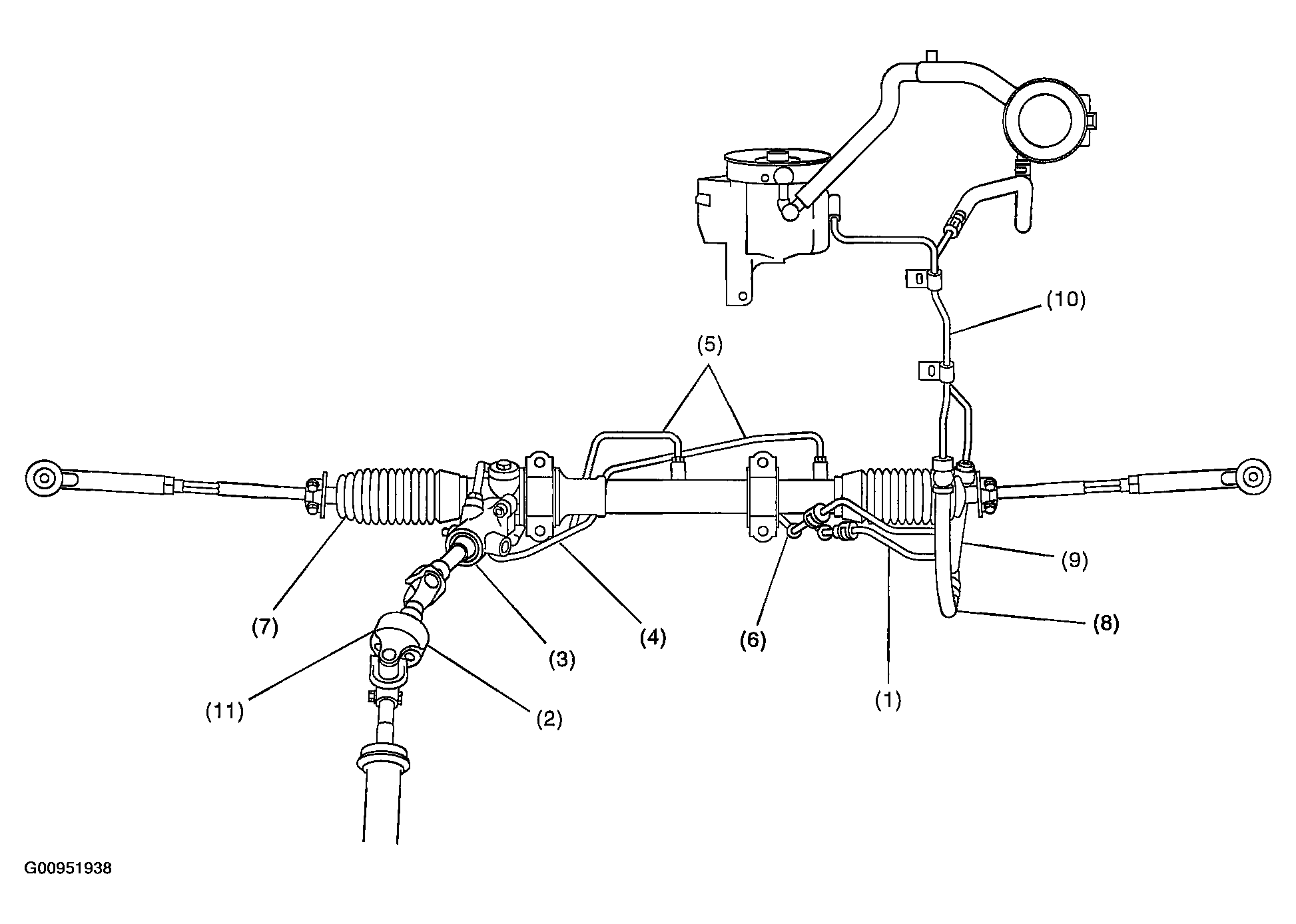

Fig 4: General Description Specifications Chart (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

Fig 5: Location Chart

Courtesy of SUBARU OF AMERICA, INC.

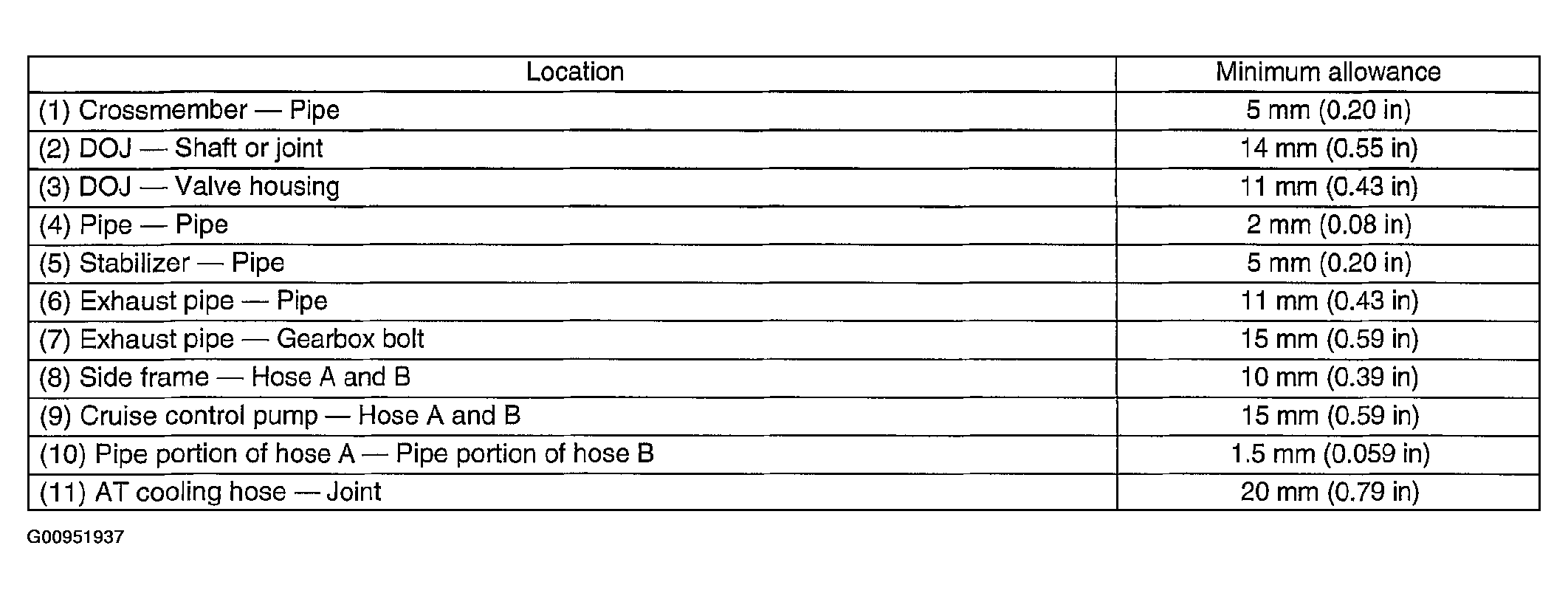

Fig 6: Locating Power Steering

Courtesy of SUBARU OF AMERICA, INC.
