Parking Switch
WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

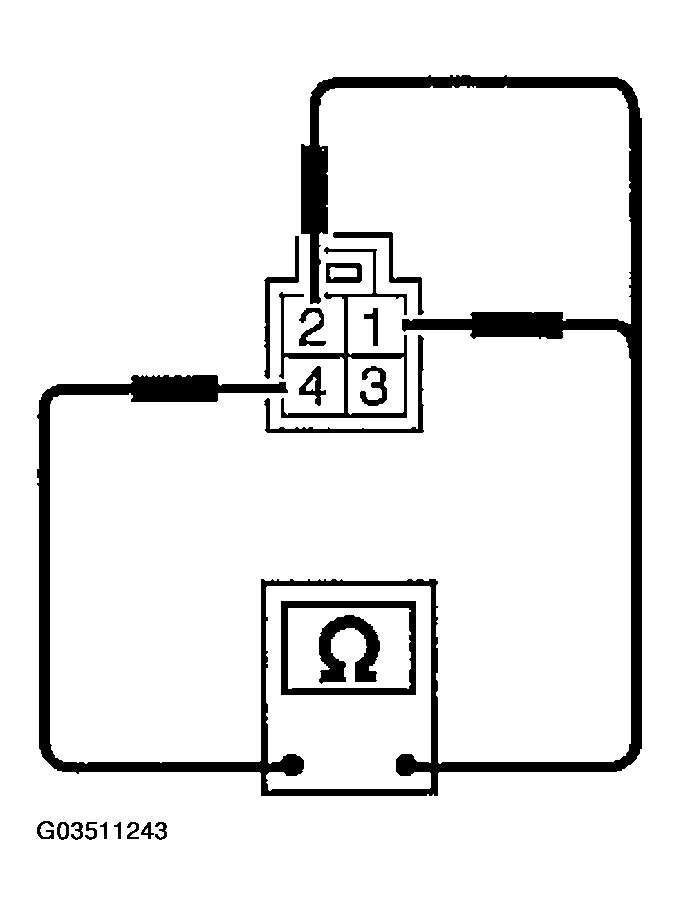

Measure the parking switch resistance.
Courtesy of SUBARU OF AMERICA, INC. PARKING SWITCH TERMINALS RESISTANCE
| Switch position |
Terminal No. |
Standard |
| OFF |
2 and 4 |
Less than 1 ohm |
| ON |
1 and 4 |
Less than 1 ohm |
