Combination Base Switch Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag module. < Ref. to DRIVER-SIDE AIR BAG MODULE . >
  2. Remove the steering wheel. < Ref. to POWER STEERING SYSTEM . >
  3. Remove the steering column cover.
  4. Remove the combination switch. < Ref. to REMOVAL  . > and < Ref. to REMOVAL . >
  5. Loosen the four screws and remove the roll connector.
  6. Loosen the three screws.

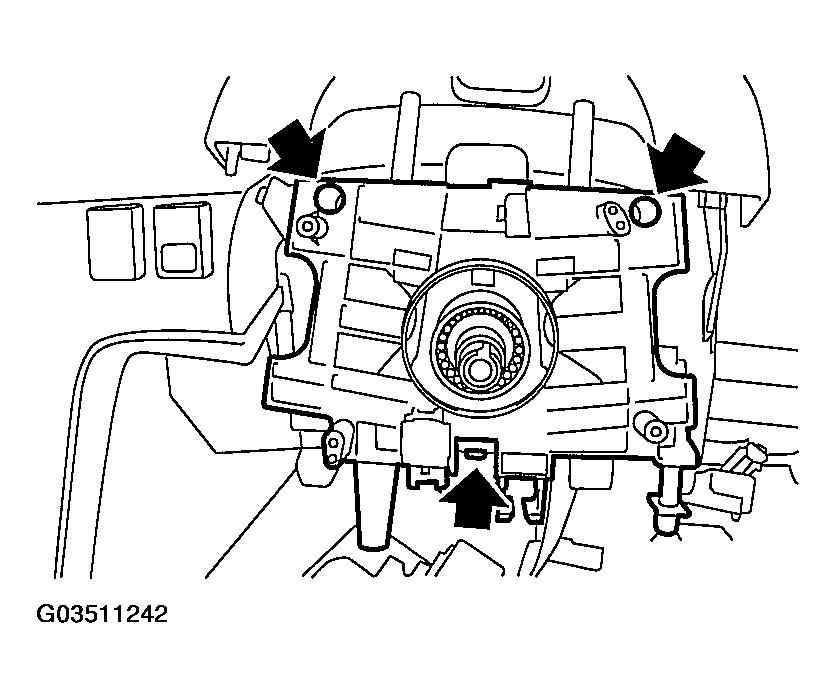

    Fig 1: Removing Combination Base Switch Assembly
    G03511242Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector and remove the combination base switch assembly.
