Removal & Installation
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect ground cable from battery.

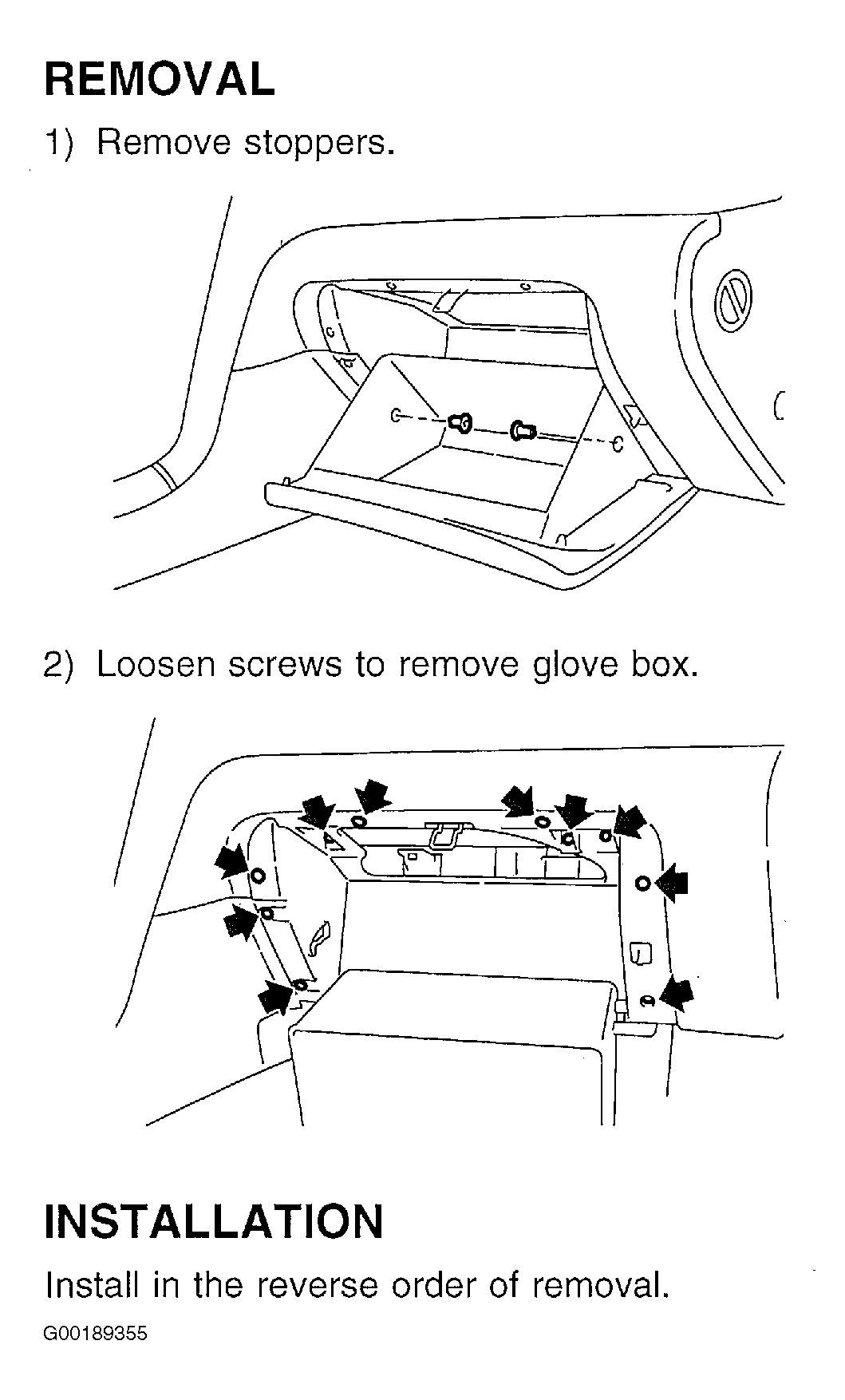

- Remove glove box. See Figure .

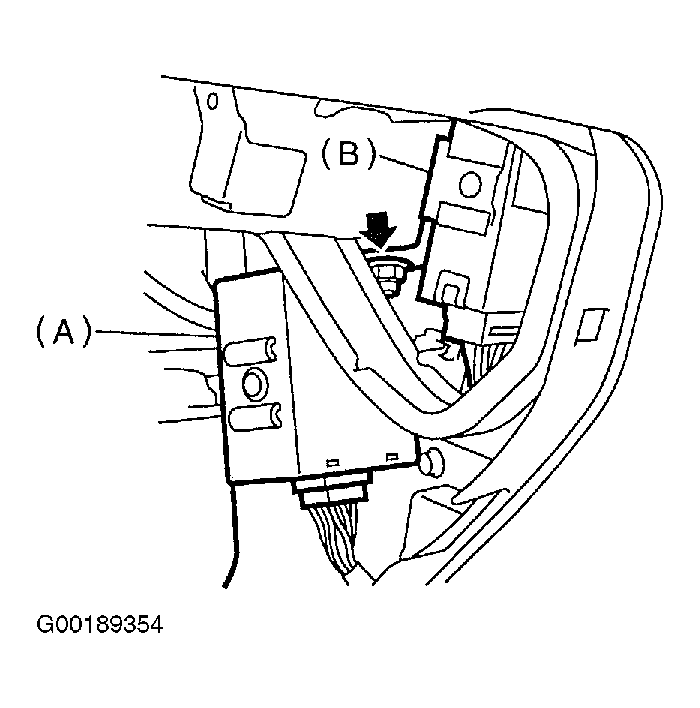

- Remove nut. Remove keyless entry control module (B) and the other electrical control module (A) while disconnecting the connector. See Fig 1 .
- Disconnect keyless entry control module and the other electrical control module.
- Install in the reverse order of the removal procedure.
