Component Locations
WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

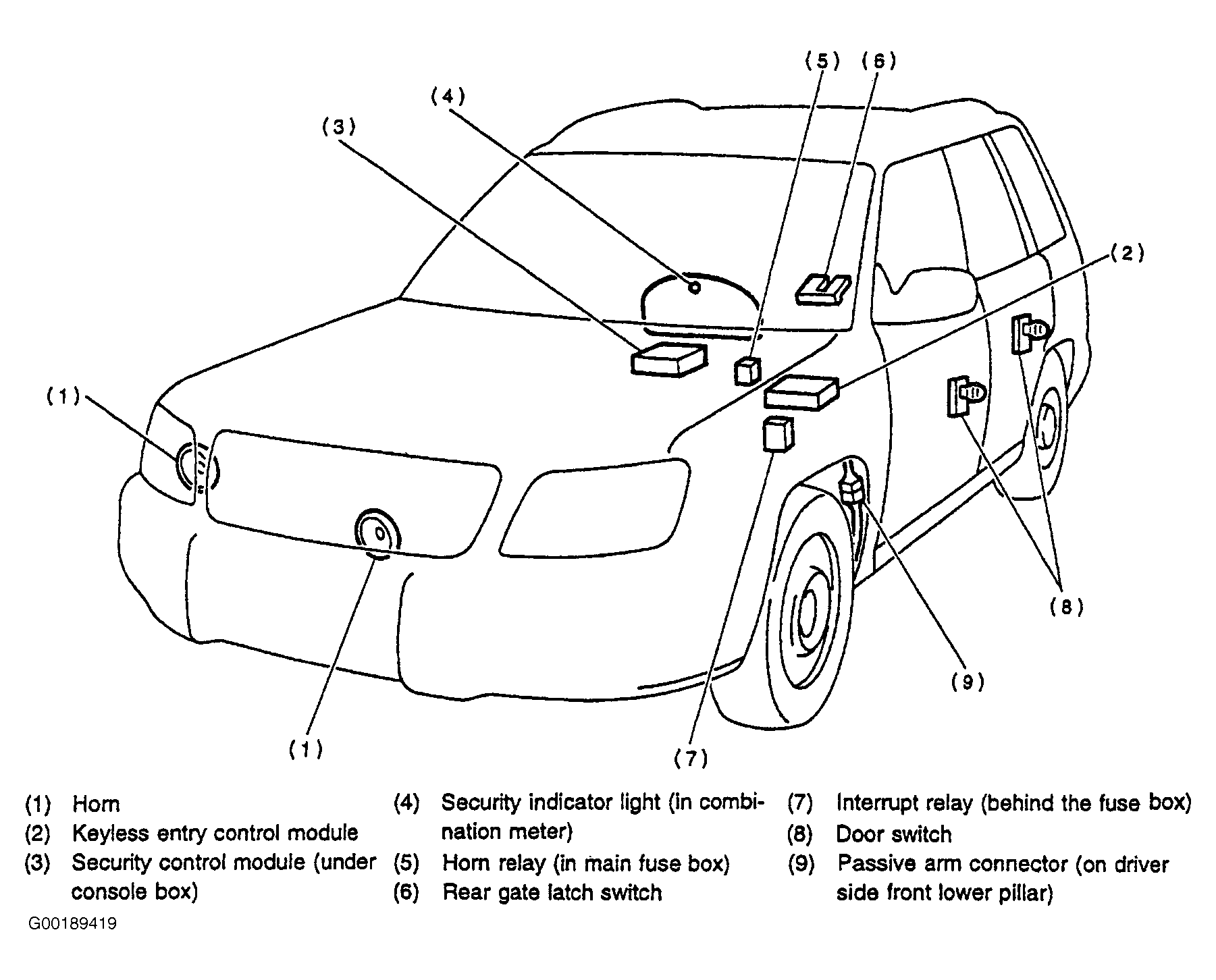

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Lock Actuators | Inside Door |
| Door Lock Switch | Inside Compartment Door Panels |
| Horn Relay | In Main Fuse Box Under Hood |
| Interrupt Relay | Behind Fuse Box, Left Side Of Engine Compartment |
| Keyless Entry Control Module | Below Left Side Of Dash |
| Main Fuse Box | Behind Dash, Left Of Steering Column |
| Passive Arm Connector | On Driver Side Front Lower Pillar, Near Wheel |
| Rear Gate Latch Switch | In Rear Gate |
| Security Control Module | Below Left Side Of Dash |
| Security Indicator Light | In Combination Meter |
To locate other components not listed in this article, refer to COMPONENT LOCATIONS in POWER DOOR LOCKS & KEYLESS ENTRY SYSTEM - FORESTER article.
