Section 34 (Instrument Panel & Warning Systems): Specifications: Speedometer
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

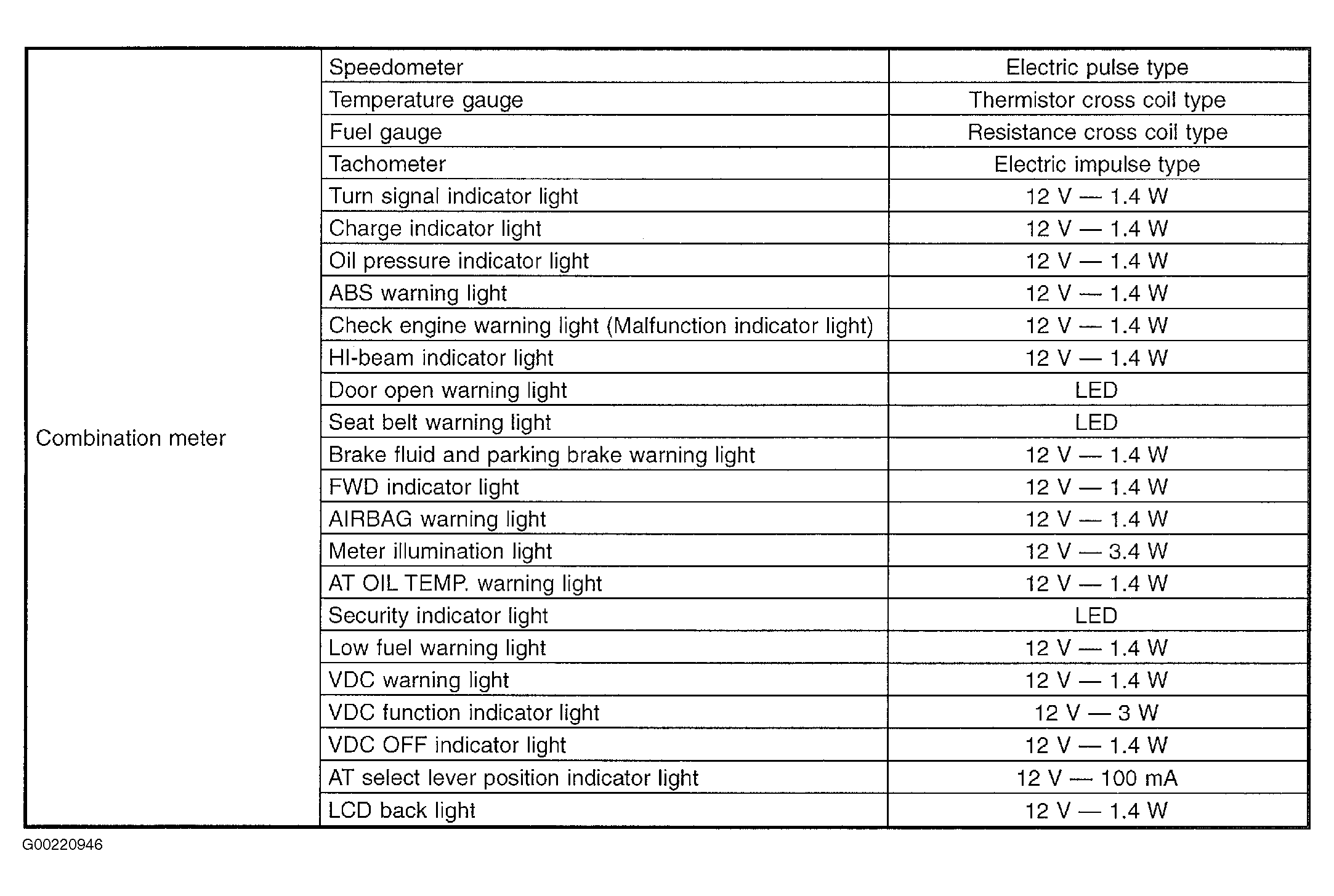

COMBINATION METER SPECIFICATION
| Application | Specification | |
|---|---|---|
| Speedometer | ||
| Type | Electric pulse type. | |
| Indication | Needle points to 37.3 miles (60 km/h) when 2,548 pulses are input per minute. | |
| Odometer | ||
| Type | Pulse count type. | |
| Display | LCD/6 digits; 0 to 999,999 mile (km). | |
| Indication | Counts up 1 mile per 4,104 pulses (1 km per 2,548 pulses). (Count down is impossible.) | |
| Tripmeter | ||
| Type | Pulse count type. | |
| Display | LCD/4 digits; 0 to 999.9 and 1,000 to 9,999 mile (km). | |
| Indication | Counts up 1 mile per 4,104 pulses (1 km per 2,548 pulses). (To change the tripmeter from A to B or B to A, push the knob momentarily. To return the tripmeter to zero indication, keep the knob pushed for more than 1 second.) | |
FUEL GAUGE
| Fuel Amount | Ohms | |
|---|---|---|
| Main Fuel Level Sensor | ||
| Full | 0.5-2.5 | |
| Half | 18.5-22.5 | |
| Empty | 52.5-54.5 | |
| Sub Fuel Level Sensor | ||
| Full | 0.5-2.5 | |
| Half | 23.6-27.6 | |
| Empty | 39.5-41.5 | |
