Select Lever: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the vehicle on the lift.
  2. Disconnect the ground terminal from battery.
  3. Move the select lever to the "N" position.
  4. Lift-up the vehicle.
  5. Remove the rear exhaust pipe and muffler.
  6. Remove the heat shield cover. (If equipped)
  7. Disconnect the cable from select lever and then remove the cable bracket.

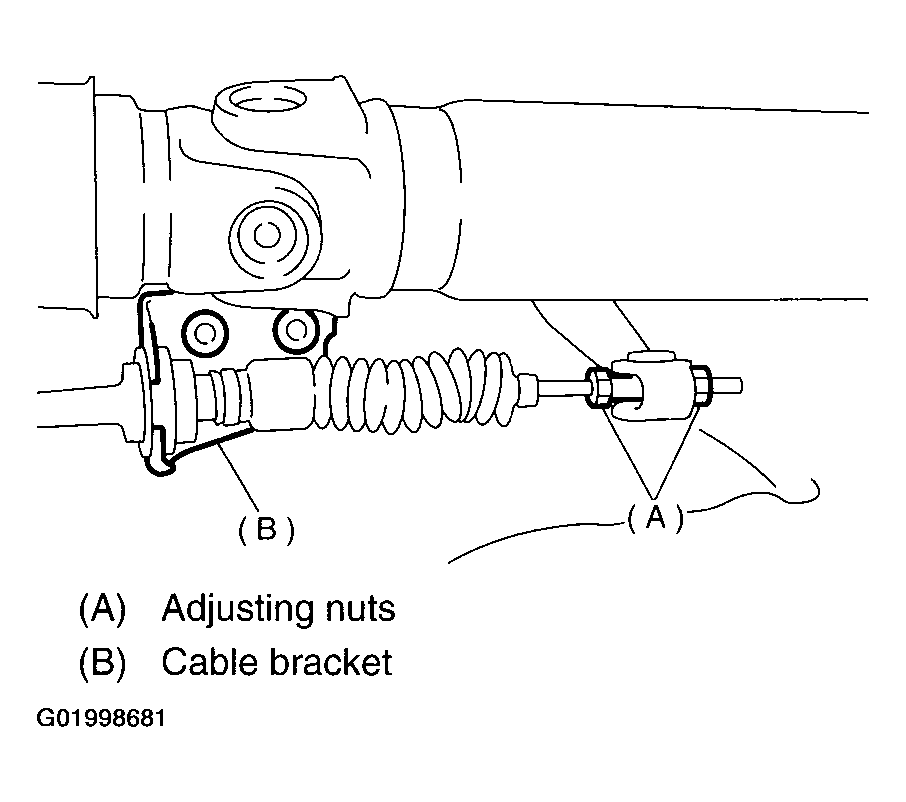

    Fig 1: Disconnecting Cable From Select Lever
    G01998681Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the console box. See CONSOLE BOX .
  10. Disconnect the connectors, then remove the four bolts to take out the select lever assembly from the body.

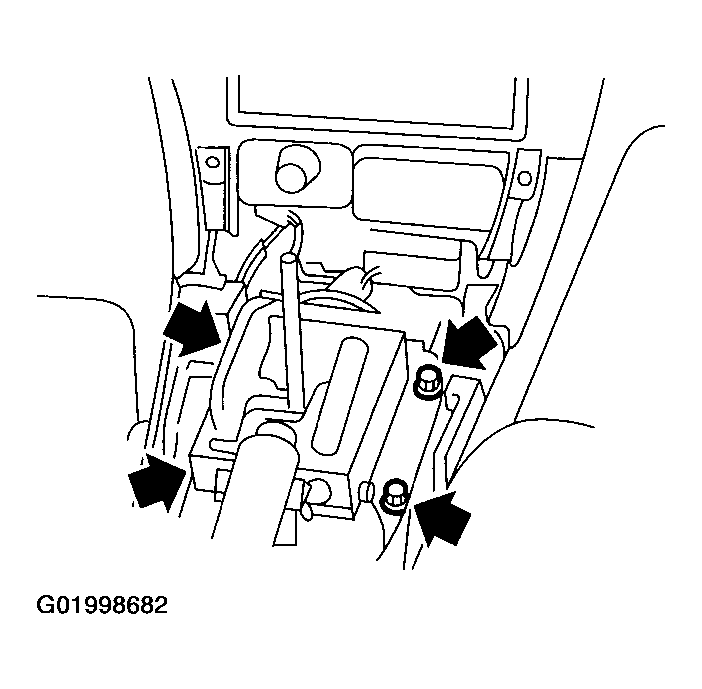

    Fig 2: Removing Four Bolts From Selector Lever
    G01998682Courtesy of SUBARU OF AMERICA, INC.
