Electrical Specification
Fig 1: Identifying Cruise Control Module I/O Signal Connector
Courtesy of SUBARU OF AMERICA, INC.

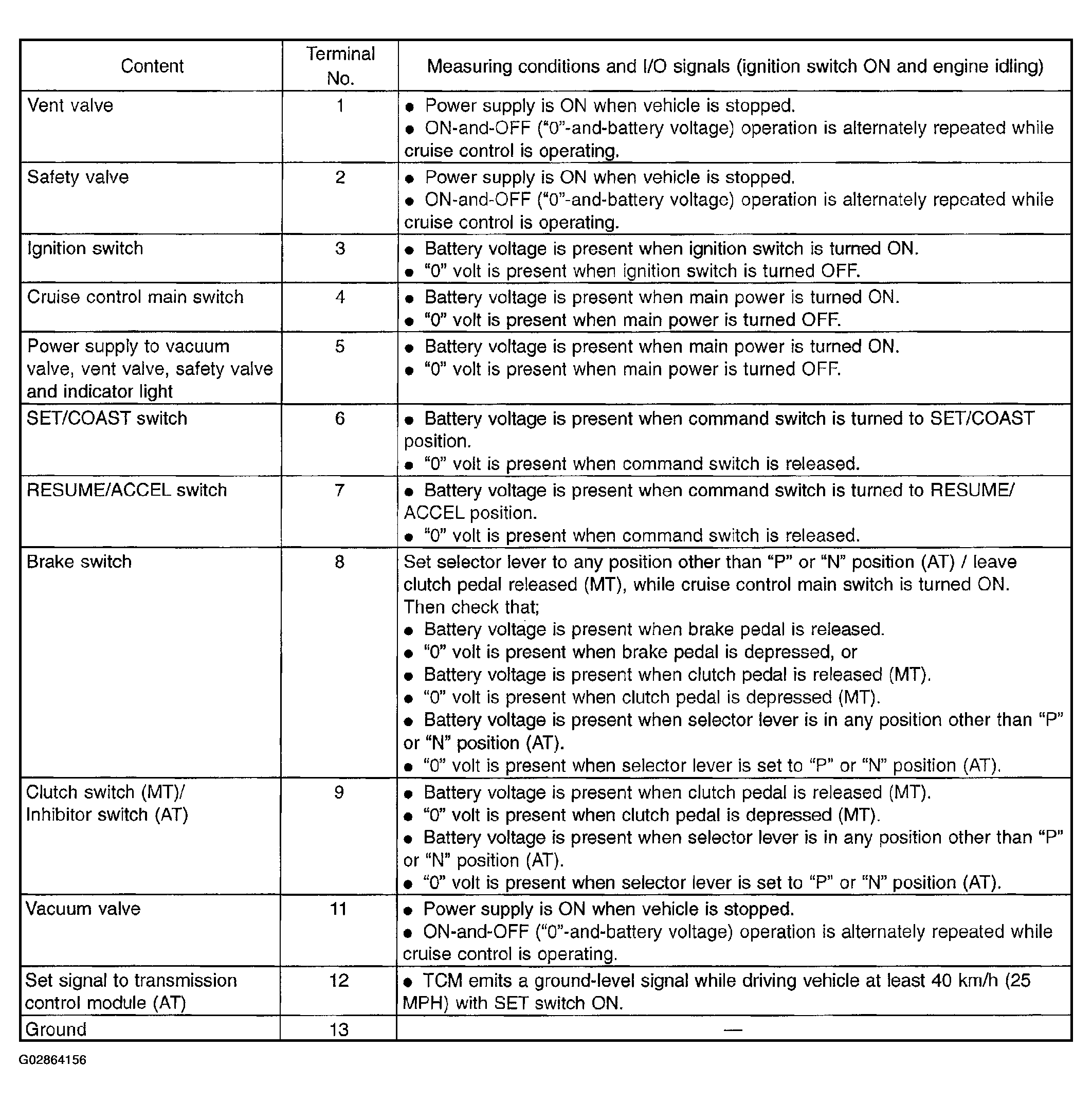

Fig 2: Cruise Control Module I/O Signal Specification Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

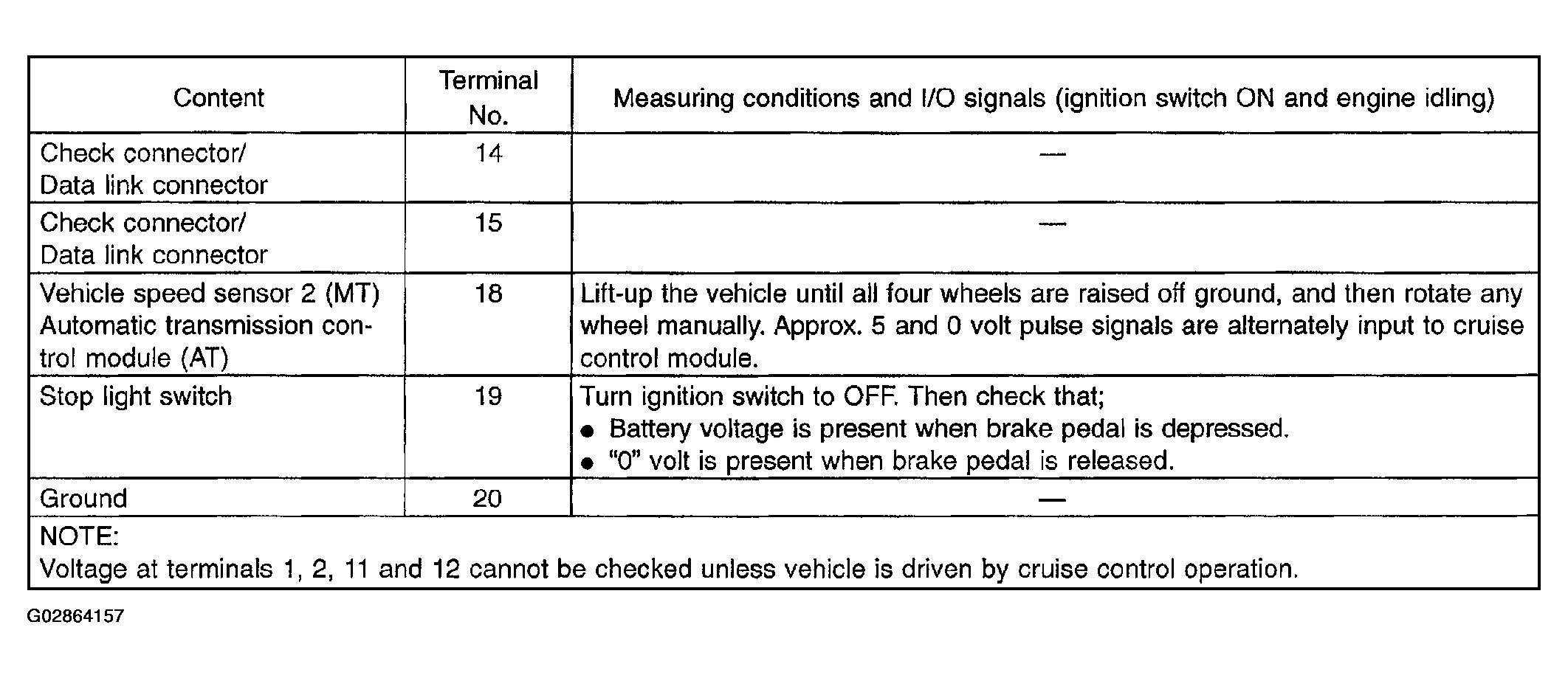

Fig 3: Cruise Control Module I/O Signal Specification Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
