Cruise Control Command: Inspection

Measure cruise control command switch resistance.

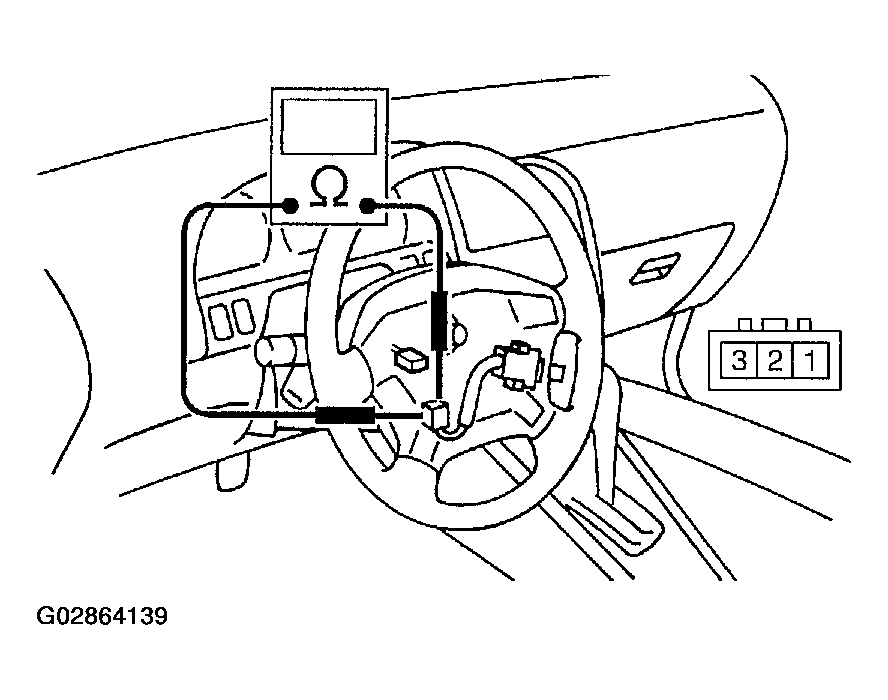

Fig 1: Measuring Cruise Control Command Switch Resistance
G02864139Courtesy of SUBARU OF AMERICA, INC.

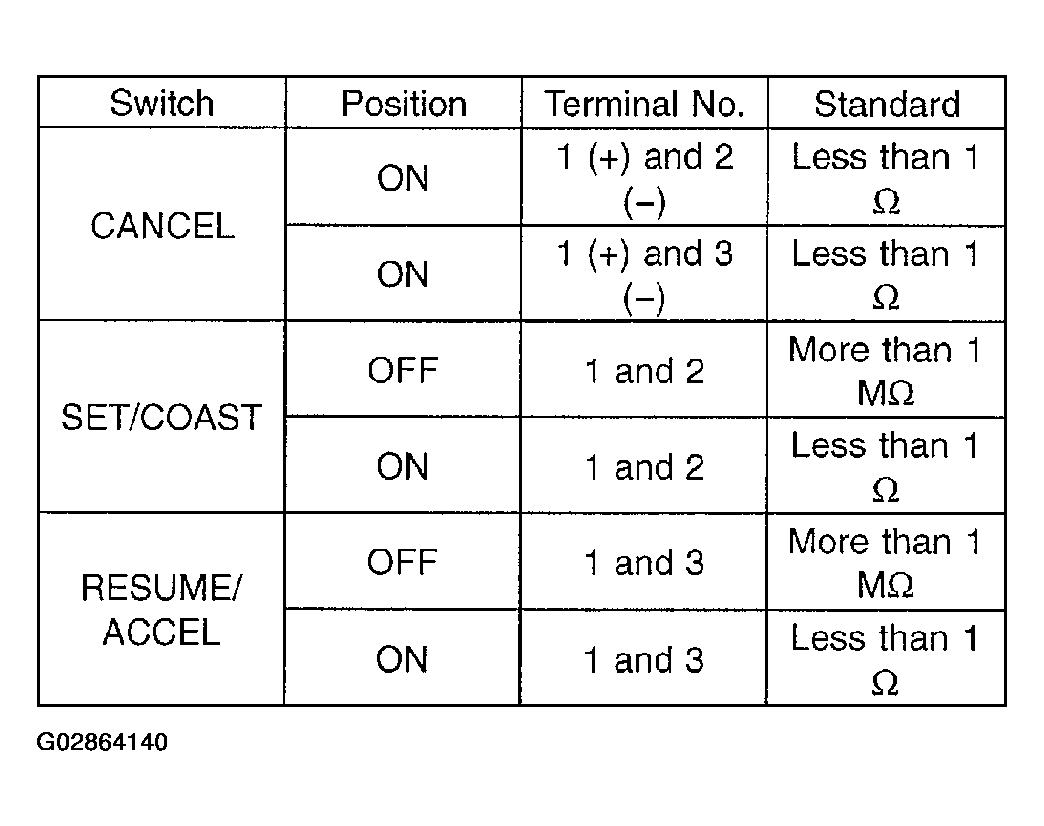

Fig 2: Cruise Control Command Switch Resistance Chart
G02864140Courtesy of SUBARU OF AMERICA, INC.

If NG, replace cruise control command switch.
