Front Hood Lock Assembly: Removal

  1. Open the hood.
  2. Remove the bolt. Remove the hood lock assembly.
  3. Remove the release cable from the lock assembly.

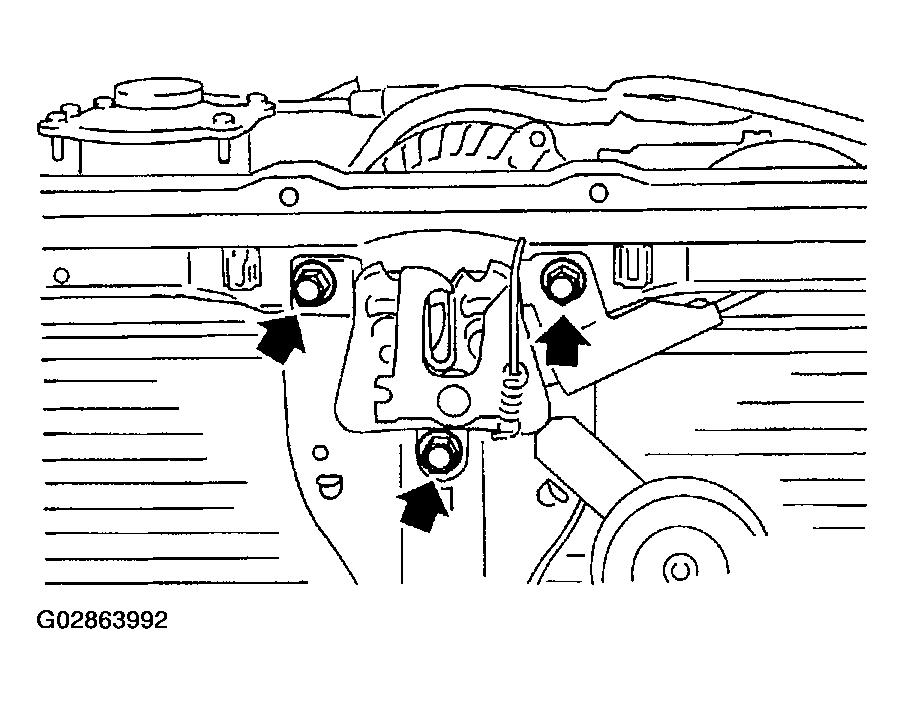

    Fig 1: Removing Front Hood Lock Assembly
    G02863992Courtesy of SUBARU OF AMERICA, INC.
