Check Interrupt Relay Circuit

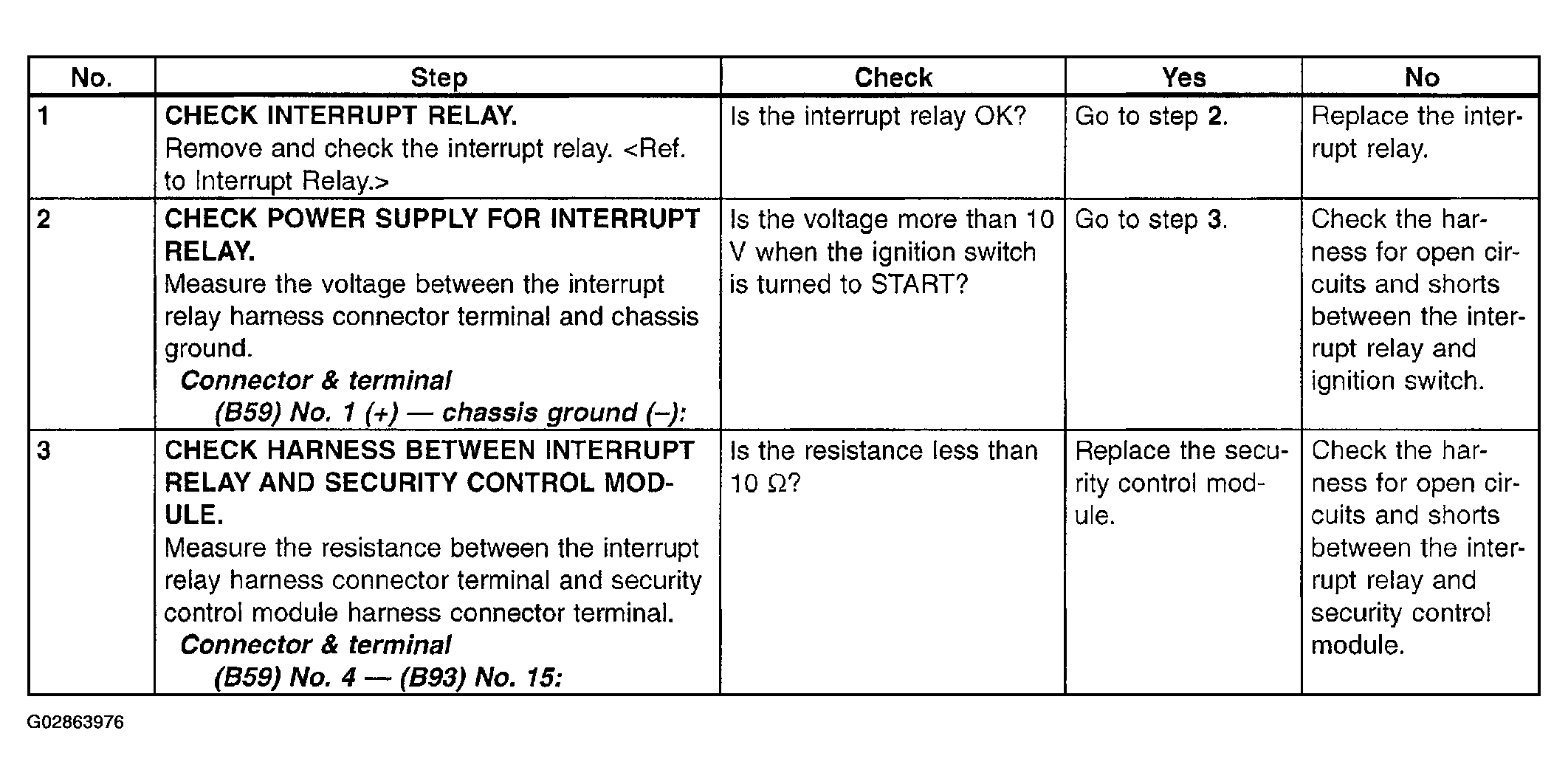

Fig 1: Checking Interrupt Relay Circuit Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
