Fuel Gauge: Specification

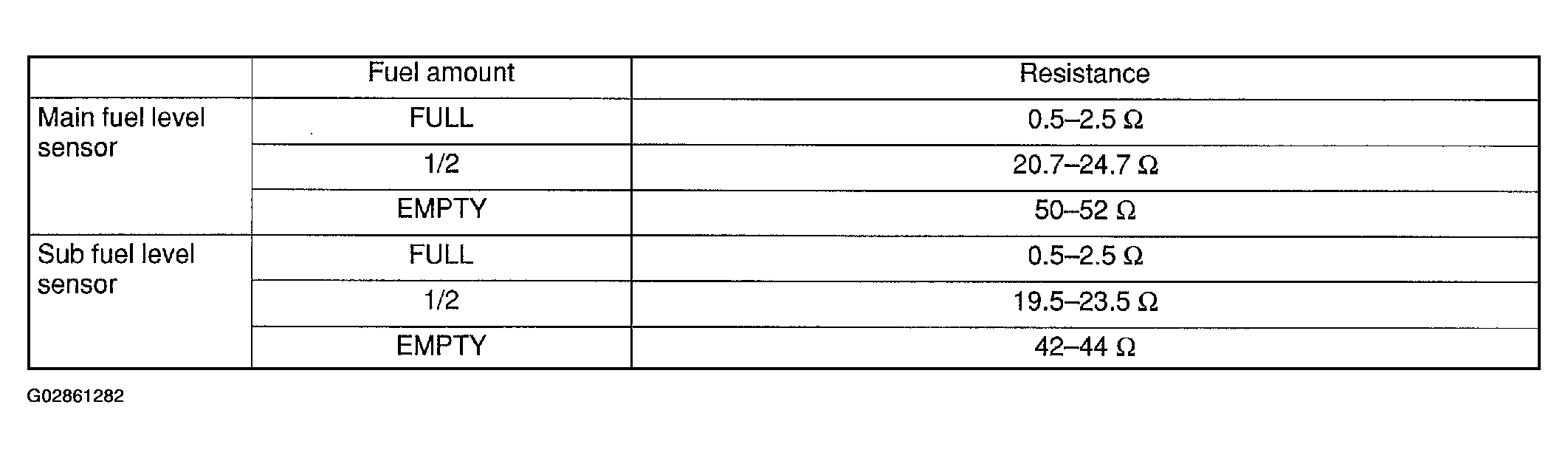

Fig 1: Main Fuel Level & Sub-Fuel Level Sensors Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
