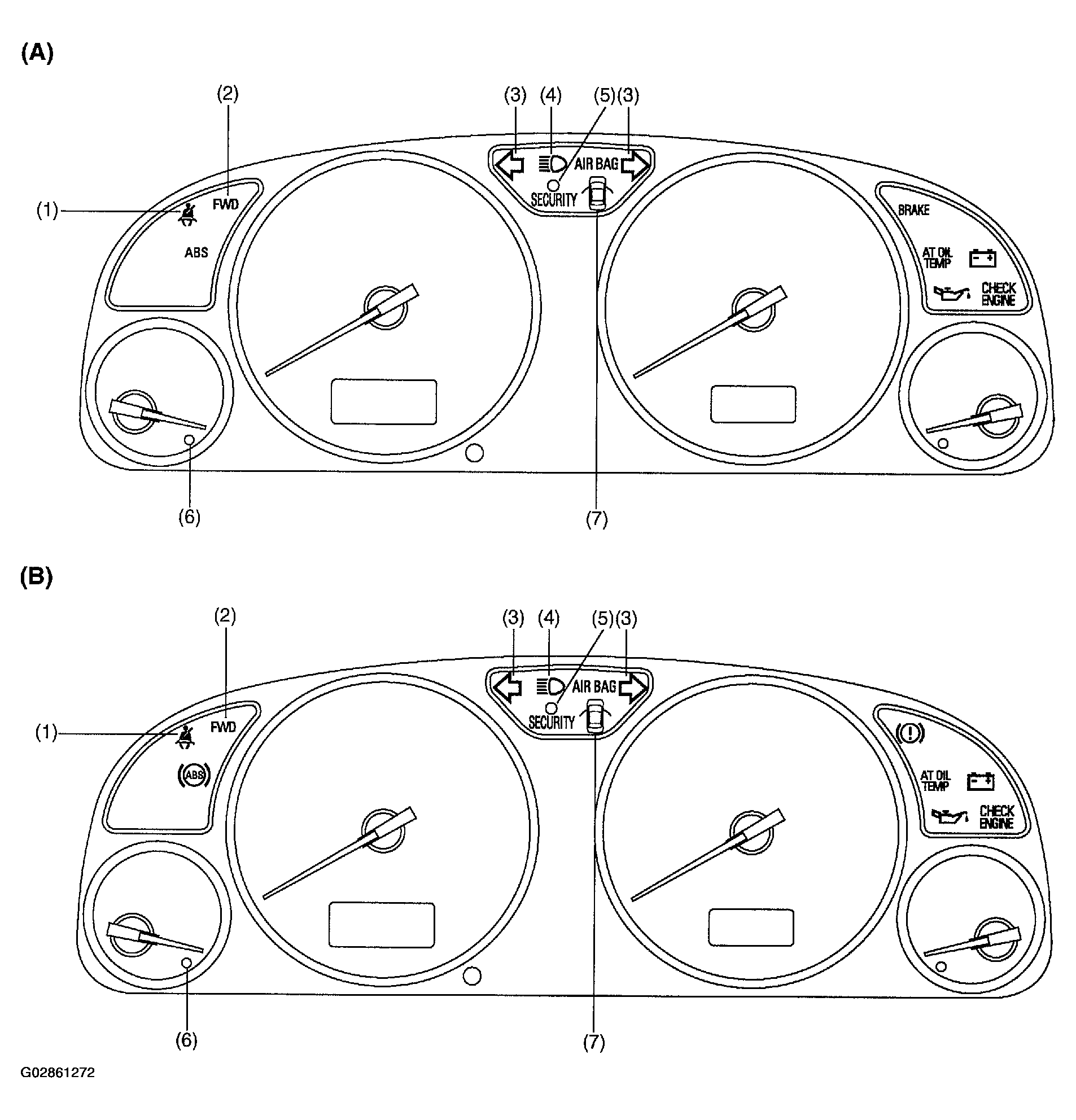

Telltale (Graphic Monitor)

This light stays illuminated for about 6 seconds after the ignition switch has been turned ON.

This light illuminates when the drive mode is changed from AWD to FWD (with the fuse installed in the FWD switch).

This light blinks in unison with the corresponding turn signal lights when the turn signal switch is operated.

This light illuminates when the headlights are in the high-beam position.

This light illuminates when the security system is armed.

This light illuminates when the quantity of the fuel remaining in the fuel tank has decreased to 9.0 liters (2.3 US gal, 1.9 lmp gal) or smaller.

This light illuminated when one or more doors and/or rear gate are not completely closed.

If everything is normal, the telltales should be ON, OFF or in other states as shown below according to ignition switch positions.

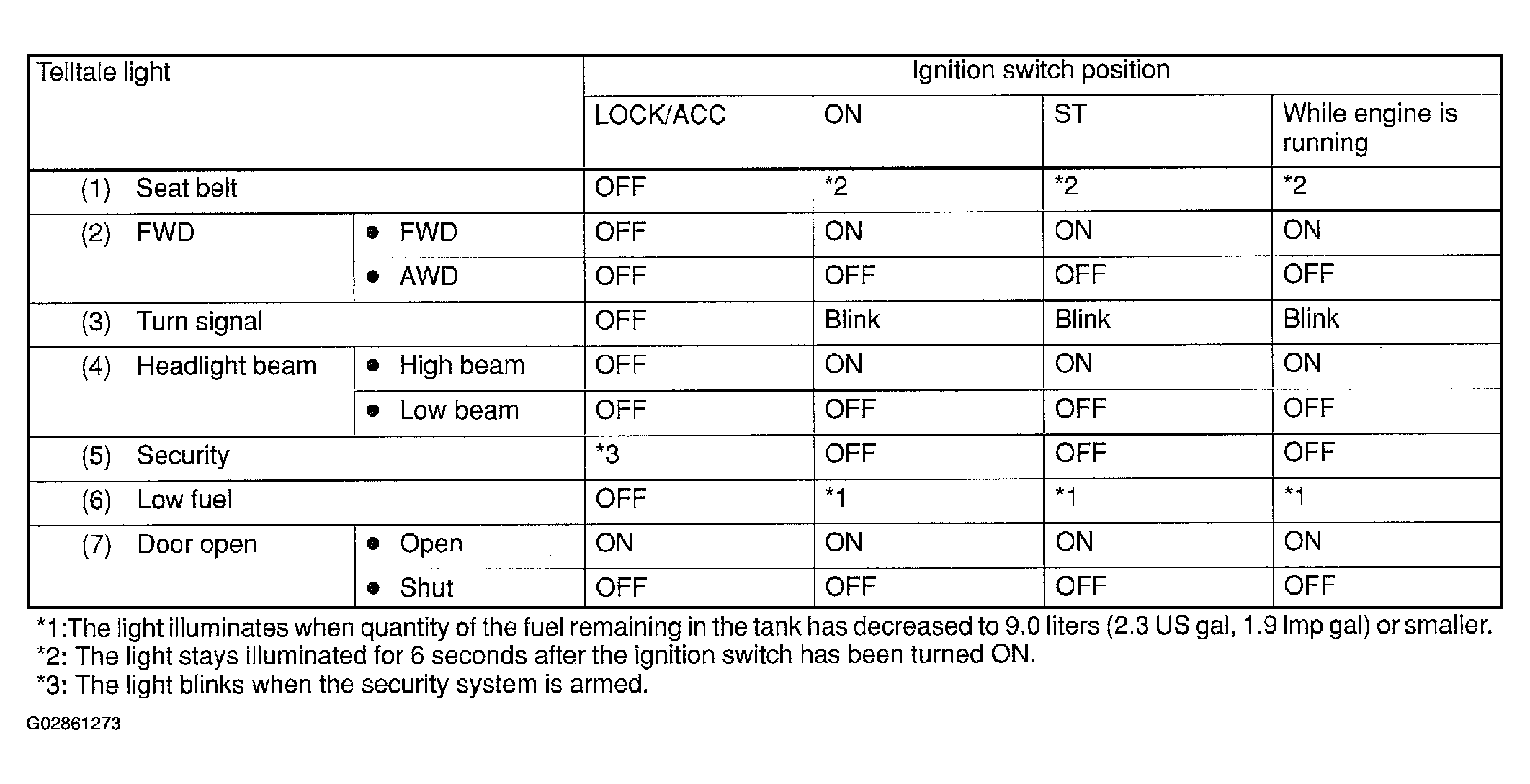

Fig 2: Telltale (Graphic Monitor): According To Ignition Switch Positions (Vehicle In Normal State) Chart

Courtesy of SUBARU OF AMERICA, INC.
